Loops 6 Zone Matrix Bluetooth Mixer Amplifier Amp 12 Speaker System Switch Splitter PA

6 Zone (30W per zone) Matrix Switcher Amplifier, Speakers & Cable System.

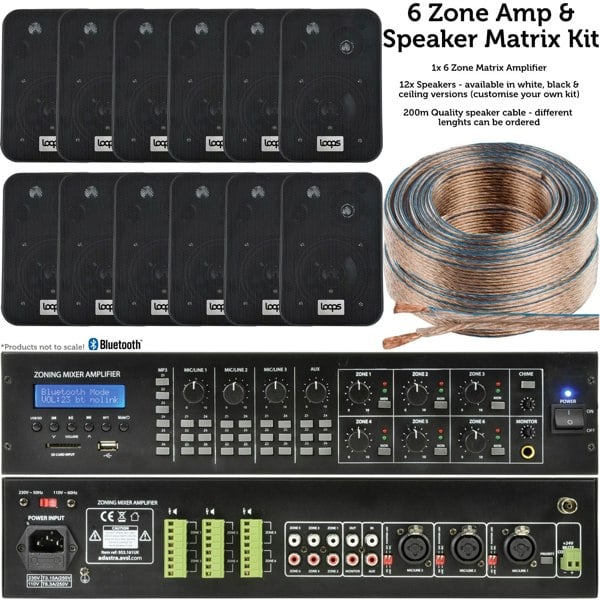

What’s Included?

1x 6 Zone Matrix Amplififer

12x Wall/Ceiling Speakers

200m Speaker Cable (more or less can be supplied if required)

PLEASE NOTE – If you plan to use as part of a 100V line system, make sure the speakers you are using do not take more 90% of the power limit of each zone (30W). For example, if an amplifier was rated to 100W, your speakers should not take more than a total of 90W combined (per zone).

You will also need to upgrade the speaker cable to double insulated cable. The cable supplied is only suitable for the low impedance output of the amplifier. Please feel free to get in touch if you would like any more information.

Overview:

This professional quality mixer amplifier has been designed to cut down the amount of equipment that you need to buy in total. It has 5x inputs and 6x 30W zoned outputs that can be used with either 8Ohm stereo speakers or 100V line speakers. Thanks to the matrix technology that has been installed into this unit, our mixer amplifier is incredibly versatile… For example, you could have a CD player linked to Zone 1, 3 & 4, an iPod connected via Bluetooth to Zone 5 and any other audio inputs connected to the other zones. You can then change what inputs and zones are linked together at the push of a button on the front of the amp (in any combination you like without having to unplug anything).

Each individual zone has its own volume control allowing you to lower or raise the volume of any Zone. This also works when the same input is connected to more than 1 Zone. For example, if you had an iPod connected to your front room (Zone 1) and a bedroom (Zone 2), you could alter the volume levels of the front room (Zone 1) without effecting the volume levels in your bedroom (Zone 2). This cost saving feature eliminates the cost of purchasing individual volume controls for different rooms.

This high quality install kit is perfect for households, small & big businesses, bars, restaurants, offices and much more. 12 speakers are supplied and you have choice of black wall mounted speakers, white wall mounted speakers and white ceiling speakers. You can also have these in any combination you require so if you want a pair of moisture resistant ceiling speakers in your bathroom, black wall speakers in your bedroom and white downstairs, just say the word and we will swap them around for you at no extra cost.

Further Information – system customization:

This kit will not be for everyone, we understand that all installations aren’t the same and you may require more or less speakers/cable. Please feel free to give us a call 0161 408 1083 and we will be more than happy to give you a price on a custom system best suited for you.

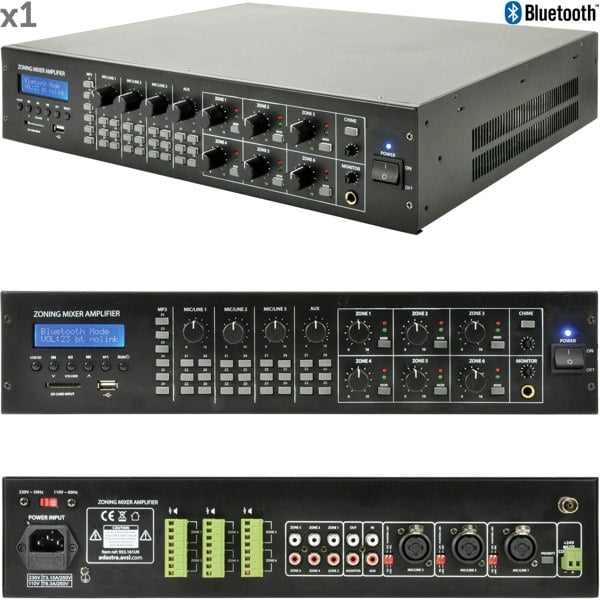

Amplifier Features:

5 selectable line inputs

1x – 2 RCA/Phono (AUX) input

3x – Combined XLR + 6.35mm Mic/Line inputs

1x Media Player input (labelled MP3) – Bluetooth connection + USB & SD card

6x 30W screw terminal low impedance + 100V speaker outputs (8Ohm and Common)

2 RCA/Phono (red & white) Output

Screw terminal 100V speaker outputs

6x Mono RCA Zone outputs

6x Zone volume controls

AUX volume control

Mic/Line volume controls

Chime and paging functions

Local 6.35mm monitor output

Dip switches for phantom power and vox override

Master volume control

High clarity LED display

External 24V DC power option

Supplied with rack-mount ears

2U 19" rack mountable

Amplifier Technical information:

Power Supply – 230V AC, 50Hz or 24V DC screw terminals (cable supplied)

Power output RMS per zone 30W

Phantom power - +20V (switchable to each XLR input)

THD - <0.76% @ 1kHz

Dimensions – 433mm x 89mm x 403mm (WxHxD)

Weight – 13KG

Black Wall Speaker technical information:

PLEASE NOTE – If you want to swap out these for a different speaker, get in touch and we will provide all of the details for the alternative speakers.

Woofer - 7.5cm (3”) Polypropylene

Tweeter - 5cm (2") Polymer HF unit

Power max. : 8 Ohms - 60W

Power rms : 8 Ohms - 30W

Colour - Black

Frequency response - 120Hz - 20kHz

100V Tappings - 1.5/3/6W & 8 Ohms

Dimensions - 106 x 153 x 98mm

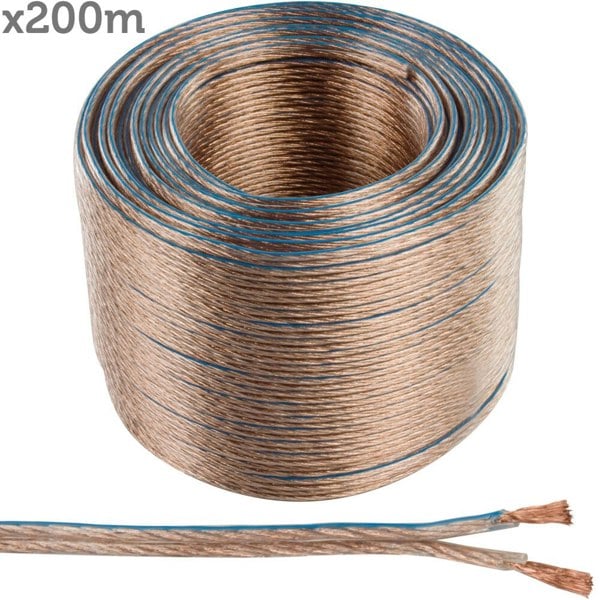

Speaker cable technical information:

Blue line for polarity - easy connectivity (transparent outer insulation).

99 Strands with a 0.14mm diameter per core.

Area per core = 1.5mm² (AWG 16 Approx).

CCA (copper clad aluminium)

Outer diameter per core 3.1mm

Width of 2 cores combined 6.5mm (can be easily stripped apart).
