Loops 800W Bluetooth Sound System 4x Black 200W Wall Speaker Amp Wireless Microphones

Premium HiFi Amp & Speaker Kit Perfect for Karaoke & Public Speaking (Assemblies & Meetings)

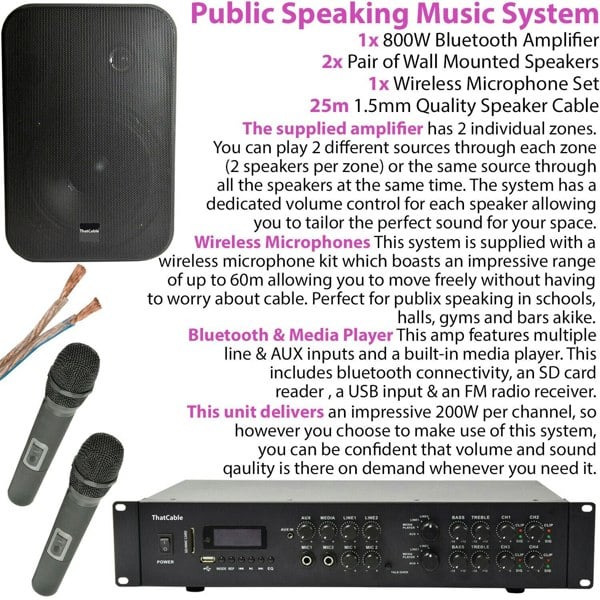

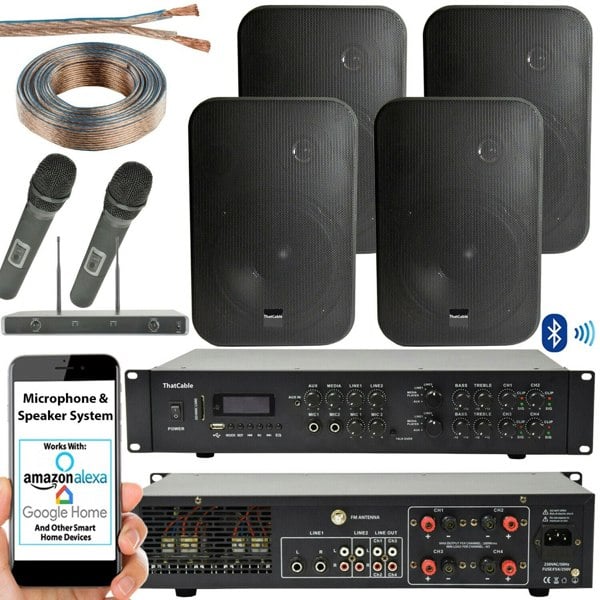

Kit Contents:

1x 800W (4x 200W) 2 Zone Bluetooth Amplifier 4x PREMIUM 6.5” 200W Black Wall Mounted Speakers & Brackets
2x Wireless UHF Handheld Microphones & Receiver System25m - 1.5mm Quality Speaker Cable

Overview:

Designed to be installed in a bar, restaurant, assembly hall, warehouse or simply at home, this kit allows you to play music through the supplied 4x 200W wall speakers & speaker cable. The system delivers professional audio and volume to match it if you require it. Full range audio frequency levels are impressive and consistent, guaranteeing an unparalleled listening experience for the price… Every time!

The speakers in this kit can be wall mounted and are supplied with adjustable wall mounting brackets. Matrix Mixer – This system has 4 channels (speaker outputs) and 2 input selectors. Channels 1 & 2 can look at one audio source… such as Bluetooth. Channels 3 & 4 can look at another… such as a line input (TV). However, you could also play the same thing across all channels if you wish.

For example… This is perfect for playing audio from your TV in your living room & music from your phone in the kitchen. You can then combine all zones to play music in all rooms if you have a party! Each channel also has its own volume control so that’s 4 zones that you can control without having to purchase additional volume units. Unlike most conventional wired microphone sets, this system is supplied with 2x wireless microphones.

They are UHF (ultra high frequency), boast impressive ranges of up to 60m and don’t suffer from interference which can be a common problem of VHF microphones. Simply connect the supplier microphone receiver to the amplifier and you can then walk, run or even dance and talk at your leisure without having to worry about any wires & cables. Below are a few highlighted features that this Amplifier has from a list of many: Power – This amplifier boasts an impressive 100W RMS per channel @ 8Ohm and 200W RMS per channel @ 4Ohm and is capable of handling any domestic environment and most commercial environments (depending on the nature of the install).

Bluetooth & Media Player – This amplifier features multiple Line & AUX inputs like most amplifiers, but it also has a built-in media player. This includes wireless Bluetooth connectivity for your mobile / tablets, a USB reader, an SD card reader & FM radio receiver. The Bluetooth function on this amplifier is also compatible with the Amazon Echo & Google Home devices.

Independent Volume Controls – There are 4 channels (speaker outputs) on this amplifier and each one has a volume control, perfect if you need one zone to be a little louder than another or completely turned off. Microphone inputs with talk over function – This amplifier has 2 microphone inputs on the front (the wireless receiver simply connects to one of these, making it perfect for use in bars, pubs, clubs, restaurants, shops and even at home as a karaoke system. Each microphone has its own volume control and the amplifier also has a talk over function that will automatically drop the volume of your music so that your voice can be heard loud and clear (this function can be turned on/off).

Remote Control – Each amplifier is supplied with a remote control so you can control certain functions without having to touch the amplifier (perfect for businesses if you don’t want staff to tamper with the amp).

Features:

1x – Bluetooth receiver (wireless) – version 2.3

2x – 2 RCA/Phono (red & white) inputs

1x – 2x 6.35mm (L & R) mono inputs FM radio receiver SD card input USB input AUX 3.5mm Stereo input

4x – spring terminal / speaker cable (red & black) outputs

2x – 2 RCA Line Outputs (single RCA for all channels) 19” Data Cabinet Ear Mounts supplied (2U) Durable metal body with breathable air vents built in.

UK mains power cable supplied

Technical Specification:

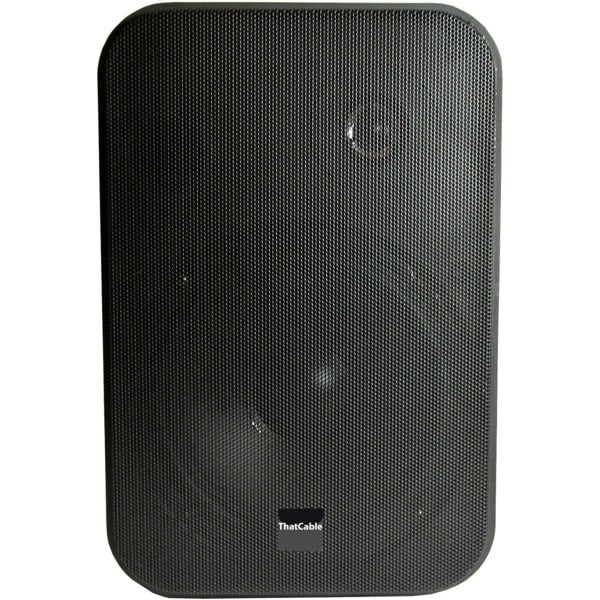

AMPLIFIER: Power Supply – 230V AC, 50Hz IEC UK mains plug Power output RMS per channel at 4 Ohms - 200W (per channel) Power output RMS per channel at 8 Ohms - 100W (per channel) Bluetooth Range – 10m Thermal cut-out, over-current, over-voltage & short-circuit protection Dynamic Range – 92dB Input impedance – 20k Ohms (balanced), 10k Ohms (unbalanced) Frequency Response – 20Hz - 20kHz ±0.5dB Class D Amplifier Dimensions – 482mm x 88mm x 240mm (WxHxD) Weight – 6000g SPEAKERS: Construction – Housed in a rugged ABS plastic casing with a subtle, yet durable mesh grille, these speakers will look stylish & discrete in most environments. Each enclosure contains a high quality 1/2” balanced polymer tweeter and a 6.5” surround woofer to produce a fantastic sound for such a compact speaker. 2-Way Speakers Speaker Cable Connections Max Power – 200w Power RMS – 100w Sensitivity (1m, 1W) – 90DB Frequency Response – 40Hz-20kHz Impedance – 8 ohms

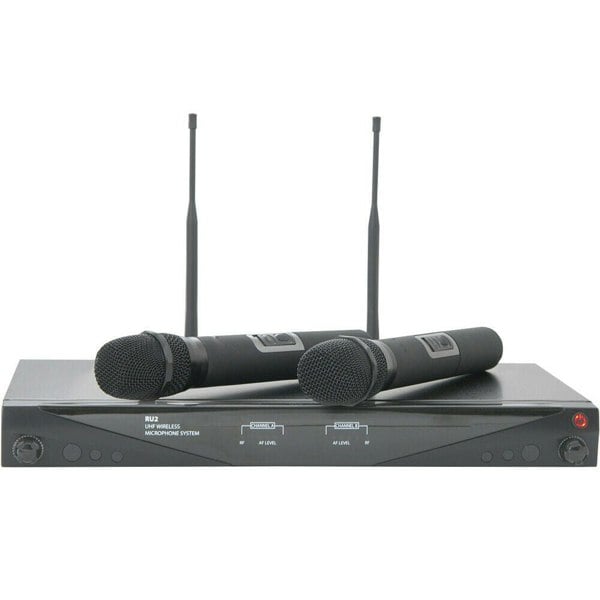

WIRELESS MICROPHONE KIT:

Receiver Hub 2x independent volume controls Channel A antenna & antenna connection (TNC connection) Channel B antenna & antenna connection (TNC connection) Combined channel mixer output (6.35mm female jack) Channel A balanced XLR male output Channel B balanced XLR male output Supplied with 19” rack mount ears with antenna adapters for front antenna mounting sleek and stylish design Power supply - 12 - 18Vdc 350mA adaptor (supplied) Carrier frequency - 863.8MHz + 864.8MHz Stability – 10PPM S/N ratio – 105dB THD - <0.5% @ 1KHz Image rejection – 85dB typical Output impedance – 2.2K Ohms Dimensions – 483mm x 44mm x 225mm (WxHxD) Weight – 2.15KG

Handheld Microphone Batteries included 60m range On/Off/Mute switch Solid construction high quality dynamic capsule for crystal clear vocal production Dimensions – 243mm x 48mmØ

SPEAKER CABLE: Red line for polarity - easy connectivity (transparent outer insulation). 99 Strands with a 0.14mm diameter per core. Area per core = 1.5mm² (AWG 16 Approx). CCA (copper clad aluminium) Outer diameter per core 3.1mm Width of 2 cores combined 6.5mm (can be easily stripped apart). Further Information

How to install: Installation is quick and easy. Take 1 speaker and run this into “channel 1” of the amplifier. You can then repeat this process with the other 3 channels on the amplifier. You will end up with 1 speaker connected to each channel and this is called wiring in stereo. Channel 1 & 3 will transmit the left audio signal & Channels 2 & 4 will transmit the right audio signal. You can then connect the microphones to the mic 1 connection on the front of the unit using the supplied cable. If you think that you need any other accessories or more cable, please get in touch, we can create and supply custom speaker kit bundles perfect for almost any installation.
