Loops 800W Bluetooth Sound System 8x 200W Black Wall Speaker 4 Zone Matrix Amplifier

Premium HiFi Amp & Speaker Kit

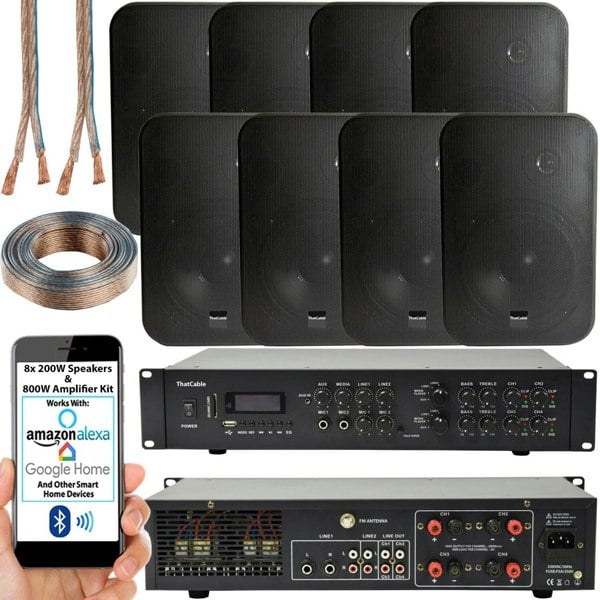

Kit Contents:

1x 800W (4x 200W) Bluetooth Amplifier

8x PREMIUM 6.5” 200W Black Wall Mounted Speakers & Brackets

50m - 1.5mm Quality Speaker Cable

Overview:

Designed to be installed in a bar, restaurant, pub environment or simply at home, this kit allows you to play music through the supplied 8x 200W wall speakers & speaker cable. The system delivers professional audio and volume to match it if you require it. Full range audio frequency levels are impressive and consistent, guaranteeing an unparalleled listening experience for the price… Every time! The speakers in this kit can be wall mounted and are supplied with adjustable wall mounting brackets.

Matrix Mixer – This system has 4 channels (speaker outputs) and 2 input selectors. Channels 1 & 2 can look at one audio source… such as Bluetooth. Channels 3 & 4 can look at another… such as a line input (TV). However, you could also play the same thing across all channels if you wish. For example… This is perfect for playing audio from your TV in your living room & music from your phone in the kitchen. You can then combine all zones to play music in all rooms if you have a party! Each channel also has its own volume control so that’s 4 zones that you can control without having to purchase additional volume units.

Below are a few more highlighted features that this Amplifier has from a list of many:

Power – This amplifier boasts an impressive 100W RMS per channel @ 8Ohm and 200W RMS per channel @ 4Ohm and is capable of handling any domestic environment and most commercial environments (depending on the nature of the install).

Bluetooth & Media Player – This amplifier features multiple Line & AUX inputs like most amplifiers, but it also has a built-in media player. This includes wireless Bluetooth connectivity for your mobile / tablets, a USB reader, an SD card reader & FM radio receiver.

The Bluetooth function on this amplifier is also compatible with the Amazon Echo & Google Home devices.

Independent Volume Controls – There are 4 channels (speaker outputs) on this amplifier and each one has a volume control, perfect if you need one zone to be a little louder than another or completely turned off.

Microphone inputs with talk over function – This amplifier has 2 microphone inputs on the front making it perfect for use in bars, pubs, clubs, restaurants, shops and even at home as a karaoke system. Each microphone has its own volume control and the talk over function that allows you to talk over your music clearly without having to alter the volume of your music.

Remote Control – Each amplifier is supplied with a remote control so you can control certain functions without having to touch the amplifier (perfect for businesses if you don’t want staff to tamper with the amp).

Features:

1x – Bluetooth receiver (wireless) – version 2.3

2x – 2 RCA/Phono (red & white) inputs

1x – 2x 6.35mm (L & R) mono inputs

FM radio receiver

SD card input

USB input

AUX 3.5mm Stereo input

8x – spring terminal / speaker cable (red & black) outputs

2x – 2 RCA Line Outputs (single RCA for all channels)

19” Data Cabinet Ear Mounts supplied (2U)

Durable metal body with breathable air vents built in.

UK mains power cable supplied

Technical Specification:

AMPLIFIER:

Power Supply – 230V AC, 50Hz IEC UK mains plug

Power output RMS per channel at 4 Ohms - 200W (per channel)

Power output RMS per channel at 8 Ohms - 100W (per channel)

Bluetooth Range – 10m

Thermal cut-out, over-current, over-voltage & short-circuit protection

Dynamic Range – 92dB

Input impedance – 20k Ohms (balanced), 10k Ohms (unbalanced)

Frequency Response – 20Hz - 20kHz ±0.5dB

Class D Amplifier

Dimensions – 482mm x 88mm x 240mm (WxHxD)

Weight – 6000g

SPEAKERS:

Construction – Housed in a rugged ABS plastic casing with a subtle, yet durable mesh grille, these speakers will look stylish & discrete in most environments. Each enclosure contains a high quality 1/2” balanced polymer tweeter and a 6.5” surround woofer to produce a fantastic sound for such a compact speaker.

2-Way Speakers

Speaker Cable Connections

Max Power – 200w

Power RMS – 100w

Sensitivity (1m, 1W) – 90DB

Frequency Response – 40Hz-20kHz

Impedance – 8 ohms

How to install:

Installation is quick and easy. Take 1 speaker and run this into “channel 1” of the amplifier. Then take a second speaker and plug this into same connections on the amplifier “channel 1”. You can then repeat this process with the other 3 channels on the amplifier. You will end up with 2 speakers connected to each channel and this is called wiring in parallel.

If you think that you need any other accessories or more cable, please get in touch, we can create and supply custom speaker kit bundles perfect for almost any installation.
