Loops Bar Restaurant Bluetooth Wall Speaker System 110W Wireless Amp HiFi Music Kit

Quality Bluetooth Amplifier & Wall Mounted Speaker Kit

Perfect for bars, restaurants, clubs, cafés, pubs & any room at home

**Call us after ordering if you would prefer white speakers**

What’s Included?

1x 110W Bluetooth HiFi Amplifier

4x (2 Pairs) 4” 70W Satellite Speakers

1x UK mains power cable

1x Instruction manual

2x 10m speaker cables (20m total)

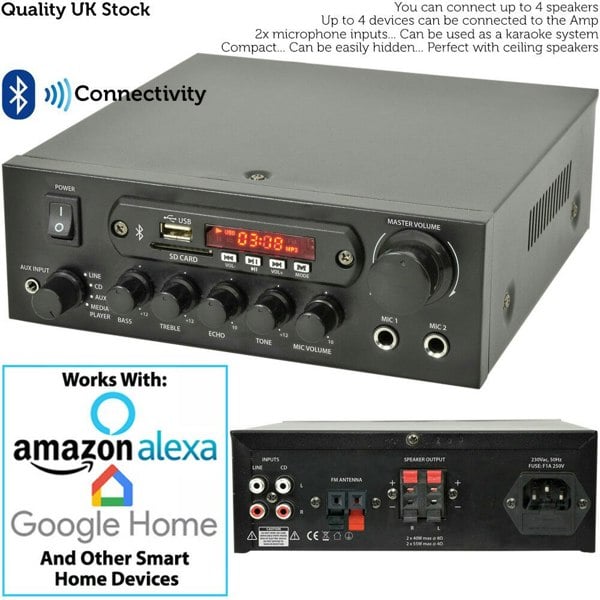

Overview Amplifier:

Designed to be installed in a bar, restaurant, pub environment or simply at home, this kit allows you to play music through the 4x 70W premium wall speakers. Perfect for playing music during service or for transforming a dining area into a dance floor when the tables have been cleared away (providing the space isn’t too large).

This amplifier has a built-in Bluetooth receiver allowing you to connect any devices you have with Bluetooth (a smart phone with Spotify or a CD Player for example) wired/wirelessly. This is brilliant for keeping the amplifier hidden away in a cupboard. Your device would not need line of sight to play music through the connected speakers. Perfect for at home, in the office or shop and even for use in professional installs.

The amplifier has several 2 RCA/PHONO inputs allowing you to connect devices that are not compatible via Bluetooth. It also has 2x Microphone inputs on the front of the unit, perfect for a karaoke night.

This amplifier is very capable for its cost and boasts volume, bass & treble controls so that this system can be tailored to any music style or to match the space it has been installed into perfectly.

Overview Speakers:

These compact and discreet 2 way stereo speakers are fitted with 4” bass drivers which ensure impressive levels of low frequency audio that most speakers of this size cannot match. Each speaker is also supplied with adjustable wall mounting brackets and are available in either black or white.

Construction – Housed in a rugged ABS plastic casing with a subtle, yet durable mesh grille, these speakers will look stylish & discrete in most environments. Each enclosure contains a high quality 2” balanced polymer tweeter (double the size of most on the market) and a 4” surround woofer to produce a great sound for such a compact speaker.

Technical Specification:

Amp

Features:

6 selectable line inputs

1x – Bluetooth receiver (wireless)

2x – 2 RCA/Phono (red & white) inputs

1x – 3.5mm AUX jack

1x – USB media input

1x – SD Card media input

2x 6.35mm Microphone inputs - Allows you to use as a loud hailer / public speaking / singing System

1x FM Antenna Connections

2x – spring terminal / speaker cable (red & black) outputs

Built-in FM receiver

Sleek and compact design

Durable metal body with breathable air vents built in.

UK mains power cable supplied

Technical Specification:

Power Supply – 230V AC, 50Hz

Power output max per channel at 4 Ohms - 55W (per side)

Power output per channel at 4 Ohms - 35W (per side)

Power output Max per channel at 8 Ohms - 40W (per side)

Power output RMS per channel at 8 Ohms - 25W (per side)

Dimensions – 200mm x 65mm x 200mm (WxHxD)

Weight – 1700g

Speakers

2-Way Speakers

Speaker Cable Connections

Max Power 8Ohm – 70w

Power RMS 8Ohm – 35w

Sensitivity (1m, 1W) – 87DB

Frequency Response – 100Hz-20kHz

Impedance – 8 ohms

Dimensions:

Height 208mm, Width 140mm, Depth 120mm (Per Speaker)

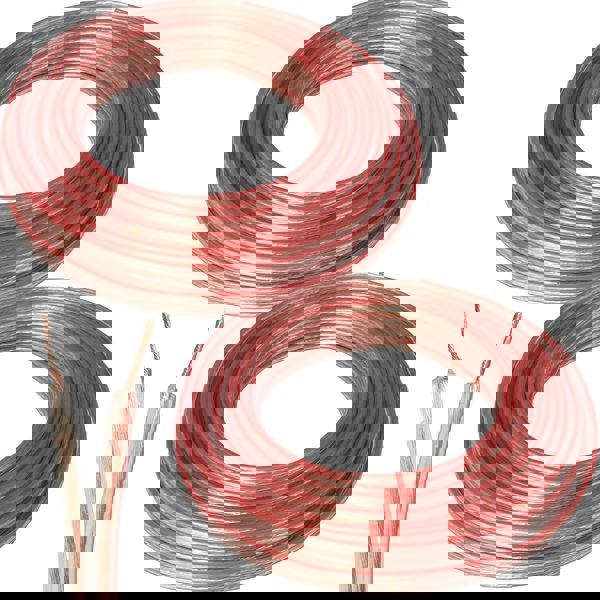

Speaker Cable

Length – 10m (if you need more, please let us know & we can add this on).

One PVC conductor is polarity marked - easy connectivity

Area per core = 0.75mm² (AWG 19 approx)

Copper Clad Aluminium CCA

Outer Diameter Per Core = 3.1mm

24 Strands @ 0.2mm

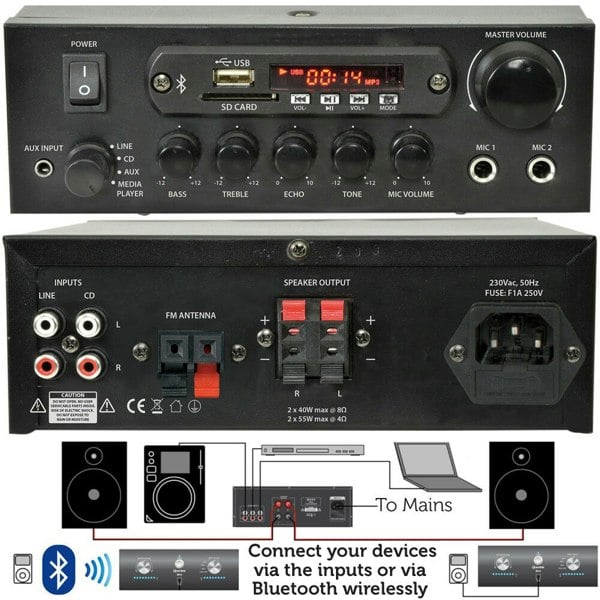

How to install:

Installation is quick and easy. Take 1 speaker and run this into the left channel of the amplifier. Then take a second speaker and plug this into the 1st speaker. This is called daisy chaining. You can then repeat this process with the other 2 speakers but for the right channel on the amp. You will end up with 2 speakers connected to the left channel and 2 to the right channel and this is called wiring in parallel

Peace of Mind - Tested to CE and RoHS standards

Further information – If you require a longer length of speaker cable or any other accessories such as source cables or even just some advice on how this system works, please feel free to get in touch with our friendly technical team.
