Loops PRO Bar Club Sound System 8x Loud Wall Speaker 4 Channel 1600W Music Player Kit

Premium Power Amplifier and 8x 300W Speakers with Wall Brackets Kit

Perfect for Night Clubs, Social Clubs, Bars, Restaurant Discos, & Gigs in Pubs

What’s Included?

1x 1600W Quad Channel Power Amplifier

8x (4 Pairs) 300W 10” Premium Speakers

8x Adjustable Speaker Wall Brackets

1x Instruction manual

Overview:

Designed to be installed in Night Clubs, Social Clubs, bars, or a pub environment, this kit allows you to play music through the 8x 300W wall mountable speakers. Perfect for parties, discos, club nights and gigs.

This amplifier is rated at an impressive 1600W (400W per channel) & is suitable at 2, 4 or 8OHM operations. It will consistently deliver a premium audio signal to the supplied speakers allowing you to fill any room with a loud, un-distorted & crisp sound.

PLEASE NOTE – this amplifier has 4 independent inputs, all with their own output and volume controls. Each channel will support either 1, 2 or 4 speakers (8Ohm). Should you want to play the same thing through all 8 speakers, you would need to split your source signal into the 4 inputs on this amplifier, you can then run 2 speakers on each output.

The Amplifier has 4 XLR female inputs & 4x Speaker (SPEAKON) outputs. We recommend using a Speaker (SPEAKON) Cable to run from the amplifier to the supplied speakers as they also have this connection.

The volume of each channel can be controlled individually from the amplifier. This can be handy as not all rooms are the same and some installs require different speakers at different volumes depending on where they are situated.

The supplied speakers have a Speaker (SPEAKON) input (from the amp) and a Speaker (SPEAKON) out. This allows you to add speakers to the original connection at the amplifier.

Each speaker is supplied with a premium, adjustable wall bracket. These will allow you to mount the speakers in a fixed position at the perfect height for your listening audience. The brackets will tilt downwards up to 45 degrees. This will enable you to mount the speakers out of reach whilst still delivering high quality music in the correct direction.

Technical specification

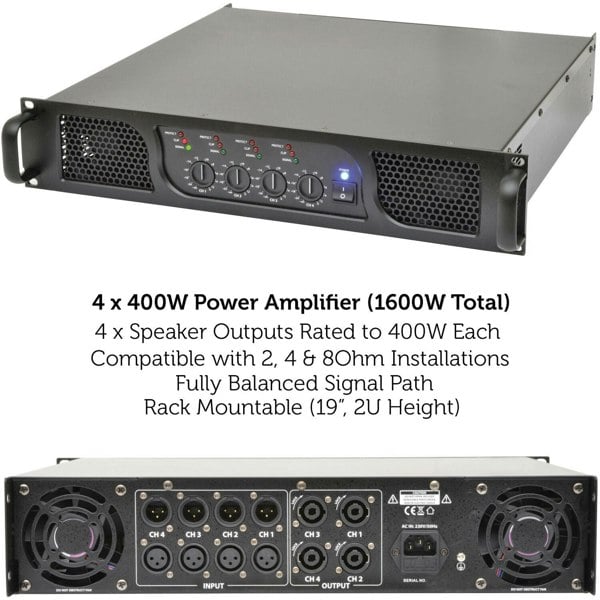

Amplifier:

Power supply – UK Mains Plug to IEC – 230VAC, 50Hz

Frequency response - 5Hz - 50kHz

Input sensitivity - 20k Ohms

S/N ratio - >103dB

THD - <0.05%

Power RMS @ 2 Ohms - 4 x 400W

Power RMS @ 4 Ohms - 4 x 300W

Power RMS @ 8 Ohms - 4 x 200W

Dimensions - 483mm (W) x 439mm (D) x 88mm (H)

2U Rack mountable

Weight – 22kg

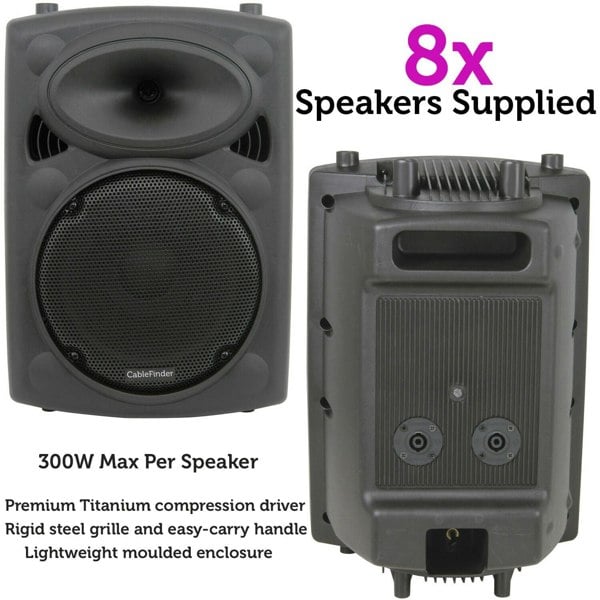

Speakers:

Passive Speaker (powered by supplied amplifier)

Speaker (SPEAKON) input & output

Power MAX – 300W

Power RMS – 150W

Woofer size – 10” (250mm)

Frequency Response – 50Hz – 20kHz

SPL @ 1W/1m – 95dB

Rigid steel grille and easy-carry handle

Multiple mounting points

Titanium compression driver

35mm pole / bracket mounting slot

Weight (each) – 6.5KG

Dimenions:

Width (Front) – 320mm

Width (Rear) – 180mm

Height – 470mm

Depth – 260mm

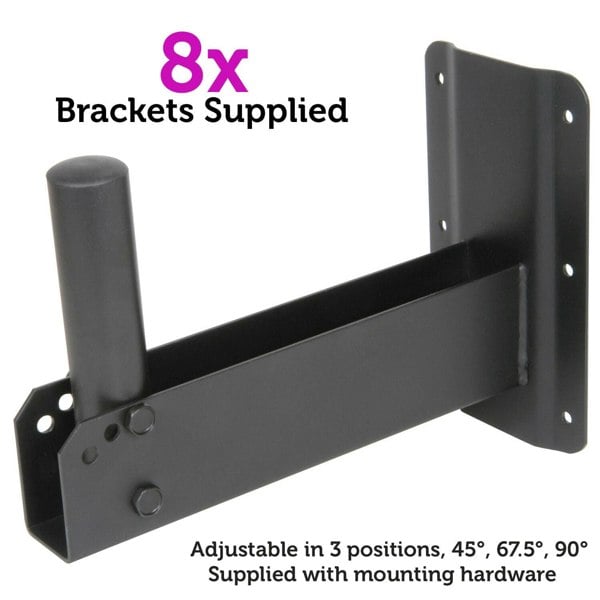

Adjustable Wall Bracket:

Adjustable Tilt - 45, 67.5 and 90 degrees

Weight Limit - 40KG

Colour - Black

Height of Wall Plate - 200mm

Width of Wall Plate - 116mm

Length of Arm - 280mm

35mm Diameter Tube Mount - designed to fit the supplied speakers

Further information - If you require any other accessories such as source/speaker cables or just some advice on how this system works, please feel free to get in touch with our friendly technical team.
