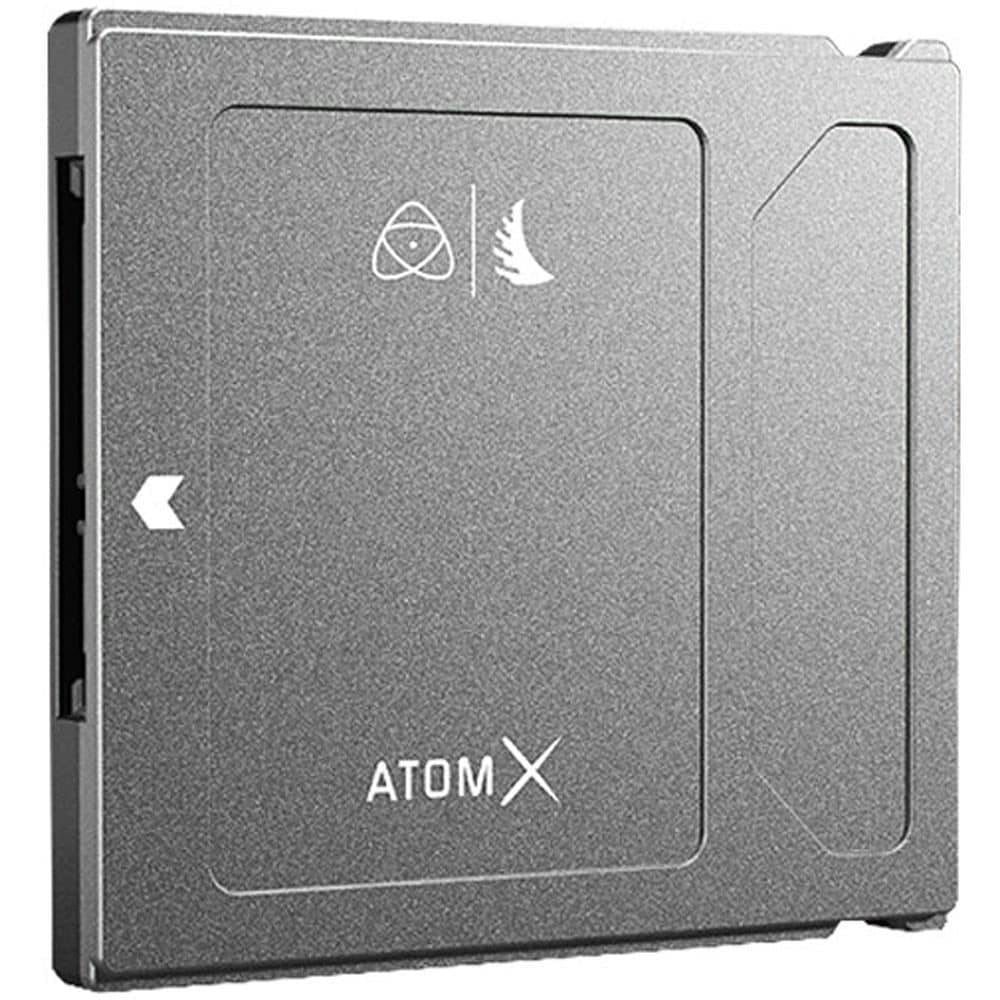

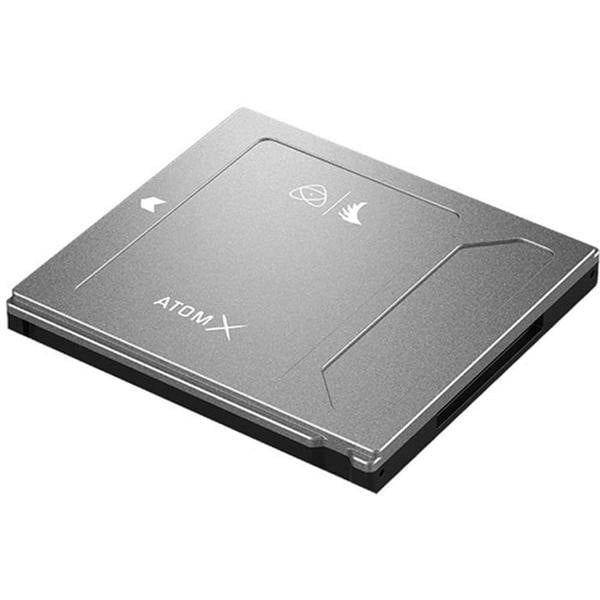

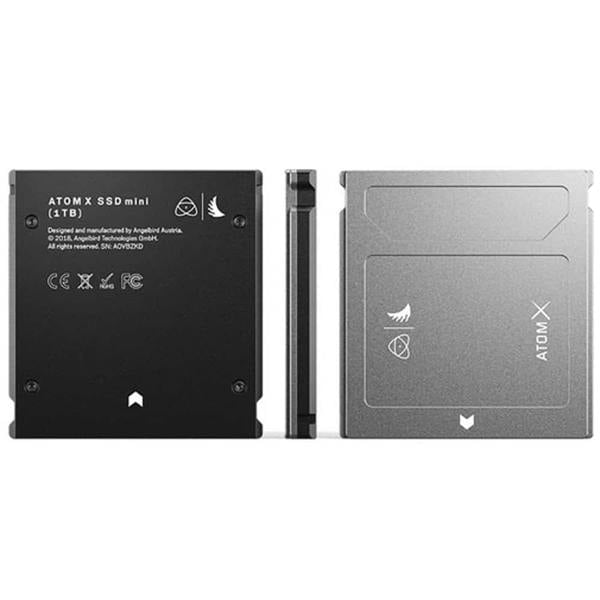

Angelbird AtomX SSDmini 1TB

Built for demanding Atomos recording workflows, the Angelbird AtomX SSDmini 1TB is a custom recording SSD created for high-resolution capture in a more compact format. This official Atomos recording SSD by Angelbird supports workflows up to 8K and is 20% smaller than a typical SATA SSD, making it a neat fit for compatible monitor-recorders.

Consistent performance is central to its design, with a sustained write speed of 500 MB/s and stable stream technology to maintain reliable read and write behaviour across the full capacity. Support includes Apple ProRes, ProRes RAW, Avid DNx and CDNG, with codec and resolution support varying by host device. It is compatible with Atomos Ninja V, Ninja V+, Ninja Flame, Ninja Inferno, Neon, Shogun 7, Shogun Flame, Shogun Inferno, Sumo 19 and Shogun Studio 1/2, with an AtomX Adapter Handle required for selected models.

Key features

• 1TB capacity
• Custom recording SSD for Atomos workflows up to 8K
• 20% smaller than a typical SATA SSD
• Sustained write speed: 500 MB/s
• Supports Apple ProRes, Apple ProRes RAW, Avid DNx and CDNG
• Stable stream technology
• Temperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART and NCQ
• CE certified
• Model number: AB-ATOMXMINI1000PK

Specifications

Performance

• Max. read speed: 560 MB/s
• Max. write speed: 540 MB/s
• Sustained read speed: 520 MB/s
• Sustained write speed: 500 MB/s
• High IOPS and low latency
• Endurance: up to 3,000 TBW
• MTBF: 2,400,000 hours
• Data retention: 10 years at 25 C

Compatibility

• Compatible with Ninja V, Ninja V+, Ninja Flame, Ninja Inferno, Neon, Shogun 7, Shogun Flame, Shogun Inferno, Sumo 19, and Shogun Studio 1/2
• AtomX Adapter Handle required for Sumo 19 and Shogun Studio 1/2
• Compatible with Atomos products that use the Master Caddy and Master Caddy II guide rail systems
• Firmware update recommended on the Atomos recorder for complete functionality

Codec support

• Apple ProRes / Avid DNx: up to 4k60p, 2k240p
• Apple ProRes RAW: up to 8k30p, 6k30p, 5. 7k30p, 4k120p, 2k240p
• CDNG: up to 4k30p, 2k120p
• 4K, 6K, 8K, 12K and Full HD support may vary depending on host device, file attributes, and other factors

Technical

• Interface: SATA 3. 1, 6 Gb/s - backwards compatible
• Over provisioning: 9 %
• Built-in EDC - ECC function
• DC input voltage: 5 V ± 10 %
• Power usage: 0. 35 W idle / 3. 5 W max

Environmental

• Shock resistance: 1500 G non-operating / 50 G operating
• Vibration resistance: 20 G non-operating / 3. 1 G operating
• Operating temperature: -20 C | 70 C
• Storage temperature: -40 C | 85 C
• Operating humidity: 5 % to 95 % non-condensing

Sizing

• 80. 0mm W x 75. 5mm D x 9. 3mm H

In the box

AtomX SSDmini 1

Support & warranty

• 3-year limited warranty when activated within 30 days of purchase
• Personalised customer care
• Technical support
• Free data recovery services on both the hard drive and software from the Austrian Angelbird tech team

Safety information

• Defence against high temperatures, stress, x-rays, electromagnetic fields, overload and ESD
