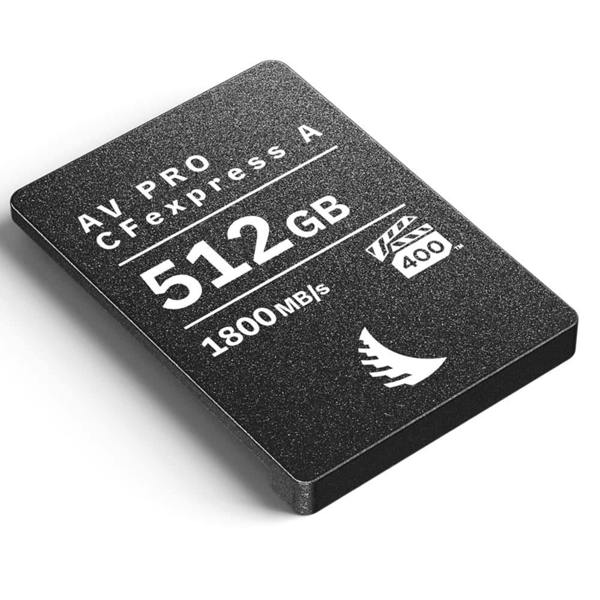

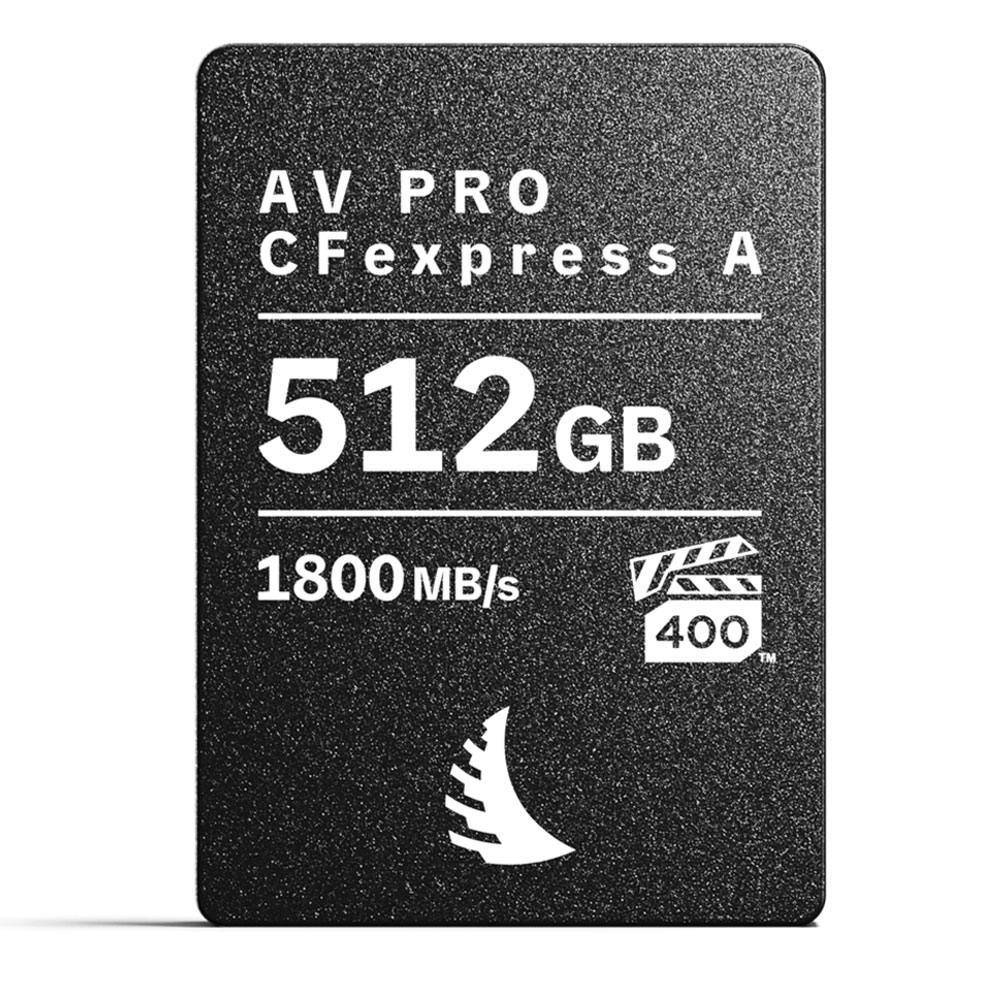

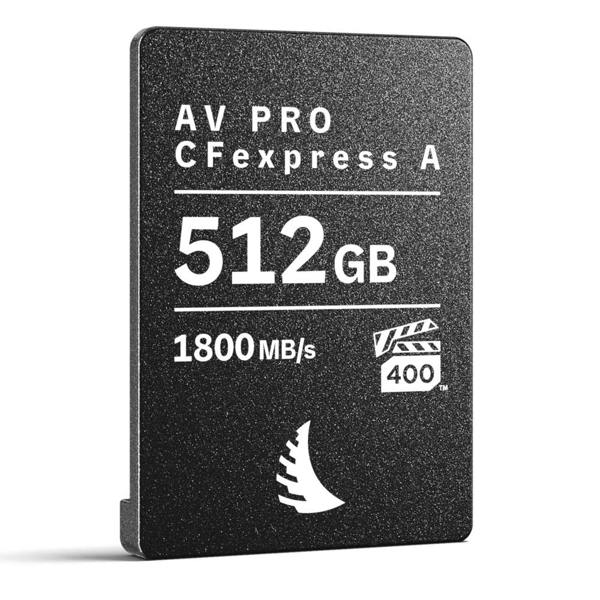

Angelbird AV PRO CFexpress v4.0 Type A Memory Card featuring VPG 400 512GB

Built for demanding Sony workflows, the Angelbird AV PRO CFexpress v4. 0 Type A Memory Card featuring VPG 400 is a high-speed memory card with 512GB capacity. It supports high-data-rate stills and video capture, including up to 8K RAW stills and 8K video recording, while maintaining sustained performance for continuous shooting and smooth recording.

Using CFexpress v4 Type A and PCIe 4. 0 x1 technology, this card delivers fast transfer speeds for capture and file offloading. Stable Stream technology supports uninterrupted read and write performance across the full capacity, while Host Power Loss Protection helps save buffer files and safely shut down the card if power is lost. Advanced Thermal Management reduces overheating risk by switching to a low power safe mode when the card is not in use.

Key features

• 512GB capacity
• CFexpress v4 Type A form factor
• VPG 400 certified
• Supports up to 8K RAW stills and 8K video recording
• Max. read speed: 1800 MB/s
• Max. write speed: 1650 MB/s
• Sustained write speed: 800 MB/s
• CE, RoHS, FCC, UKCA, RCM, REACH and KC certified
• Model number: AB-AVP512CFXAMK2

Specifications

Performance

• Max. read speed: 1800 MB/s
• Max. write speed: 1650 MB/s
• Sustained read speed: 1700 MB/s
• Sustained write speed: 800 MB/s

Interface

• Interface: CFexpress v4 Type A
• Bus: PCIe 4. 0 x1
• Backward compatible with CFexpress 2. 0 devices

Technical details

• Temperature sensor
• TRIM
• ECC
• EMS protection
• SMART
• Power management
• DC input voltage: 3. 3 V ± 5 %
• Sleep power usage: <50 mW
• Idle power usage: 0. 35 W
• Max. power usage: 1. 75 W

Environmental resistance

• Humidity (operating): 5 % to 95 % non-condensing
• Operating temperature: -12/72 C | 10/162 F
• Storage temperature: -20/85 C | -4/185 F
• Water, dust, shock, x-ray, magnetic, ESD and overload resistant

Compatibility

• Supported by Sony CFexpress Type A cameras
• Supports features across Sony CFexpress Type A cameras including Sony α1, Sony α1 II, Sony α7 IV, Sony α7S III, Sony α7R V, Sony FX3, Sony FX30 and Sony FX6

Sizing

• 28mm W x 2. 8mm D x 20mm H

In the box

AV PRO CFexpress A v4

Support & warranty

• 3-year limited warranty
• Free data recovery service included
• To receive the full limited warranty, the product must be activated on the Angelbird Personal Service Portal within 30 days after purchase
• If not activated within this period, the market-specific legal guarantee period comes into force

Safety information

• Host Power Loss Protection saves buffer files and safely shuts down the card when the camera battery is low or power is lost
• Advanced Thermal Management protects the card from overheating by switching to a low power safe mode when not in use
