ATEK 12-43 Inch Fixed TV Wall Mount Bracket 45kg VESA 200x200 Ultra Slim

ATEK brings a neat, low-profile solution to smaller and mid-sized screen installations with this fixed TV wall mount bracket for 12-43 inch televisions. Built in heavy duty steel with a black finish, it supports compatible LED, LCD and flat-screen TVs up to 45kg / 99lbs, while keeping the screen positioned close to the wall.

The fixed design holds the television approximately 28mm from the wall for a clean, unobtrusive look in living rooms, bedrooms, kitchens, home offices and meeting rooms. With VESA compatibility up to 200x200mm, two vertical mounting rails, and multiple mounting holes and slots, it suits a wide range of compatible sets where tilt or swivel adjustment is not required.

Key features

• Suitable for compatible 12-43 inch TVs
• Maximum stated load: 45kg / 99lbs
• Maximum VESA: 200x200mm
• Approximately 28mm wall distance
• Fixed flat, low-profile mount type
• Heavy duty steel construction
• Black finish
• Two vertical TV mounting rails
• Bubble spirit level supplied

Specifications

• Brand: ATEK
• Product type: Ultra slim fixed TV wall mount bracket
• Compatible screen size: 12-43 inches
• Maximum stated load: 45kg / 99lbs
• Maximum VESA: 200x200mm
• Wall distance: Approximately 28mm
• Mount type: Fixed / flat / low profile
• Material: Heavy duty steel
• Colour: Black
• Movement: Fixed - no tilt or swivel
• Use: Indoor

Installation

• Recommended wall types: solid brick, concrete or correctly located structural timber studs using suitable fixings
• Check the television size, weight and VESA mounting pattern before installation
• Ensure the wall structure can safely support the combined weight of the television and bracket
• The approximately 28mm profile provides limited space behind the television, so connector clearance for power, HDMI and aerial leads should be checked
• Television manufacturers use different screw sizes and lengths; never force an incorrectly sized mounting screw into the television
• This model does not provide tilt, swivel or extension adjustment

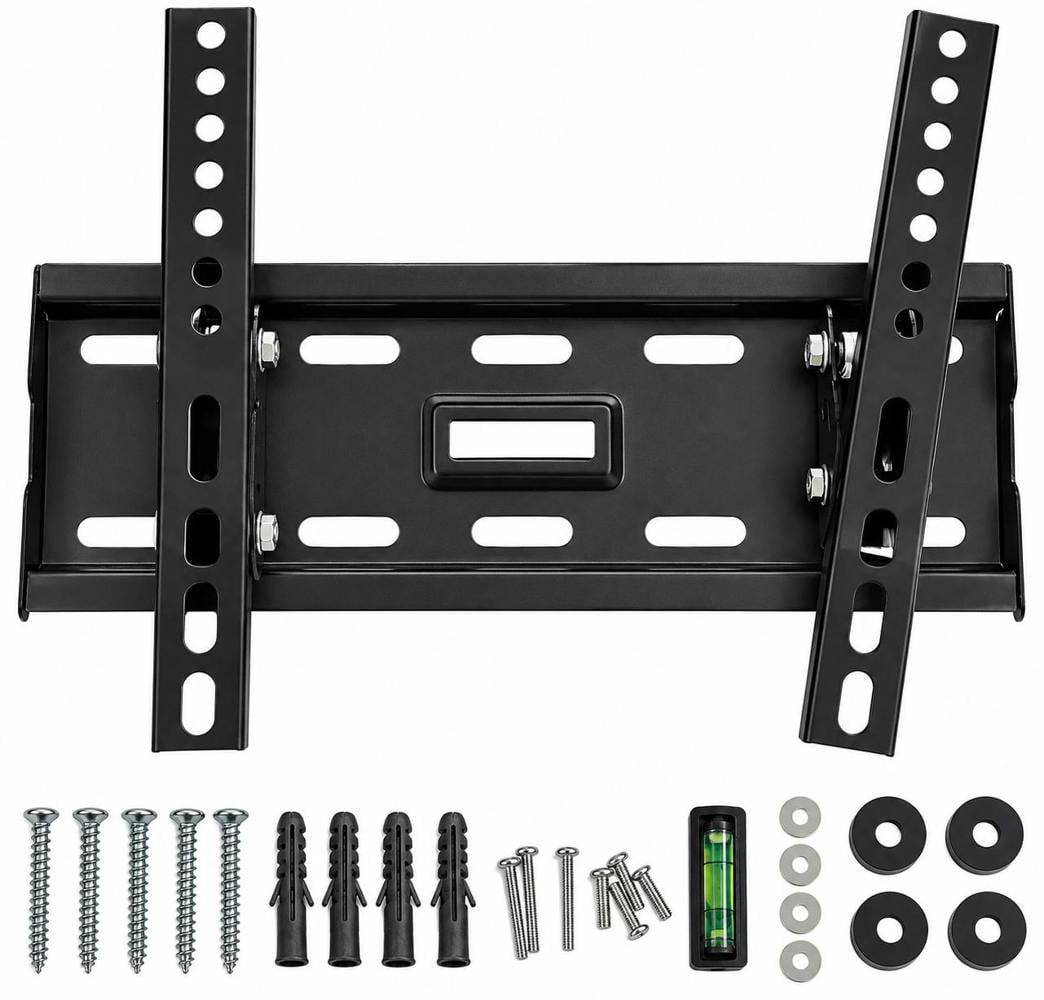

In the box

• Bubble spirit level
• Wall screws
• Wall plugs
• Assorted TV mounting screws
• Washers
• Spacers

Rackhams Reference : F5UTNXTASH
