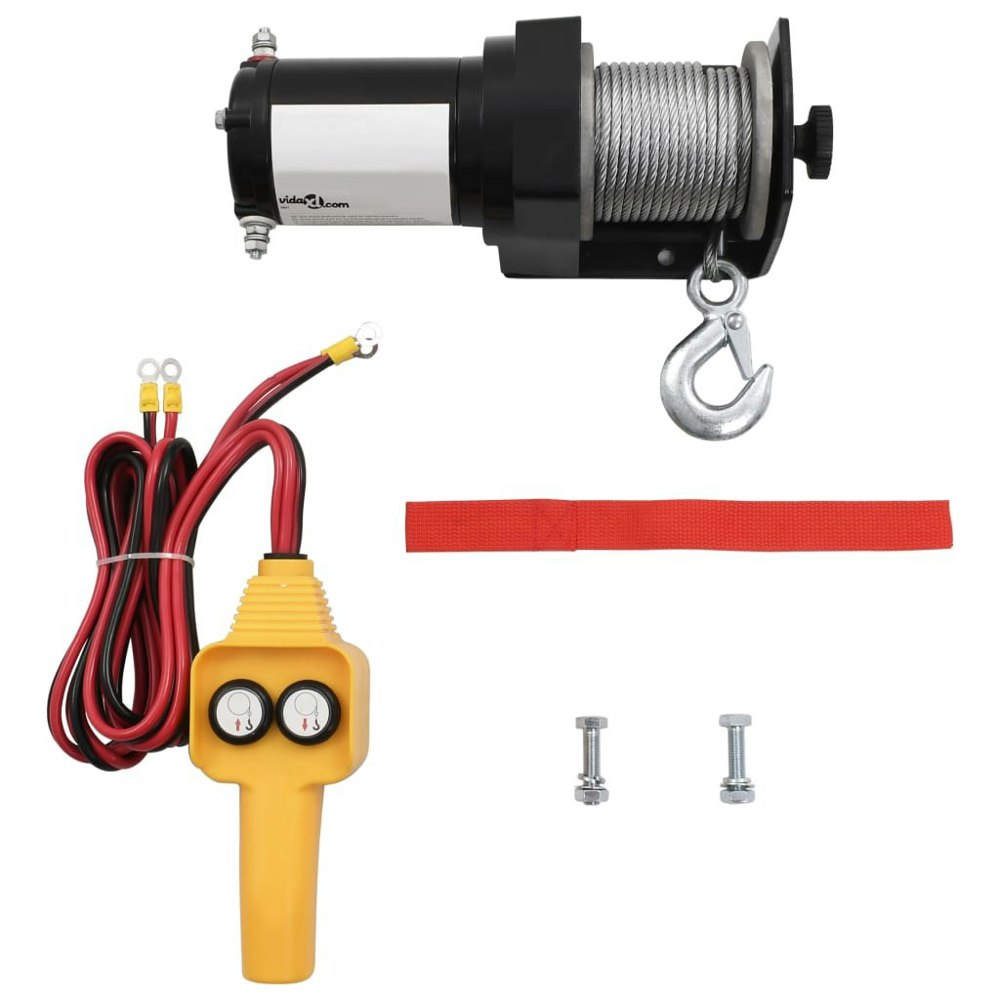

Berkfield 12 V Electric Winch 907 KG Wire Remote Control

For vehicle recovery, the Berkfield 12 V electric winch combines a 907 KG maximum line pull with a 1.0 HP DC 12 V permanent magnet motor for intermittent duty use. The unit uses a differential planetary gearing system with a 153:1 gear ratio, giving controlled pulling performance in a compact format.

A pull-and-turn free spool clutch disengages the gearbox so the wire rope can be pulled out without electric power. The fitted tension plate helps reduce backlash and snaring when extending the wire rope. Operation is managed through a wire remote control switch, and the winch is supplied with mounting accessories for installation.

Key features

• Maximum line pull of 907 KG
• 1.0 HP, DC 12 V permanent magnet motor
• Maximum current: 120 Amp
• Gear ratio: 153:1
• Differential planetary gearing
• Wire rope length: 15 m
• Wire remote control switch
• Weight: 5.5 KG

What's included

• 1 x wire remote control
• 1 x hook with cable
• Power cable
• Mounting accessories such as screws and nuts

Sizing

• Dimensions: 285 x 105 x 105 mm (L x W x H)
• Drum diameter: 31.75 mm

About this product

Who is it for

Suited to users carrying out vehicle recovery with a 12 V winch for intermittent duty applications.

When and where to use it

Suitable for vehicle recovery where controlled pulling and remote operation are required.

Rackhams Reference : LTIHYS4ZTA
