Berkfield Custom Built Bush / Bearing / Seal Driver Master Set Discs 51 pcs

For bearing, bush, seal and rubber installation, the Berkfield Custom Built Bush / Bearing / Seal Driver Master Set provides a configurable workshop solution for selecting the required disc size without relying on near-matching sockets. The set is made from special carbon steel with a black oxide finish and can be used manually with a hammer or alongside hydraulic presses.

Suited to regular garage and workshop use, this 52 piece set includes a wide range of discs, a support disc, grip and Allen key, all supplied in a blow mould case for organised storage and transport.

Key features

• Made of special carbon steel with black oxide finish
• Suitable for mounting bearings, bushings, sealing rings and rubber
• Can be used with a hammer
• Particularly useful with hydraulic presses
• 52 piece set

Specifications

• 48 discs with outer diameters from 18 to 65 mm in 1 mm graduation
• Disc sizes: 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64 and 65 mm
• All discs: height 12.4 mm, diameter of bore 12.2 mm
• Support disc: 74.2 mm, diameter of the bore 12 mm, height 12.4 mm
• Grip: 12 mm bore diameter

Sizing

• Support disc 74.2 mm
• Disc outer diameters 18 to 65 mm
• Grip overall length 220 mm
• Allen key 3 mm

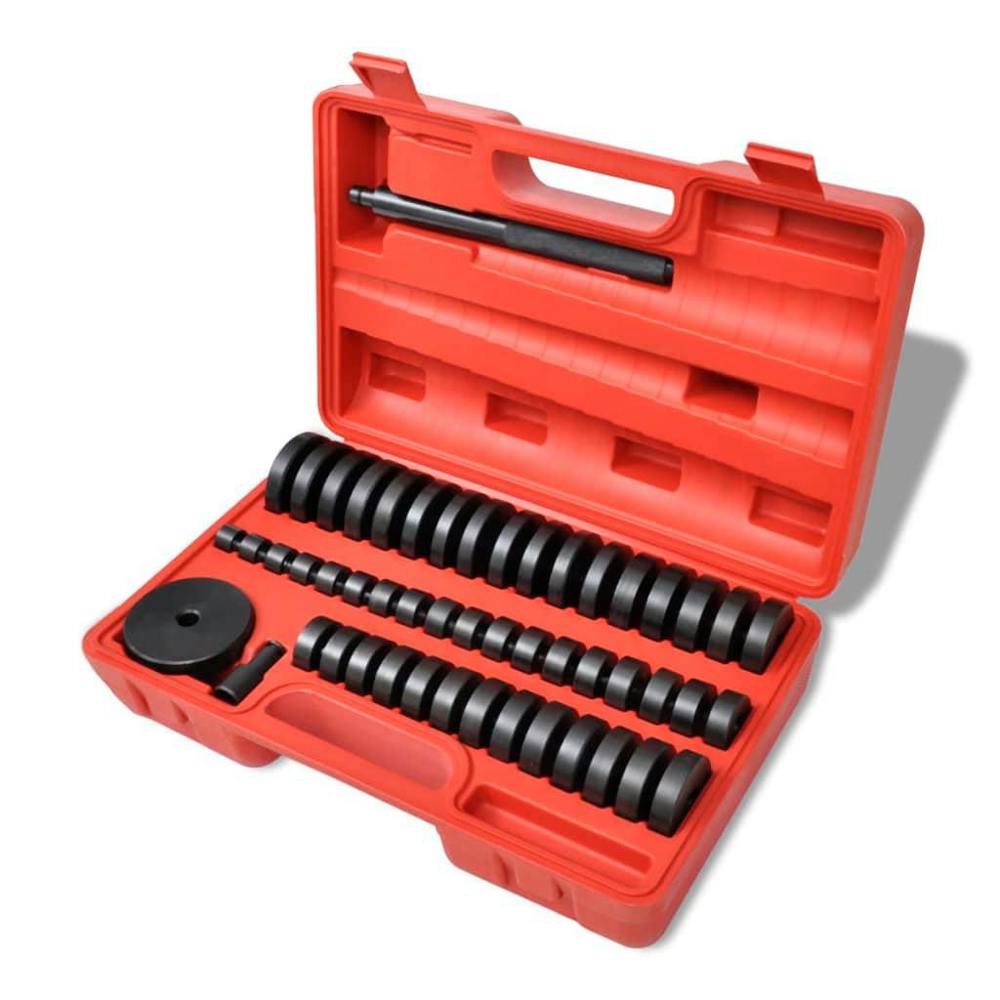

What's included

• 1 x support disc
• 48 x discs
• 1 x grip
• 1 x associated Allen key
• 1 x carry case
