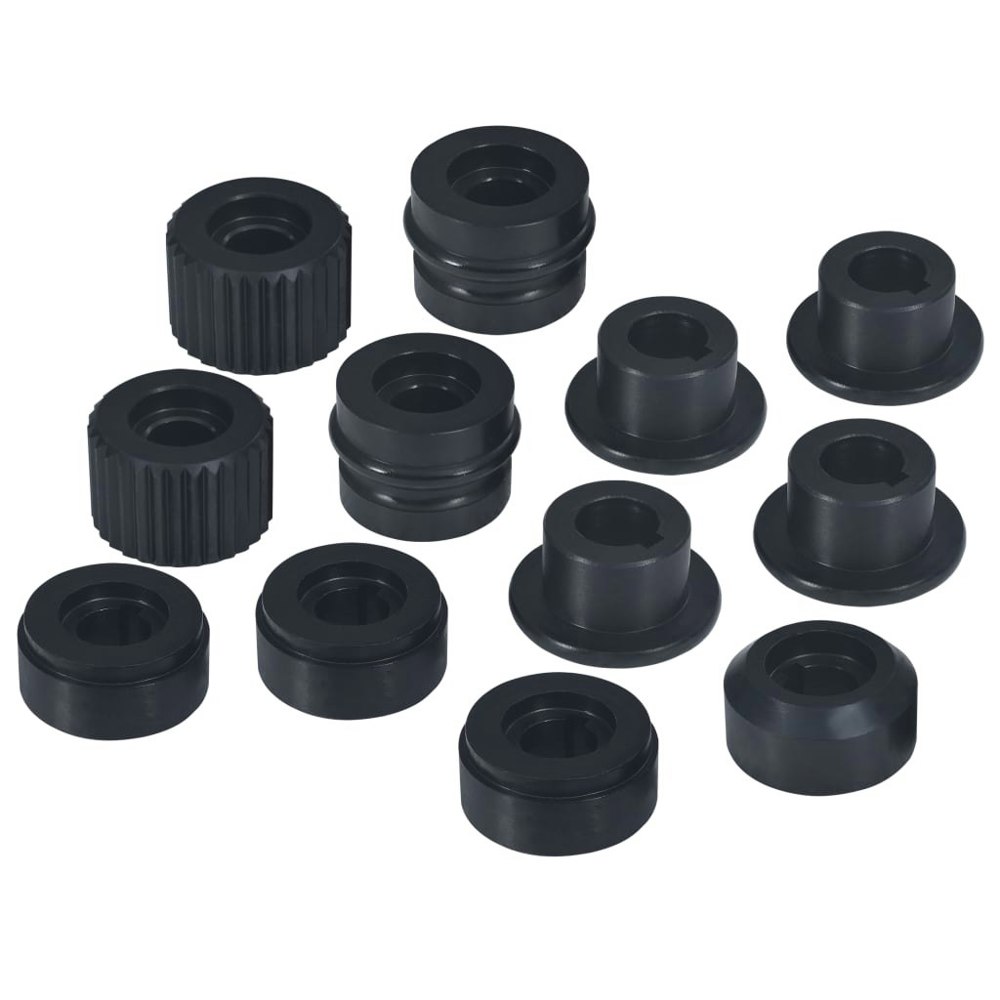

Berkfield Flange Nuts for Tube Beading Machine 12 pcs Steel

For use with a tube beading machine, the Berkfield flange nuts set provides a selection of steel dies for forming and shaping metal tubes. Made from solid steel with a black finish, this 12-piece set suits the 20 mm connector of flange machine SKU 141316 and includes multiple die profiles for different forming requirements.

Precise manufacturing supports accurate tube shaping, including metal joint rings and other formed profiles. This set is suited to workshop use where compatible tube beading equipment is already in place.

Key features

• Steel construction
• Black finish
• Suitable for 20 mm connector of flange machine SKU 141316
• Pack quantity: 12 x nut

Sizing

• Turning die set A width: 3 mm
• Turning die set A nut 1: 55 mm outer diameter, 20/30 mm inner diameter, 28 mm height
• Turning die set A nut 2: 53 mm outer diameter, 20/30 mm inner diameter, 25 mm height
• Turning die set B width: 4.7 mm
• Turning die set B nut 1: 55 mm outer diameter, 20/30 mm inner diameter, 28 mm height
• Turning die set B nut 2: 53 mm outer diameter, 20/30 mm inner diameter, 25 mm height
• Burring die set nut 1: 53 mm outer diameter, 20/30 mm inner diameter, 25 mm height
• Burring die set nut 2: 51 mm outer diameter, 20/30 mm inner diameter, 25 mm height
• Wiring die set: 53 mm outer diameter, 20/30 mm inner diameter, 26 mm height
• Ogee bead die set: 55 mm outer diameter, 20/30 mm inner diameter, 38 mm height
• Crimping die set: 55 mm outer diameter, 20/30 mm inner diameter, 38 mm height

What's included

• 12 x nut
