Berkfield Front Wheel Bearing Tool Audi A1 A2 Seat Ibiza Skoda Fabia VW Fox Polo

For workshop servicing, the Berkfield Front Wheel Bearing Tool is made for damage-free fitting and removal of GEN2 bearing units. It supports in-situ work, allowing the bearing service to be carried out without removing the strut or hub from the vehicle.

Constructed from carbon steel, this kit is suitable for lightweight bearings with an integral mounting flange and a pre-loaded retaining ring to secure the bearing into the housing. It is intended for a range of common Audi, Seat, Skoda and Volkswagen vehicles using 72 mm bearings, and the tools are supplied in a sturdy case for storage and transport between jobs.

Key features

• For damage-free fitting and removal of GEN2 bearing units
• In-situ use without removing the strut or hub from the vehicle
• Bearing size: 72 mm
• Material: Carbon steel
• Suitable for lightweight bearings with an integral mounting flange
• Pre-loaded retaining ring secures the bearing into the housing

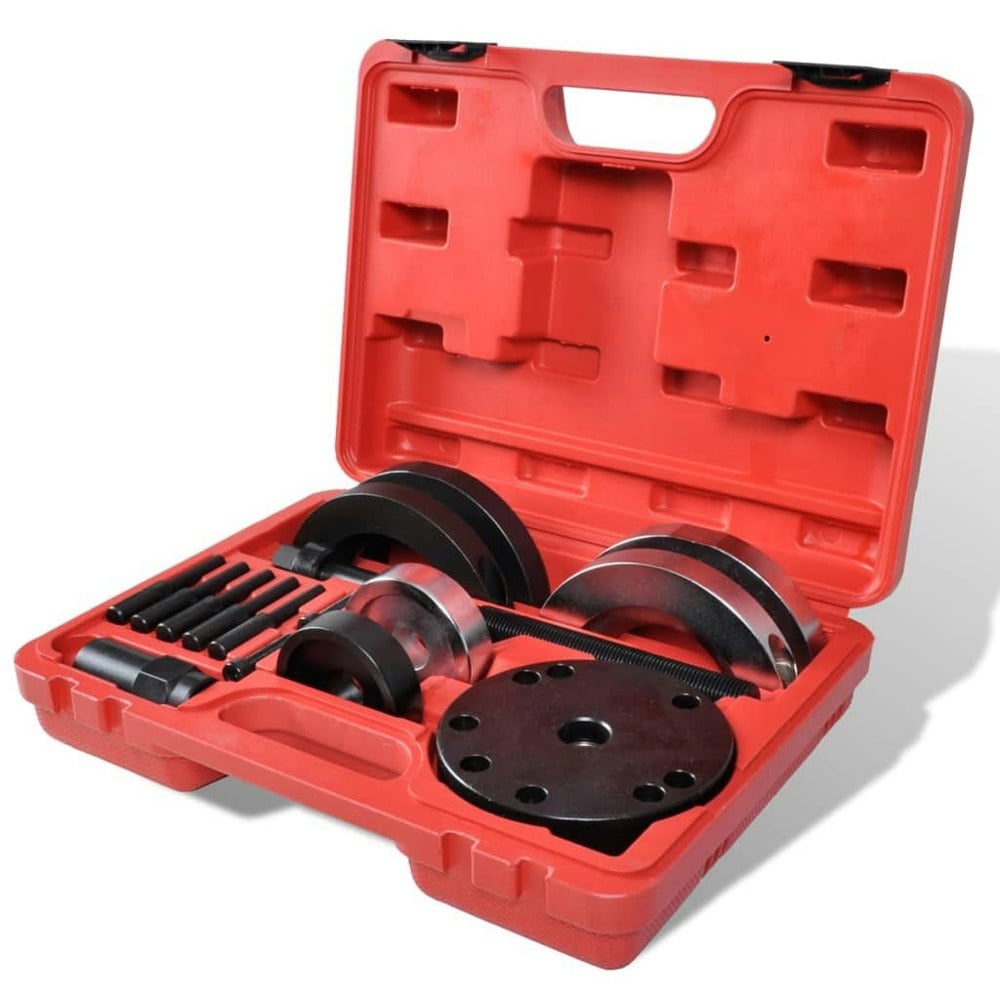

What's included

• High strength ball bearing fitted spindles
• 1 pressure plate with 8 holes, 122 mm in diameter and 18 mm in width
• 5 bolts, 72 mm - 76 mm in length, 8.1 and 11.9 mm in diameter
• 1 screw M 20 x 2.0 with nut hex drive 22 mm
• 1 pair of half shells for dismantling, 72 mm
• 1 dismantling plate
• 1 pair of half shells for installation, 72 mm
• 1 installation plate

Vehicle compatibility

• Audi A1 (from year 2011)
• Audi A2 (built after 2000)
• Seat Ibiza (from 2002)
• Skoda Fabia (manufactured since 2000)
• VW Fox (from 2005)
• VW Polo (from 2002)

About this product

Who is it for

Suited to workshop users servicing GEN2 bearing units on common Audi, Seat, Skoda and Volkswagen vehicles.

When and where to use it

Suitable for in-situ bearing service where fitting and removal are carried out without removing the strut or hub from the vehicle.
