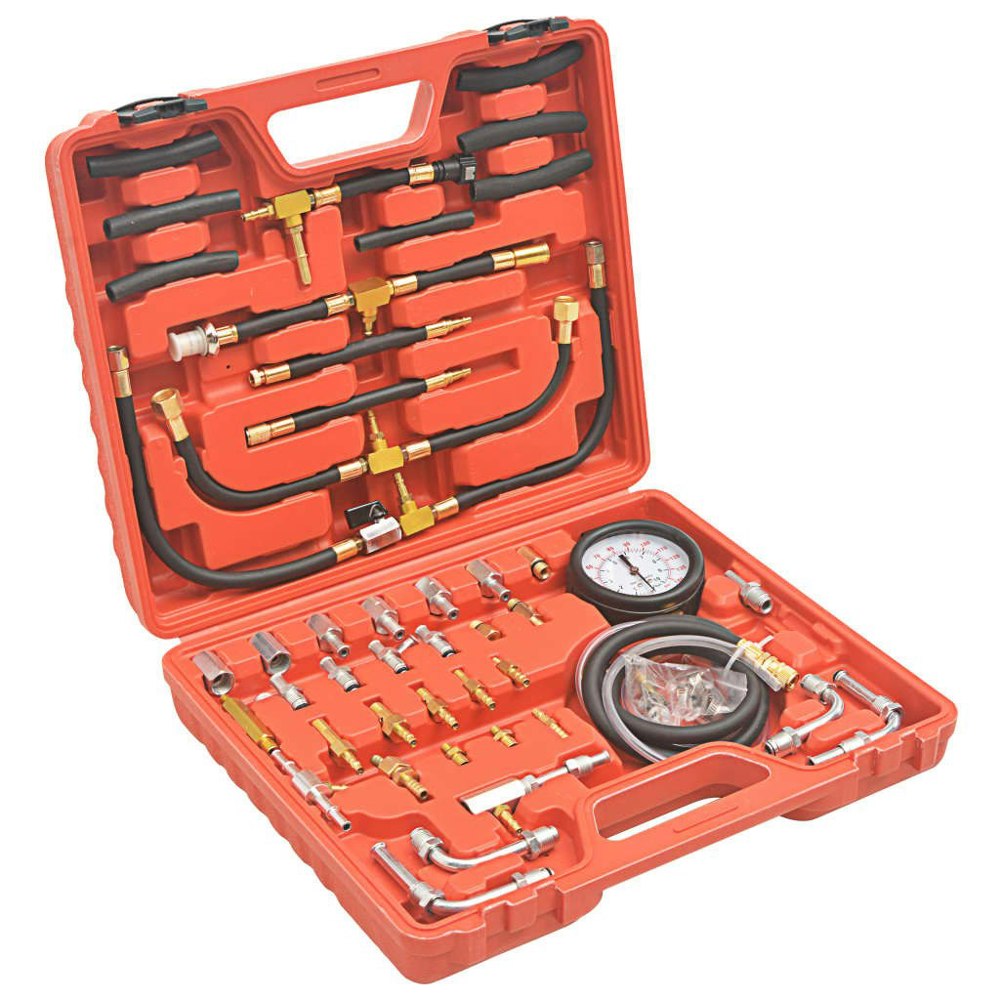

Berkfield Fuel Injection Pressure Tester Kit

Quick and accurate fuel pressure testing is the focus of the Berkfield Fuel Injection Pressure Tester Kit, a 70-piece set for mechanical and electronic gasoline injection systems. Suitable for most cars and trucks worldwide, it covers a wide range of vehicle manufacturers including Audi, BMW, Fiat, Ford, Mercedes Benz, Peugeot, Porsche, Renault and Volkswagen.

A shock-proof dual scale gauge supports clear pressure readings, while quick coupling adapters with a built-in shut-off valve help streamline testing. The flexible hose allows access to hard-to-reach oil switch ports, and the set is supplied in a red blow moulded case for organised storage and transport.

Key features

• 70-piece set including 32 adapters and various connecting hoses
• Suitable for mechanical and electronic gasoline injection systems
• Shock-proof dual scale gauge
• Quick coupling adapters with built-in shut-off valve
• Flexible hose for access to hard-to-reach oil switch ports
• Pressure gauge rated to 140 PSI and 0-10 bar
• Made from copper, rubber and plastic
• Supplied in a red blow moulded case

Specifications

• Injection systems: L / LH-Jetronic, K-Jetronic, MPFI, TBI, EFI, Motronic, Motronic-Jetronic, CIS-Digital, Weber CFI, Spi, Single Point / Multipoint, DIGIFANT 1/2
• Pressure gauge: 140 PSI, 0-10 bar

Compatible with

• Audi
• BMW
• Fiat
• Ford
• Mercedes Benz
• Peugeot
• Porsche
• Renault
• Volkswagen

What's included

• 1 x Precision pressure gauge 90 mm with pressure relief valve
• 1 x 150 cm connection hose
• 1 x Dual scale from 0-10 bar and 0-140 PSI for accuracy
• 1 x Adapter hose with valve for Bosch CIS
• 1 x Adapter hose for GM TBI
• 1 x Adapter for Ford EFI
• 1 x Adapter hose with M12 x 1.5 mm internal thread and quick coupling
• 1 x Adapter hose for standard Schrader valve 7/16" x 20 UNF female thread
• 1 x Angled tube 90° 10 mm with 5/8"-18 male thread (2 pieces)
• 1 x Angled tube 90° 10 mm with 5/8"-18 and M16 x 1.5 mm external thread (2 pieces)
• 1 x Adapter piece with M16 x 1.5 mm and 5/8"-18 female thread (2 pieces)
• 1 x Adapter piece with M14 x 1.5 mm internal thread and 3/8" hose connection (2 pieces)
• 1 x Adapter piece with M16 x 1.5 mm internal thread and 3/8" hose connection (2 pieces)
• 1 x Adapter piece with M14 x 1.5 mm external thread and 3/8" hose connection (2 pieces)
• 1 x Adapter piece with M16 x 1.5 mm external thread and 3/8" hose connection (2 pieces)
• 1 x Adapter with quick coupling 1/4" x 5-16"
• 1 x Adapter with quick coupling 3/8"
• 1 x Quick coupling 90° angled
• 1 x Adapter tube straight 10 mm with 5/8"-18 and union nut (2 pieces)
• 1 x Carrying tool case

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : KJ32YST51L
