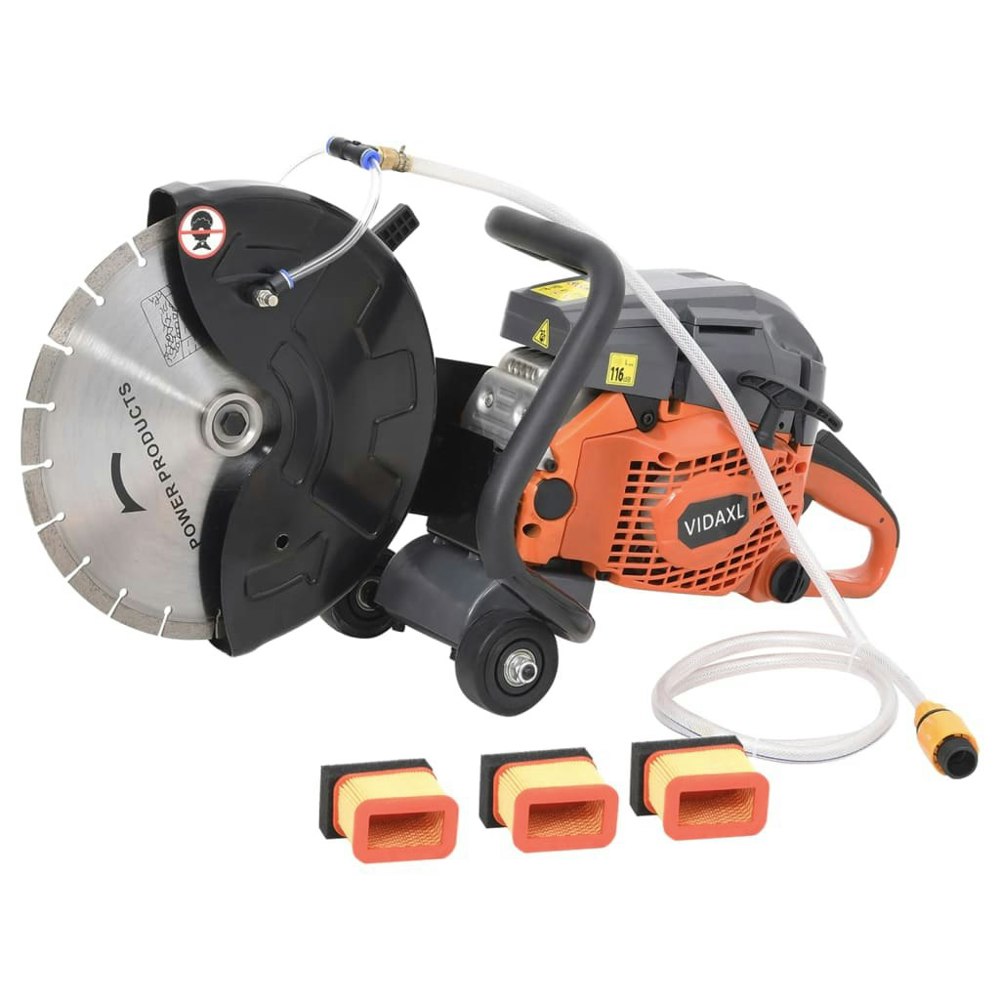

Berkfield Gasoline Concrete Saw 58 cc

Built for demanding cutting work, the Berkfield gasoline concrete saw combines a 58 cc engine with a diamond blade for use on natural stone, granite, brick, pavers, reinforced concrete and other masonry materials. Its steel construction and wheeled design support straight cuts close to the ground, while the blade reaches a maximum cutting depth of 10.5 cm.

The centre of gravity sits behind the wheels for more comfortable handling during longer periods of use. When set down on its wheels, the saw blade stays clear of the ground, helping to reduce contact when not in use.

Key features

• Steel construction
• Grey and orange finish
• 58 cc engine displacement
• Diamond blade
• Maximum cutting depth: 10.5 cm

Specifications

• Fuel tank capacity: 550 ml
• Bore diameter: 45.2 mm
• Stroke diameter: 34 cm
• Outer diameter of cutting disc: 305 mm
• Diameter of axle hole: 25.4 mm
• Cutting disc speed: 80 m/s
• Max. engine power: 3 HP(2.4 kW)/8500/min
• Max. engine speed: 9500 r/min
• Idling speed: 3000 r/min
• Clutch engagement speed: 4500 r/min
• Max spindle speed: 4900 rpm
• Engine speed limitation: 9500 r/min
• Max declared torque: 2.8 Nm

Sizing

77 x 27 x 38 cm (L x W x H)

What's included

• 1 assembled filter
• 2 extra filters
