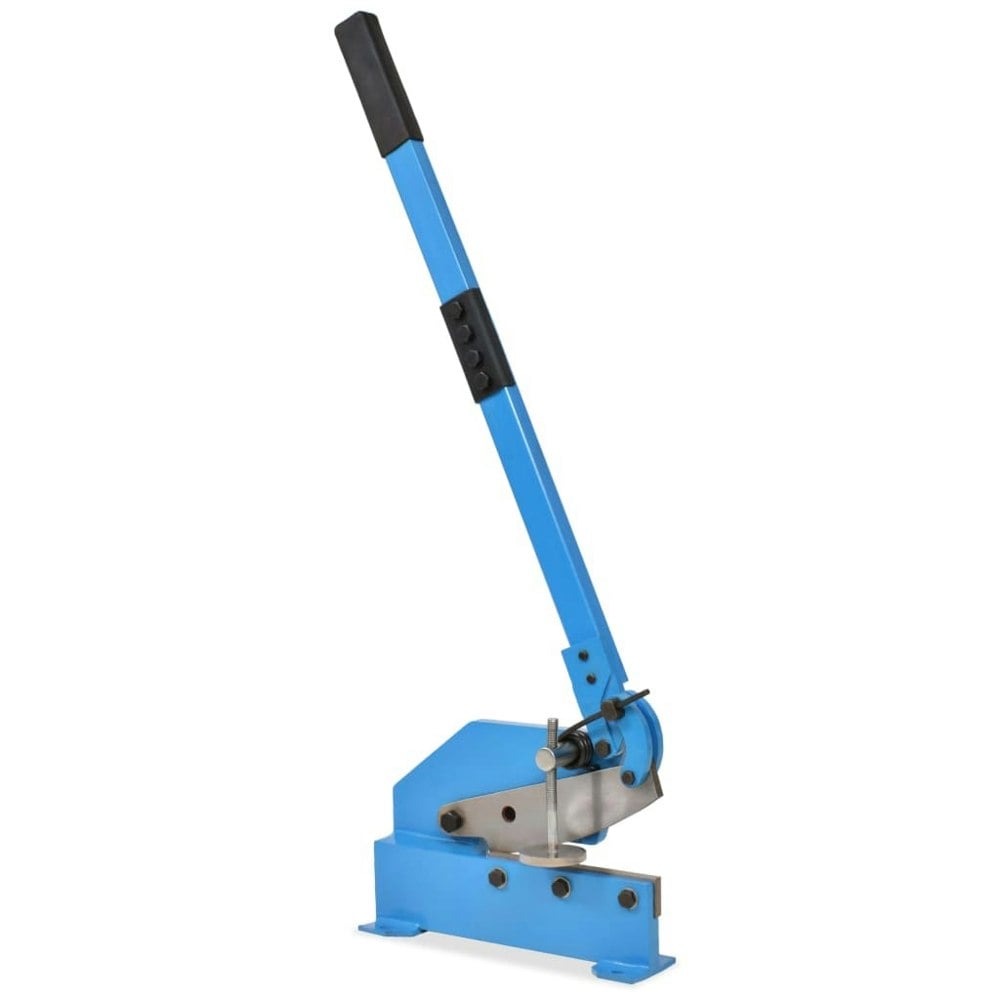

Berkfield Hand Lever Shear 200 mm Blue

Built for manual metal cutting, the Berkfield hand lever shear combines a hardened steel 200 mm blade with a sturdy bench-mountable format. It is suited to cutting sheet metals, mild sheet plates, and both flat and round bars where controlled hand-operated cutting is required.

An automatic spring return lever system supports repeated use, while the soft-grip handle offers a more secure and comfortable hold. Four bottom fastening plates allow the shear to be fixed to a workbench or other hard surface for added stability during operation.

Key features

• Hardened steel blade
• Blade length: 200 mm
• Suitable for sheet metals, mild sheet plates, and flat and round bars
• Maximum cutting thickness for steel sheet: 6 mm
• Maximum cutting thickness for rods: 13 mm
• Automatic spring return lever system
• Soft-grip handle

Specifications

• Colour: Blue
• Maximum cutting size: 70 x 6 mm (L x T)
• 4 bottom fastening plates

Sizing

200 mm blade length

Rackhams Reference : 6T3Q2DK33A
