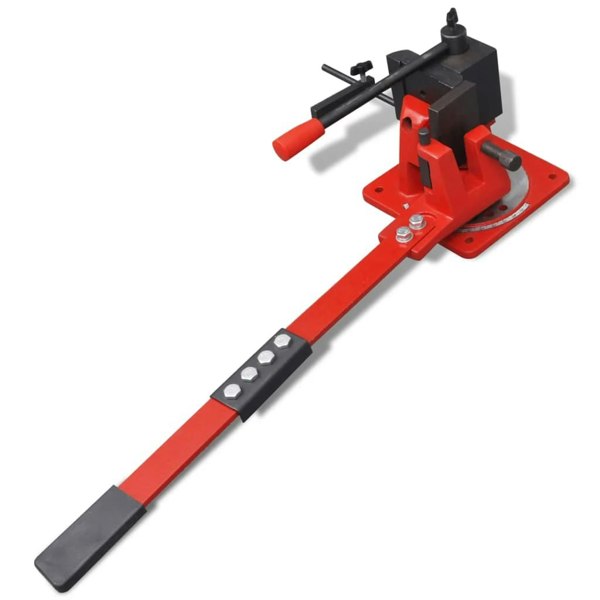

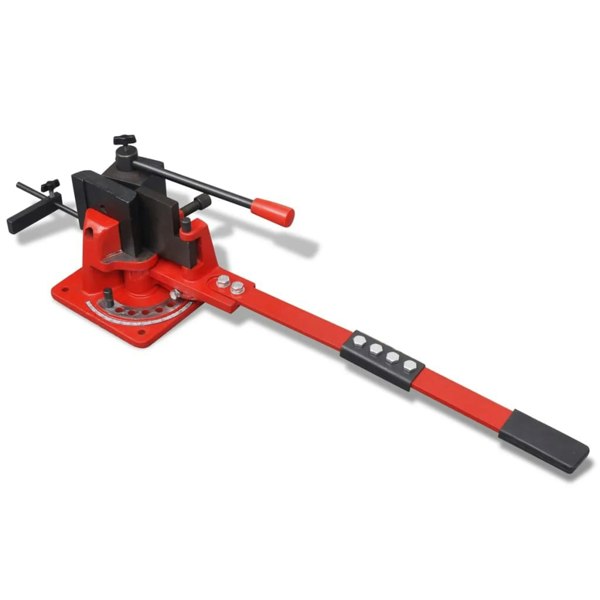

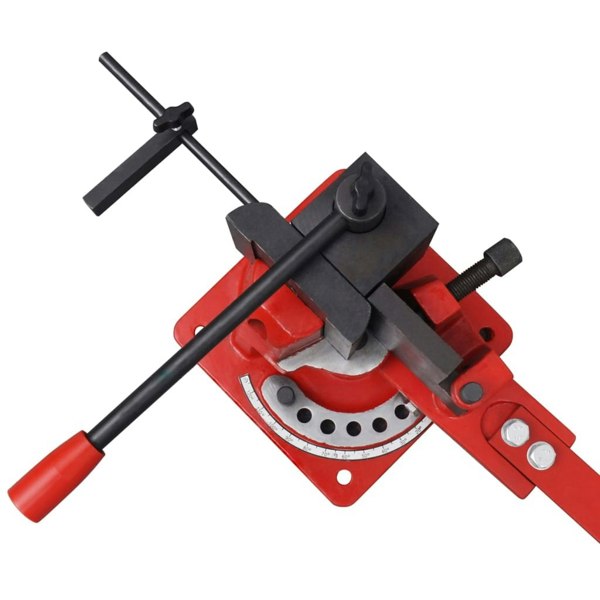

Berkfield Manually Operated Universal Steel Pipe Bending Machine

Designed for accurate forming work in steel, the Berkfield manually operated universal bender supports both cold and hot bending across a range of stock types. It handles round, flat, angle and square steel, with a maximum bending angle of 120 degrees for controlled shaping in workshop or on-site settings.

Cast iron construction keeps the unit robust while remaining compact for mobile use. A long bending lever helps apply force to the workpiece with less effort, and the bender can be mounted to a workbench for stable, repeatable operation. Supplied with four die plates, it enables precise bending for a wide variety of designs.

Key features

• Manually operated universal bender for round, flat, angle and square steel
• Suitable for cold and hot bending
• Maximum bending angle of 120 degrees
• Cast iron construction
• Compact format suited to mobile use
• Long bending lever for easier force application
• Mounts to a workbench for stable operation
• Four die plates for precise, varied bending work

Specifications

• Material: Cast iron
• Number of die plate: 4
• Maximum bending angle: 120 degrees

Typical use cases

• Cold bending flat steel: 100 x 5 mm (W x T)
• Cold bending square steel: 16 x 16 mm (L x W)
• Cold bending round steel: Ì÷ 18 mm
• Cold bending angle steel: 60 x 8 mm (W x T)
• Hot bending flat steel: 100 x 15 mm (W x T)
• Hot bending square steel: 22 x 22 mm (L x W)
• Hot bending round steel: Ì÷ 22 mm
• Hot bending angle steel: 100 x 12 mm (W x T)

Rackhams Reference : WLP5AT3IBR
