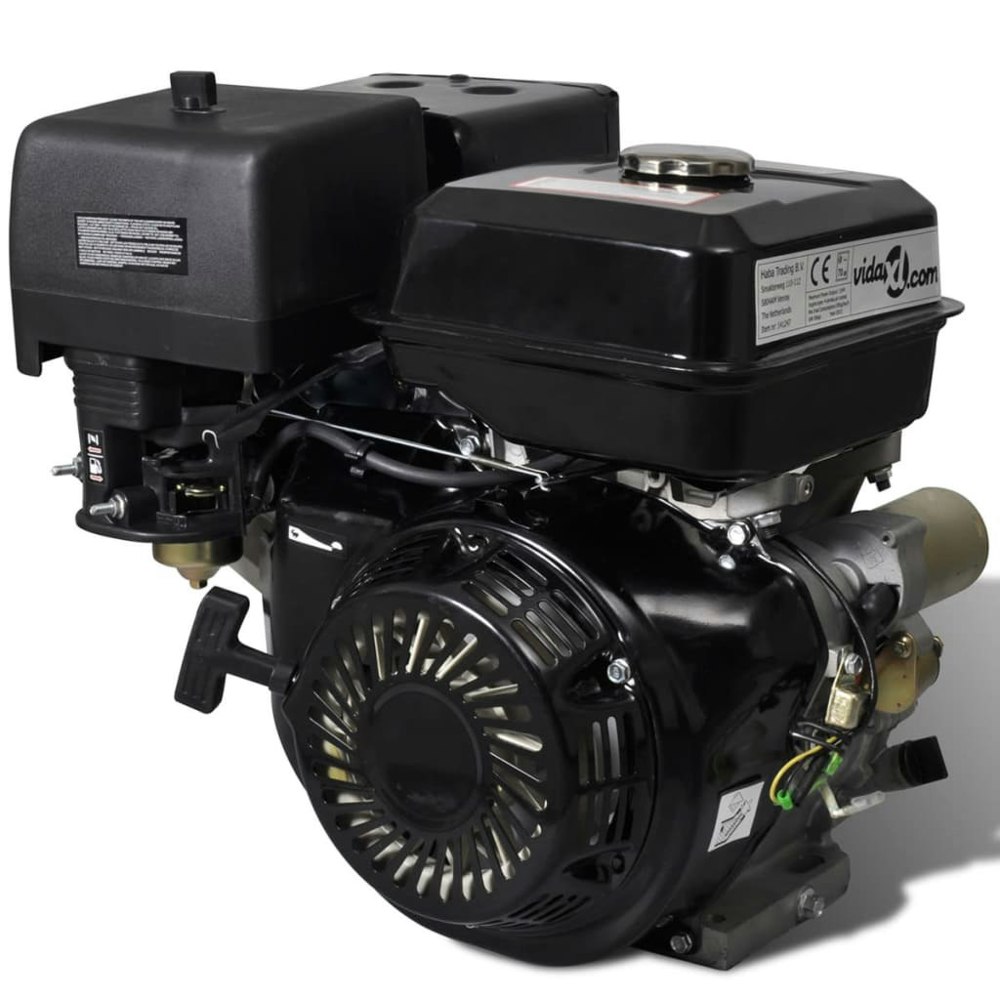

Berkfield Petrol Engine 15 HP 11 kW Black

Designed for equipment that needs dependable petrol power, the Berkfield Petrol Engine is a 15 HP / 11 kW replacement motor suited to a wide range of machines. With a 423 cc single-cylinder, 4-stroke, air-cooled design, it provides a rated power output of 11 kW at a rated speed of 3600 r / min.

Starting is supported by both recoil and electrical start. The recoil system offers a straightforward pull-start option, while the electric start can function when connected to an external battery (battery not included). Noise is reduced with a fitted muffler, and a fine air filter supports cleaner airflow. A 25 mm drive shaft and compact 48 x 31 x 43 cm footprint help make installation practical across compatible applications.

Key features

• 423 cc single cylinder, 4-stroke, air-cooled petrol engine
• Maximum power output: 15 HP / 11 kW
• Rated power output: 11 kW at 3600 r / min
• Starting system: recoil and electrical start
• Electric start can function when connected to an external battery (battery not included)
• Muffler to reduce noise
• Fine air filter
• Drive shaft diameter: 25 mm

Specifications

• Brand: Berkfield
• Maximum power output: 15 HP / 11 kW
• Rated power output: 11 kW
• Displacement: 423 cc
• Rated speed: 3600 r / min
• Engine type: single cylinder, 4-stroke, air-cooled
• Torque: 23 nm
• Bore: 90 mm
• Stroke: 64 mm
• Compression ratio: 8:1
• Starting system: recoil and electrical start
• Fuel capacity: 6. 5 L
• Engine oil system capacity: 1. 1 L
• Drive shaft: dia. 25 mm
• Size: 48 x 31 x 43 cm (L x W x H)
• N. W. : 35. 6KGS

Typical use cases

• Water pumps
• Plate compactors
• Log splitters
• Mowers
• Single axles
• Scarifiers
• Road sweepers
• Snow blowers
• Power generators
