Berkfield Rear Axle Bearing Sub Frame Tool Set for Renault Laguna

From Berkfield, this rear axle bearing sub frame tool set is made from heavy-duty carbon steel and intended for disassembly and assembly of the rear axle, including ball joints. It is suitable for Renault & Laguna (2001 - 2007) and supports replacement of the sub-frame bushing.

The fine thread and thrust bearing allow the pressure sleeve to be fitted without causing damage. A blow moulded plastic storage case keeps the components organised for storage and transport, with a design suited to regular workshop use.

Key features

• Heavy-duty carbon steel construction
• Suitable for Renault & Laguna (2001 - 2007)
• For disassembly and assembly of the rear axle (ball joints)
• For replacing the sub-frame bushing
• Weight: 2.95 kg

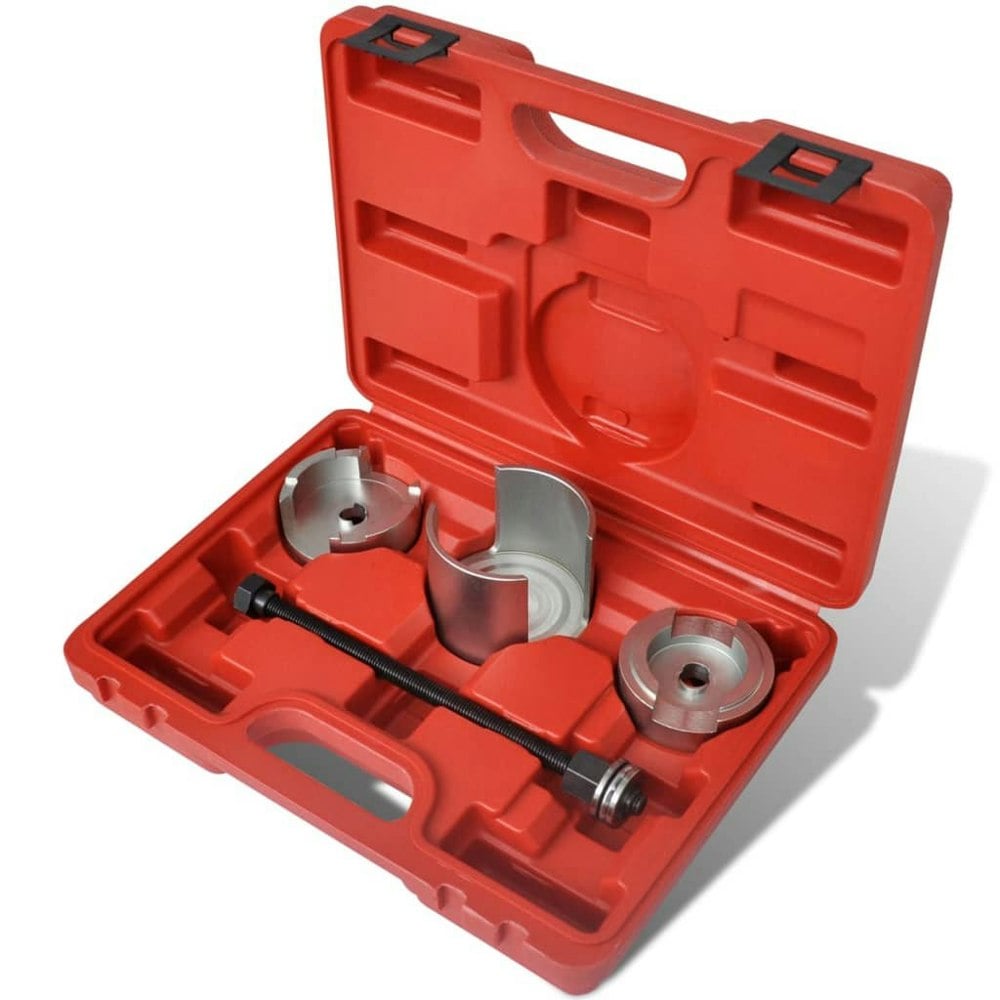

What's included

• 1 pressure sleeve
• 2 pressure pieces
• 1 spindle
• 1 moulded plastic storage case

Sizing

• Pressure sleeve: 15.6 mm bore diameter, 88.2 mm outer diameter, 72.2 mm high, with 2 opposing recesses, 43.3 mm wide, 62.3 mm high
• Pressure piece: 15.6 mm hole diameter, 80 mm outer diameter, 30.2 mm high, with 2 opposing recesses, 42.2 mm wide, 19.9 mm high
• Pressure piece: 15.6 mm hole diameter, 77.6 mm outer diameter, 21 mm high, with 2 opposing recesses, 31.1 mm wide, 9.7 mm high
• Spindle: 247 mm long, M12 x 1,75 mm
• Storage case: 33 x 25 x 9 cm (L x W x T)

Vehicle compatibility

Renault & Laguna (2001 - 2007)

Rackhams Reference : WQM225M9BY
