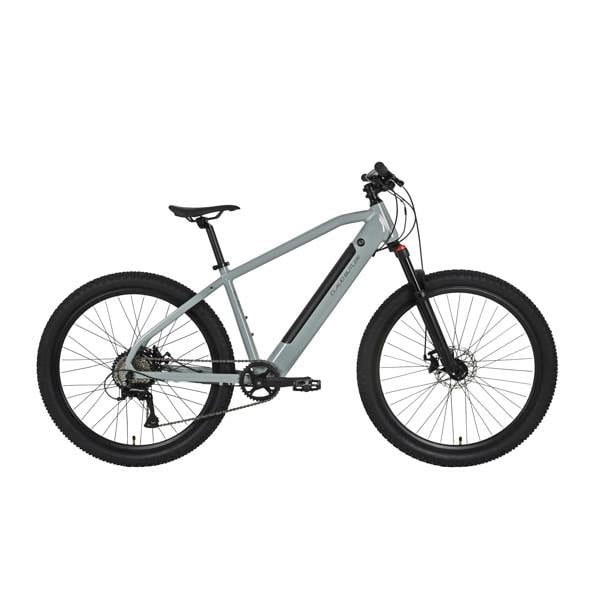

Claud Butler Ridge 1.0 Electric Mountain Bike

Built for off-road exploring, Claud Butler’s Ridge 1.0 electric mountain bike pairs confident trail geometry with a neatly integrated power system. A Bafang rear hub motor delivers 32Nm of torque, with 3 power modes selected from the handlebar display; battery level and speed are shown at a glance, and walk assist supports pushing the bike when on foot.

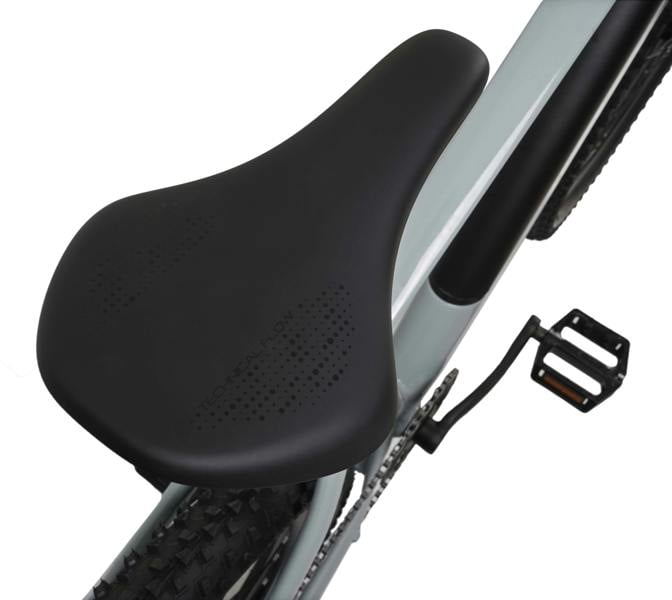

An integrated 375Wh battery provides up to 40 miles/64km of range and recharges from flat in 5 hours. Charging can be done with the battery fitted to the bike or removed using the provided keys, while a key lock adds security when parked. Rolling on 27.5” (650b) wheels with 2.35” wide tyres, it’s equipped with Shimano Altus 1x8 speed gearing, a 100mm travel suspension fork with hydraulic lock out, and cable disc brakes. Finishing touches include super-wide 780mm bars with a short 50mm stem, lock-on grips, a Selle Royal saddle, and a bell.

Key features

• Bafang rear hub motor with 32Nm of torque
• Integrated 375Wh battery with up to 40 miles/64km range
• Charges from flat in 5 hours
• Battery can be charged on the bike or removed using the provided keys
• Key lock for battery security
• 3 power modes plus walk assist
• 27.5” (650b) wheels with 2.35” wide tyres

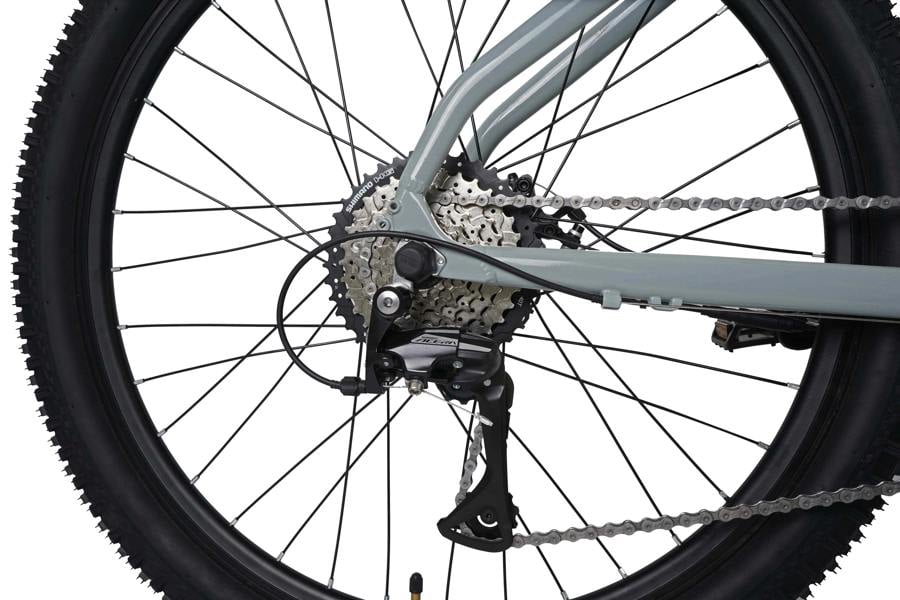

• Shimano Altus 1x8 speed gearing
• 100mm travel suspension fork with hydraulic lock out
• Cable disc brakes

Motor and battery

Motor

Bafang rear hub motor system delivering 32Nm of torque

Battery

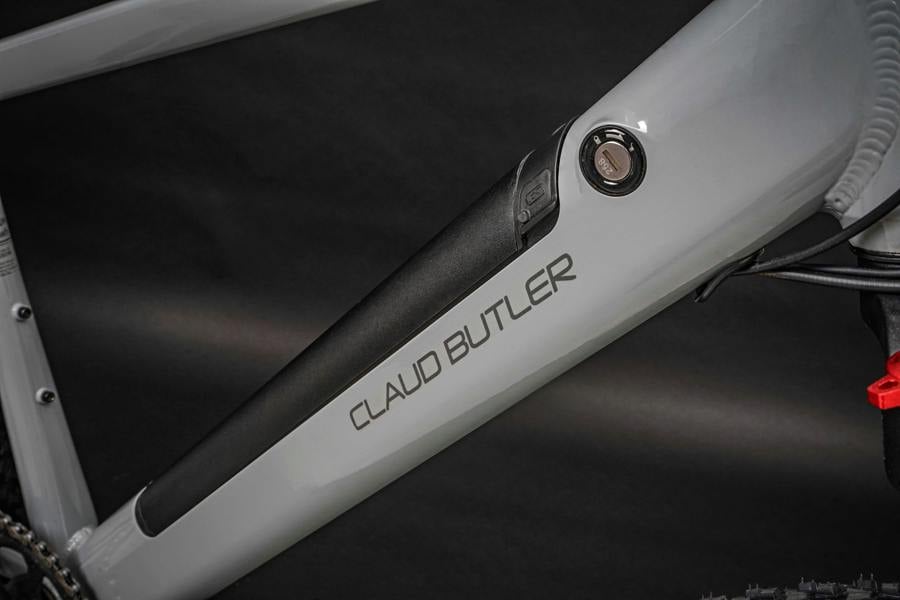

Integrated 375Wh battery with up to 40 miles/64km range, 5-hour charge time from flat, removable using the provided keys and secured with a key lock

Display and controls

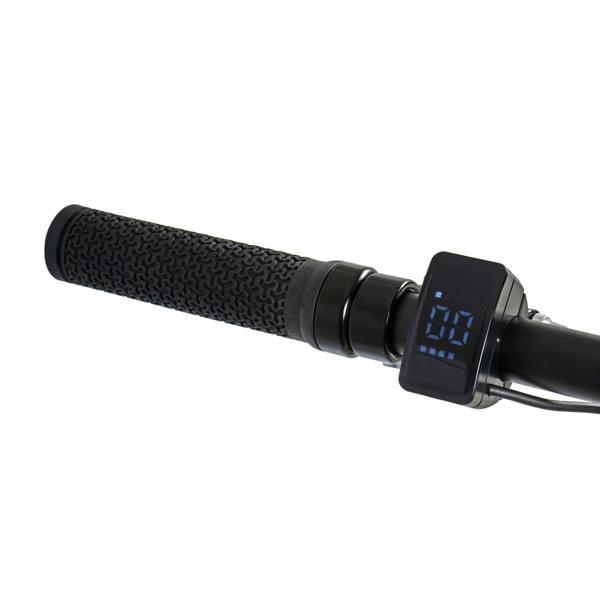

Handlebar display showing battery level and speed, with selection of 3 power modes and walk assist

Sizing

• Medium: recommended for riders 5'4" to 5'10" (162cm to 178cm)
• Large: recommended for riders 5'10" to 6'2" (178cm to 188cm)

Assembly and setup

• Arrives 85% assembled in the manufacturers packaging and needs to be built when it arrives
• Basic set of tools supplied to aid assembly
• Recommended to take the bike to a local cycle shop to complete assembly

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : XNXT91SX4I
