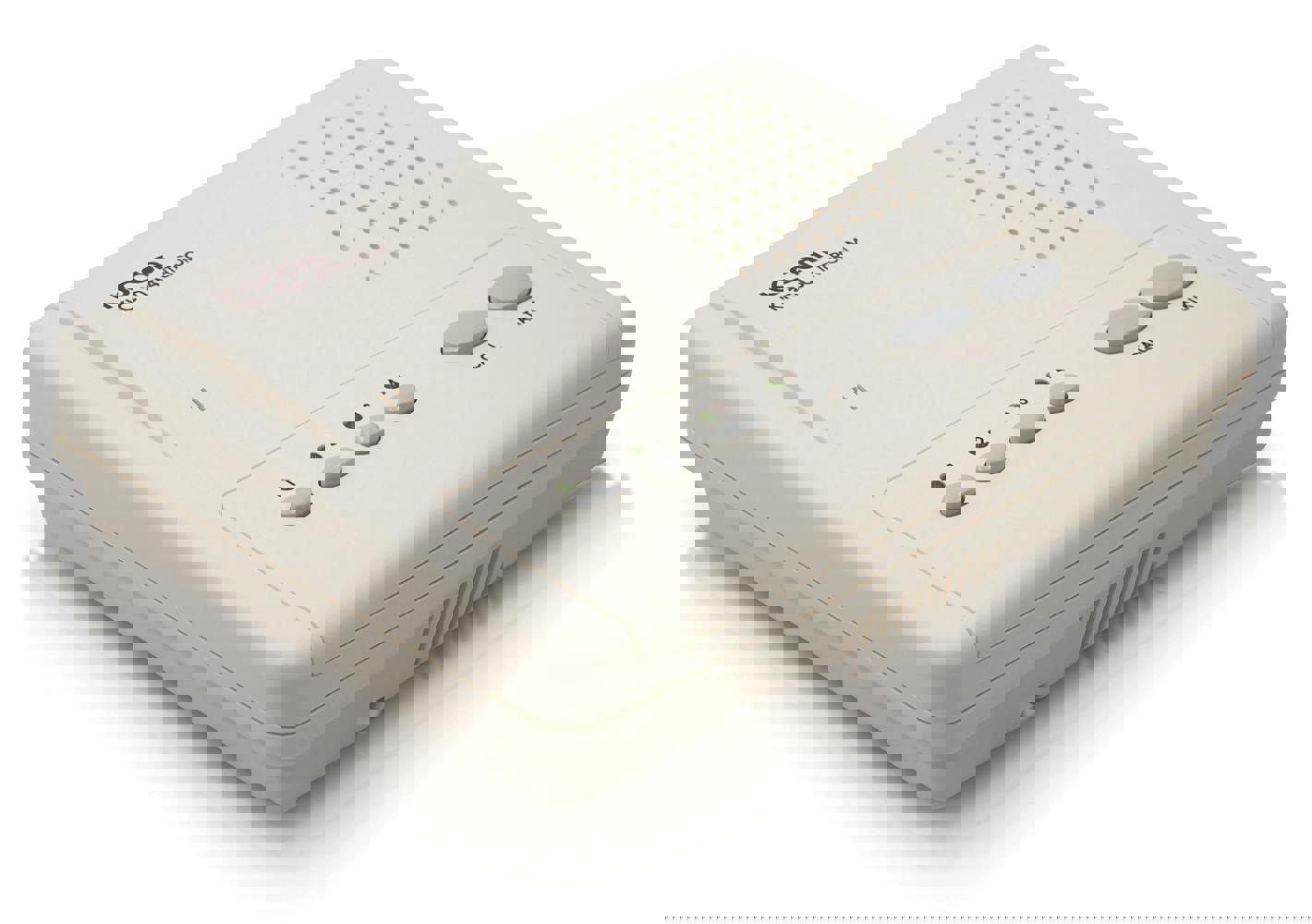

Eagle Kic304 Intercom

Built for straightforward internal communication, the Eagle Kic304 is a desk master station intercom that supports a system of up to 4 P152L slave stations. Four dedicated call buttons provide direct station selection, each with an integrated LED for clear call indication.

A ring volume control allows the call level to be adjusted to suit the environment. When a slave unit is called, the connection opens immediately, adding a monitoring function within the system. One power supply is required per system, with a 6 VDC adaptor specified (P003B not supplied) and continuous current of 30 mA. Installation requires a 2-core cable to each station, with a maximum transmission range of 200 m.

Key features

• Desk master station intercom
• Supports up to 4 P152L slave stations
• 4 call buttons with LED indication
• Ring volume control
• Immediate connection on calling for monitoring function
• One power supply required per system
• Requires 2-core cable to each station
• Maximum transmission range: 200 m

Specifications

• Power adaptor: 6 VDC (P003B not supplied)
• Continuous current: 30 mA

Rackhams Reference : 3N2J7T2T5E

Product Features

• Adaptor 6 V DC (not supplied)
• Continuous Current: 30 mA
• Cable required: 2 core to each station
• Max Transmission Range: 200 m
