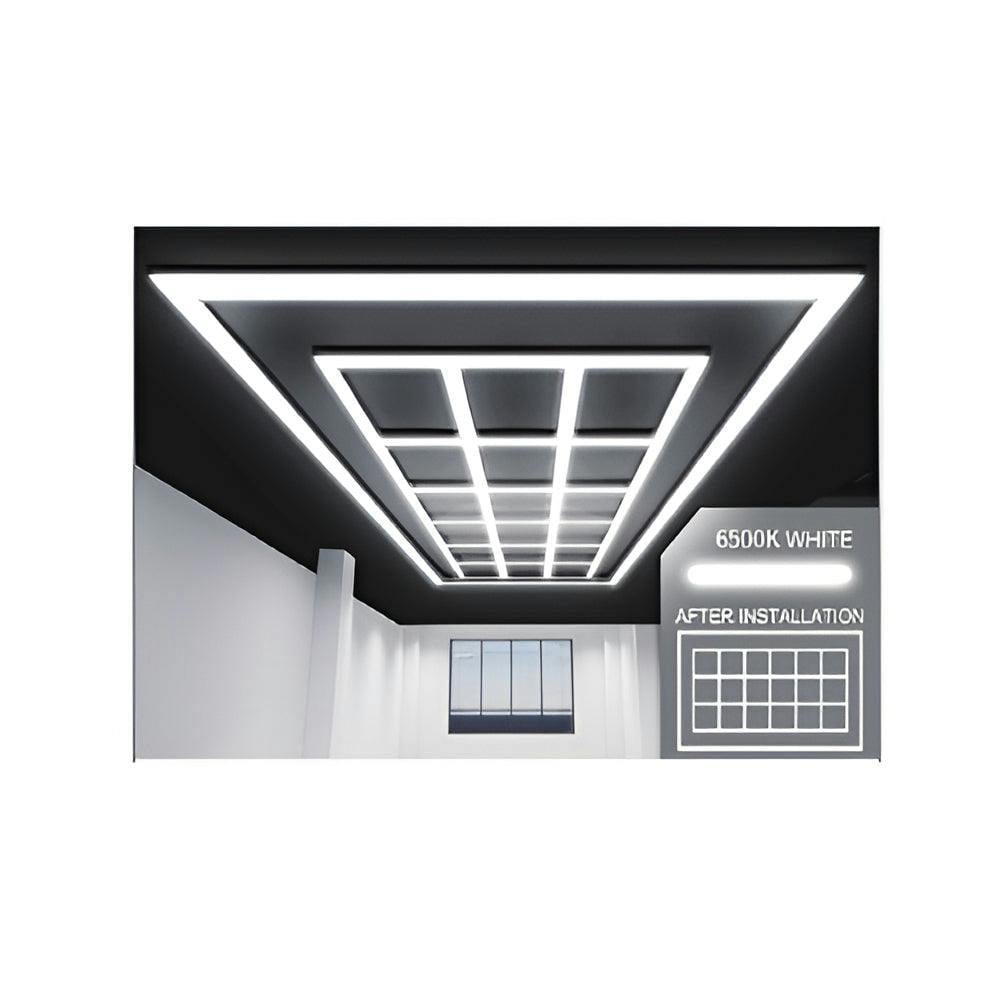

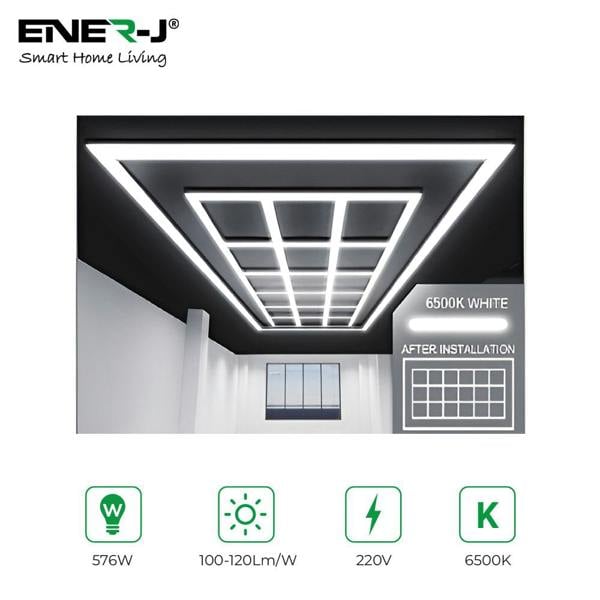

Ener-J 576W Designer LED Ceiling Light with Frame, 18 Square Grid with Border, Commercial Interior Lighting

Ener-J presents a modular LED ceiling light system with frame, arranged in an 18-square grid with border for large interior spaces. The aluminium shell and PC connectors give the fitting a clean, technical finish, while the 6500K colour temperature and luminous efficacy of 110LM/W support bright, even illumination across commercial environments.

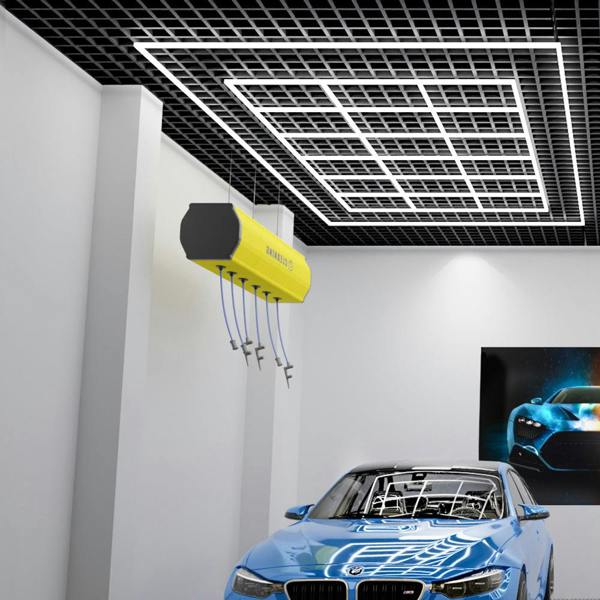

Suitable for garages, car showrooms, gyms, office receptions and meeting rooms, this plug-and-play design can be fixed directly to the ceiling or suspended. The set includes the required connectors and mounting accessories, with a configuration sized for an applicable venue of 4000 x 6000mm.

Key features

• Material: PC connectors and aluminium shell
• 18 square grid with border
• Total power: 576W
• Colour temperature: 6500K
• Luminous efficacy: 110LM/W
• Mounting options: direct ceiling fixing or suspended installation

Specifications

• Voltage: AC110V-250V 50HZ
• 565mm light tube power: 9W
• 1175mm light tube power: 18W
• Light surface: 22mm
• Ballast life: 20,000 hours
• Applicable venue: 4000 x 6000mm

Sizing

• Size: 4840 x 2430mm
• Measurement: 121 x 23 x 19cm

What's included

• 45 x 565mm light tube
• 12 x 1175mm light tube
• 8 x 180° two-way connector
• 6 x 90° two-way connector
• 10 x 90° two-way connector (十)
• 16 x 90° T connector
• 2 x power cord

How to install

• Connect using the supplied connectors and accessories
• Screw directly to the ceiling using the mounting brackets, or suspend with a frame and plastic zip ties
• Plug-and-play design connects to a standard wall socket

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : PR6JPIIGZ7
