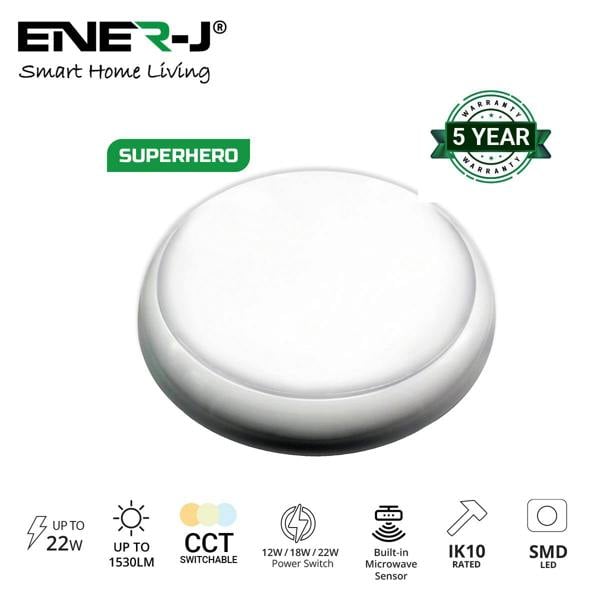

ENER-J 9-in-1 LED Bulkhead Light 12W-22W Switchable, CCT Adjustable, Microwave Sensor, 320mm, IP65 IK10, 3-Year Warranty

The ENER-J 9-in-1 LED bulkhead combines flexible output settings with a durable specification suited to both residential and commercial settings. Finished in matt white with an opal PC cover, this 320mm fitting offers selectable wattages of 12W, 15W and 18W, along with adjustable colour temperatures of 3000K, 4000K and 6000K. A built-in microwave sensor provides automatic lighting control, while the non-dimmable design keeps operation straightforward.

With IP65 protection against water and dust and an IK10 impact rating, this bulkhead is well suited to bathrooms, public spaces and outdoor areas. The fitting also features a push-fit connector and 3-way fast fix terminal block for a secure installation setup.

Key features

• Matt white textured finish with opal PC cover
• IP65 rated
• IK10 impact rated
• Selectable wattage: 12W / 15W / 18W
• Selectable colour temperature: 3000K / 4000K / 6000K
• Built-in microwave sensor
• Non-dimmable

Specifications

Lighting performance

• Lumen output: 1020Lm / 1275Lm / 1530Lm
• Luminous efficacy: 85 Lm/W
• Beam angle: 120º
• CRI: >80
• SDCM: <6
• Lifetime: 35,000 hours
• Energy rating: E

Electrical

• Product voltage: 220-240V
• Input voltage: 220-240V AC
• Rated voltage: 230V AC
• Hertz: 50/60
• Power factor: >0.8
• Class 2 (no earth required)

Sensor details

• Stand-by power: ≤0.1W
• Operating frequency: 5.8 GHz ±75 MHz, ISM
• Transmitting power: 1mW max.
• Hold time: 5s / 30s / 1min / 3min / 5min / 10min / 20min / 30min
• Detection area: 100% / 75% / 50% / 25%
• Daylight sensor: 2Lux / 10Lux / 25Lux / 50Lux / Disable
• Detecting radius: 0.3m/s ≥3.5m, 1m/s ≥2.5m (mounting height 3m)
• Mounting height: 4m max
• Detecting angle: 150º

Environmental

• Operating temperature: -20°C to 45°C
• Sensor operating temperature: -25°C to 60°C
• Storage temperature: -40°C to 80°C
• Humidity: ≤85%

Sizing

320mm

Support & warranty

3-year warranty

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : MKL7D73CAJ
