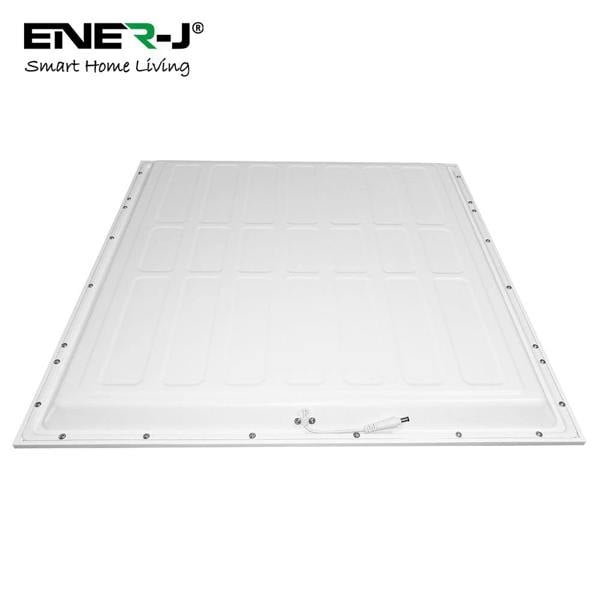

ENER-J Backlit LED Panel 40W, 60x60cms, TPA Diffuser, Premium Range, Surface Mounting Frames, 4000 Lumens 6500K | Pack of 6

ENER-J backlit LED panels bring a clean, high-output lighting solution for T-grid ceiling installations. Each panel delivers 40W and 4000 lumens, with a 6500K light output and a TPA diffuser for an even finish. This premium range design is made for in-ceiling integration and suits commercial or utility settings where broad, consistent illumination is required.

Built with an aluminium and PC construction, these panels use an Epistar-SMD 4014 light source and a flicker-free LIFUD driver. A frost lens, 120° beam angle and UGR 19 glare rating support controlled light distribution, while CE and RoHS certification, IP40 protection and Class II construction add to the technical specification. Surface mounting frames and emergency battery packs are available separately.

Key features

• Pack of 6
• Material: Aluminium and PC
• 40W output
• 4000 lumens
• 6500K
• Flicker-free LIFUD driver
• IP40 rating
• Model: Backlit LED Panel 40W, 60x60cms

Specifications

• Power factor: 0.95
• Voltage: AC 220-240V
• Multi-voltage: 85-265V AC
• Output: 25-42V DC // 1000 mA
• Intensity level: 0.177 A
• Frequency: 50-60 Hz
• Protection class: II
• Luminous efficiency: 100 lm/W
• LED performance: 120 lm/W
• Light source: Epistar-SMD 4014
• Lens type: Frost
• Energy class: A+
• Beam angle: 120°
• CRI: 80
• UGR: 19
• Lifespan: 20,000 hours
• Working temperature: -20ºC ~ +45ºC
• Certifications: CE and RoHS

Sizing

595 x 595 x 10 mm

Please note

• For in-ceiling integration on T-grid ceilings
• Surface mounting frames and emergency battery packs are available separately

Support & warranty

3-year warranty.
