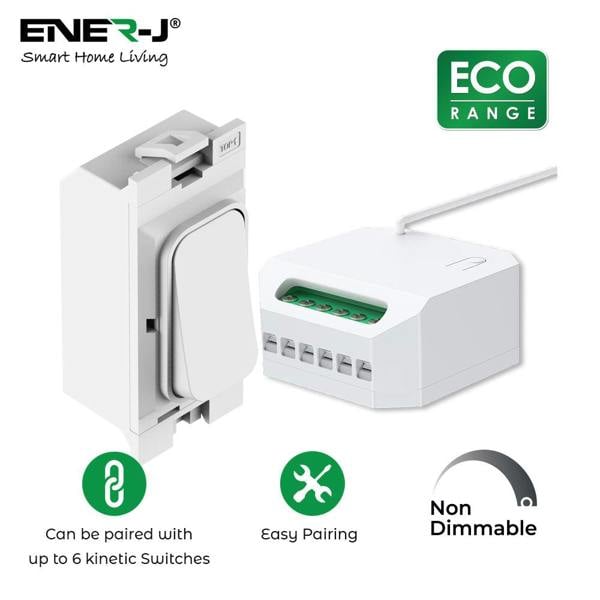

ENER-J Grid Switch with Non-Dimmable 5A RF Mini Receiver

ENER-J brings wireless switching into a cleaner, more adaptable format with the KineticGrid, a control solution that combines a 1 gang wireless kinetic grid switch with a non-dimmable 5A RF mini receiver. Suitable for upgrading existing switch arrangements, it allows a traditional switch to be converted into a 2-way module while adding wireless control through compatible kinetic switches.

The receiver works with ENER-J ECO Range Series wireless kinetic switches, while the grid switch fits into an existing grid plate for a more integrated finish. Kinetic power removes the need for batteries, wiring or drilling at the switch point, making it a practical option for a wide range of setups. With indoor control distances stated at up to 20 metres for the receiver and 30m for the grid switch, plus IP65 protection for outdoor use, this set offers flexible control across different spaces.

Key features

• Includes 1 gang wireless kinetic grid switch and non-dimmable 5A RF mini receiver
• Converts a traditional switch into a 2-way module
• Powered by kinetic energy
• No wiring, batteries or drilling required for the switch
• Maximum load: 5A
• IP65 rated for outdoor use
• Controls up to 10 receiver modules
• Compatible with HAGER

Specifications

Grid switch

• Work type: Push button
• Power source: Micro Energy Acquisition and self-powered
• Communication model: FSK
• Work frequency: 433Hz
• Number of keys: 1 (1 gang)
• Lifetime: 200,000 times on/off
• Control distance: 30m (indoor)
• Control method: Pairing with ECO Series Receiver Modules
• Compatibility: HAGER

Receiver

• Non-dimmable 5A RF mini receiver
• Maximum load: 5A
• Receiver range: up to 20 meters indoors and 80 meters outdoors
• Compatible with ENER-J ECO Range Series Wireless Kinetic Switches
• Self-protected and fused

Support & warranty

• 3 year warranty
