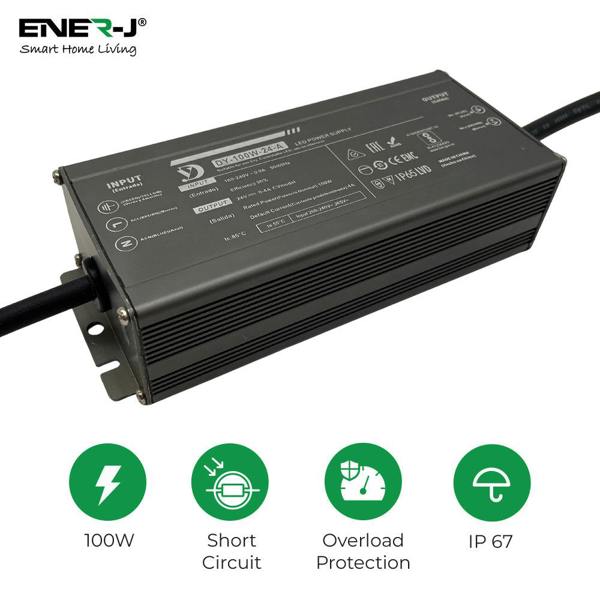

ENER-J Waterproof 100W 24V Power Supply, Constant Voltage LED Driver (IP65/IP67 Rated)

Built for dependable LED power delivery, the ENER-J Waterproof 24V Constant Voltage LED Driver provides a stable 24V DC output in a sealed aluminium housing. This 100W power supply is suitable for indoor and outdoor installations, with an IP65 rating for protection against water and dust.

Its non-dimmable constant voltage design supports a range of LED and electronic applications including LED strips, signage, aquarium lights and landscape lighting. A wide 180–265V AC input range allows flexible installation, while integrated protection against short circuit, overload, over-voltage, over-current and over-temperature supports safe, consistent operation over time.

Key features

• 100W power output
• Constant 24V DC output
• Non-dimmable
• IP65 waterproof rating
• Aluminium housing
• Wide 180–265V AC input range
• Low-noise operation
• Model number: HRX-100W-24V

Specifications

• SKU: T693
• Input voltage: 180–265V AC
• Output voltage: 24V DC
• Output current: 4. 2A
• Power output: 100W
• Waterproof rating: IP65
• Material: Aluminium

Sizing

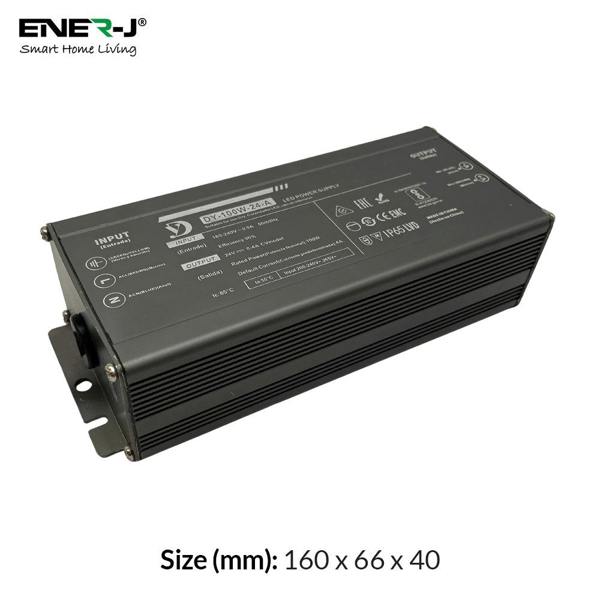

160mm W x 66mm D x 40mm H

Safety information

• Short circuit protection
• Overload protection
• Over-voltage protection
• Over-current protection
• Over-temperature protection

Rackhams Reference : 5BNYJ76A5J
