ENER-J Wireless Kinetic 3 Gang Switch ECO SERIES (Silver body) with 3 Non Dimmable 5A RF Receivers. No Wiring, No Batteries, No Drilling Holes

For straightforward lighting control without running new switch wiring, the ENER-J Wireless Kinetic 3-Gang Switch with 3 RF Receivers brings together a self-powered switch and three non-dimmable receiver modules in one complete set. This wireless lighting control system includes a silver-finish 3-gang kinetic switch and one 500W / 5A RF receiver for each gang, making it suitable for retrofit projects, multi-way switching and areas where cabling is difficult.

The switch generates its own power kinetically, so there are no batteries to replace. With 433MHz RF operation, it offers a wireless range of up to 30m indoors and 80m outdoors, while the IP55-rated switch is suitable for indoor and outdoor use. This combination works well for garden lighting, kitchen and hallway updates, rental properties, renovations, sheds, garages and workshops.

Key features

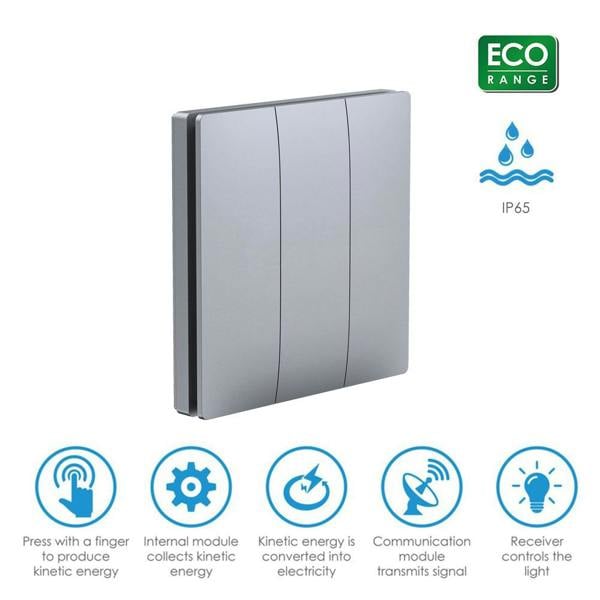

• Wireless 3-gang kinetic switch in a silver finish
• Includes 3 non-dimmable RF receiver modules
• 500W maximum load per receiver
• 5A current rating per receiver
• IP55-rated switch
• Up to 30m indoor / 80m outdoor wireless range
• 200,000-cycle switch lifetime
• Suitable for retrofit and multi-way switching layouts

Specifications

Switch

• Power: self-generated kinetic power
• Wireless frequency: 433MHz RF
• Range: 30m indoor / 80m outdoor

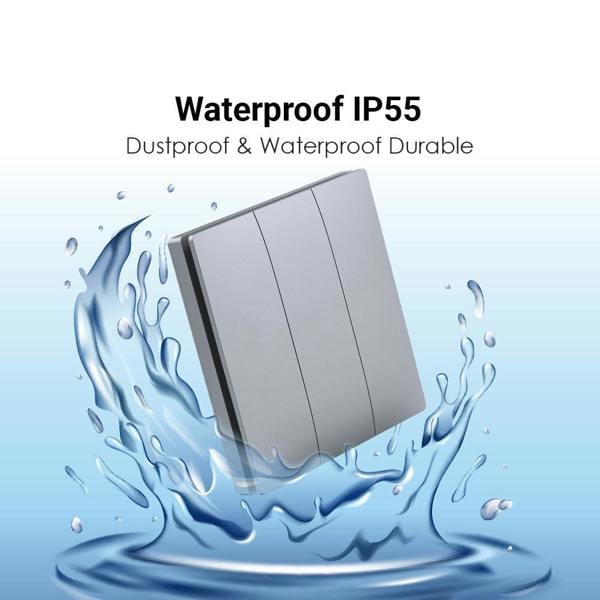

• Waterproof rating: IP55
• Lifetime: 200,000 cycles

Receiver modules

• Quantity: 3
• Load: 500W max
• Type: non-dimmable
• Current: 5A
• Voltage: AC 100–250V
• Frequency: 433MHz RF
• Suitable for ceiling roses and junction boxes

Sizing

85 × 85 × 15 mm

Installation

• Install each RF receiver at the lighting point between the mains supply and fixture.
• Pair receivers with each gang on the kinetic switch via RF.
• The switch can be mounted with screws or adhesive.
• No neutral is required at the switch point.

In the box

• 1 × Wireless 3-gang kinetic switch
• 3 × RF receiver modules

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : WR2FJU6BMP
