Fixaball M16 Throughbolts A4 Stainless Steel Masonry Anchor ETA Option 7

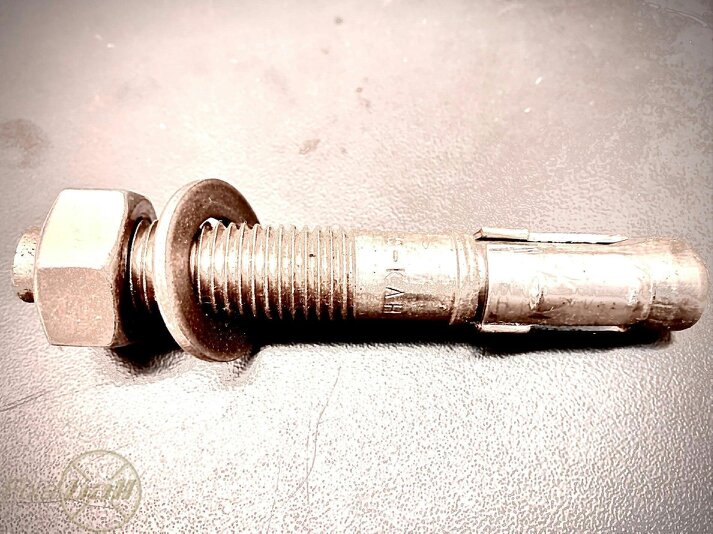

For heavy-duty fixing into non-cracked concrete, masonry and non-porous stone, this Fixaball M16 throughbolt masonry anchor is manufactured from A4/316 stainless steel. It is a torque controlled expansion anchor for concrete over C20/25 strength, with the hole diameter matching the bolt diameter for through fixing.

Suitable where constant exposure to water, air or chemicals is a factor, the A4/316 grade offers marine grade corrosion resistance. The range includes multiple anchor lengths, making it suitable for different fixture thicknesses while retaining the same M16 diameter.

Key features

• M16 diameter
• A4/316 stainless steel
• ETA Approved Option 7
• Torque controlled expansion anchor
• Suitable for non-cracked concrete, masonry, brick, blocks and non-porous stone
• For concrete over C20/25 strength

Specifications

• Installation temperature range for base material: -5 / + 40 ºC (80 ºC for a short period of time)
• Hole diameter matches bolt diameter for through fixing
• A4/316 has a similar tensile strength to 8.8 high tensile steel

Available options

• 16mm x 115mm
• 16mm x 130mm
• 16mm x 150mm
• 16mm x 180mm

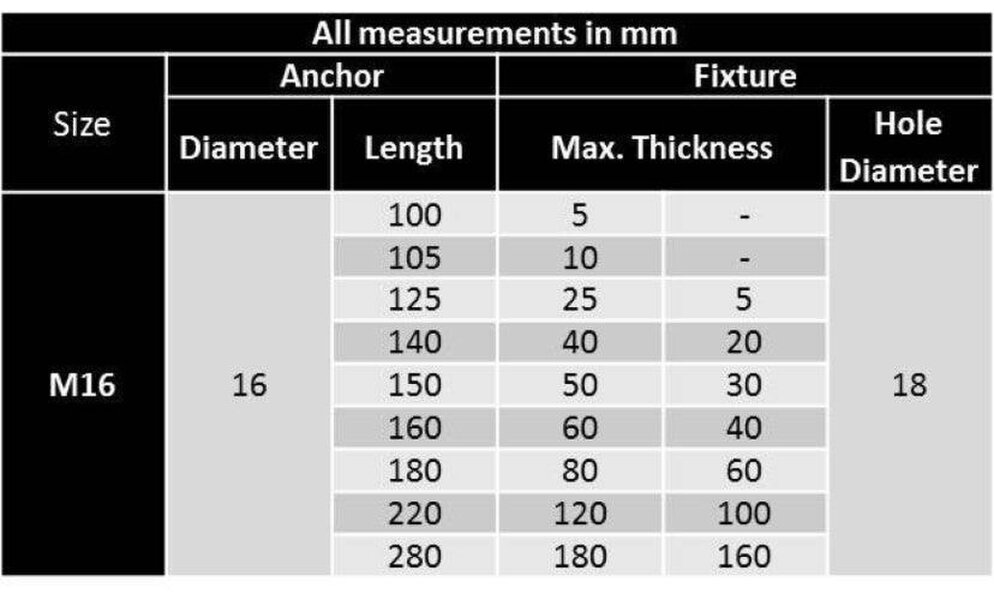

Sizing

• 16mm diameter, 100mm anchor length, 5mm max. fixture thickness, 18mm hole diameter
• 16mm diameter, 105mm anchor length, 10mm max. fixture thickness
• 16mm diameter, 125mm anchor length, 25mm max. fixture thickness, 5mm hole diameter
• 16mm diameter, 140mm anchor length, 40mm max. fixture thickness, 20mm hole diameter
• 16mm diameter, 150mm anchor length, 50mm max. fixture thickness, 30mm hole diameter
• 16mm diameter, 160mm anchor length, 60mm max. fixture thickness, 40mm hole diameter
• 16mm diameter, 180mm anchor length, 80mm max. fixture thickness, 60mm hole diameter
• 16mm diameter, 220mm anchor length, 120mm max. fixture thickness, 100mm hole diameter
• 16mm diameter, 280mm anchor length, 180mm max. fixture thickness, 160mm hole diameter

Safety information

• Check the concrete strength, grade and edge distance before installation.
• Use only in compact, crack-free concrete.
• Minimum installation depth, anchor-to-anchor distances and anchor-to-edge distances must be respected.
• Drill perpendicular to the base material surface and follow the specified minimum depth and diameter.
• Take special care when drilling near reinforcement areas.
• Clean holes thoroughly to remove dust and debris before installation.
• When temperature is below 0ºC, ensure water does not seep into the hole.
• Do not apply any intermediate layer between the material to be fixed and the washer.
• Apply the specified torque with a torque wrench.
