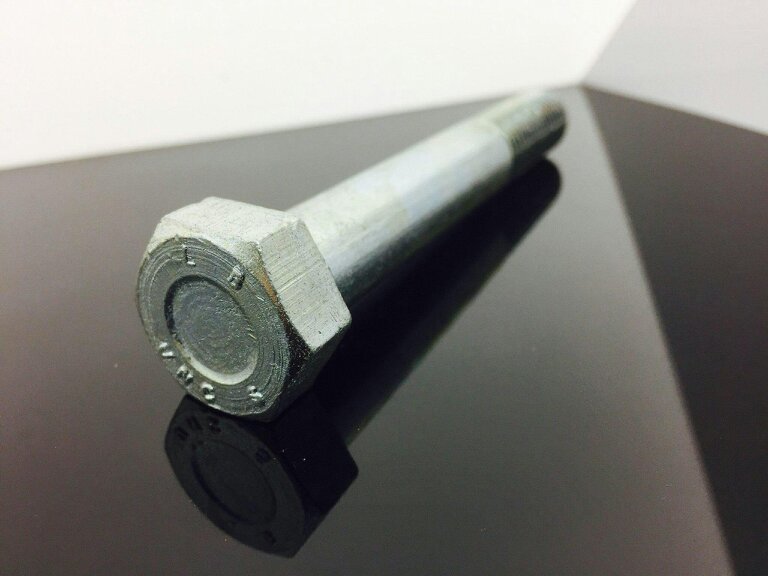

Fixaball UNC 3/8" Hex Bolt Set Screws High Tensile 8.8 Zinc BZP

For inch-threaded fastening applications, these Fixaball UNC 3/8" hexagon head bolts and set screws are supplied in high tensile grade 5 steel, comparable with metric 8.8, with a zinc/BZP/Cr3 finish. The thread specification is UNC 3/8" with 16 T.P.I. (threads per inch).

This range includes fully threaded hexagon set screws and partially threaded hexagon bolts. Fully threaded options are available in shorter lengths, while longer sizes are supplied as partially threaded bolts with a plain shank.

Available options

• 3/8"-16x1/2" (FT) hexagon set screw
• 3/8"-16x5/8" (FT) hexagon set screw
• 3/8"-16x3/4" (FT) hexagon set screw
• 3/8"-16x1" (FT) hexagon set screw
• 3/8"-16x1 1/8" (FT) hexagon set screw
• 3/8"-16x1 1/4" (FT) hexagon set screw
• 3/8"-16x1 1/2" (PT) hexagon bolt
• 3/8"-16x1 5/8" (PT) hexagon bolt
• 3/8"-16x1 3/4" (PT) hexagon bolt
• 3/8"-16x2" (PT) hexagon bolt
• 3/8"-16x2 1/4" (PT) hexagon bolt
• 3/8"-16x2 3/8" (PT) hexagon bolt
• 3/8"-16x2 1/2" (PT) hexagon bolt
• 3/8"-16x2 3/4" (PT) hexagon bolt
• 3/8"-16x3" (PT) hexagon bolt
• 3/8"-16x3 1/4" (PT) hexagon bolt
• 3/8"-16x3 1/2" (PT) hexagon bolt
• 3/8"-16x3 3/4" (PT) hexagon bolt
• 3/8"-16x4" (PT) hexagon bolt
• 3/8"-16x4 1/2" (PT) hexagon bolt
• 3/8"-16x4 3/4" (PT) hexagon bolt
• 3/8"-16x5" (PT) hexagon bolt
• 3/8"-16x5 1/4" (PT) hexagon bolt
• 3/8"-16x5 1/2" (PT) hexagon bolt
• 3/8"-16x6" (PT) hexagon bolt

Key features

• Thread size: UNC 3/8"
• Thread pitch: 16 T.P.I. (threads per inch)
• High tensile grade 5 steel, comparable with metric 8.8
• Finish: zinc / BZP / Cr3
• Available as fully threaded hexagon set screws (FT) and partially threaded hexagon bolts (PT)

Specifications

• Unified National thread standard
• Unified National Coarse (UNC) thread form
• 60 degree flank angle
• Rounded roots and flat crests

Sizing

• 3/8"-16x1/2"
• 3/8"-16x5/8"
• 3/8"-16x3/4"
• 3/8"-16x1"
• 3/8"-16x1 1/8"
• 3/8"-16x1 1/4"
• 3/8"-16x1 1/2"
• 3/8"-16x1 5/8"
• 3/8"-16x1 3/4"
• 3/8"-16x2"
• 3/8"-16x2 1/4"
• 3/8"-16x2 3/8"
• 3/8"-16x2 1/2"
• 3/8"-16x2 3/4"
• 3/8"-16x3"
• 3/8"-16x3 1/4"
• 3/8"-16x3 1/2"
• 3/8"-16x3 3/4"
• 3/8"-16x4"
• 3/8"-16x4 1/2"
• 3/8"-16x4 3/4"
• 3/8"-16x5"
• 3/8"-16x5 1/4"
• 3/8"-16x5 1/2"
• 3/8"-16x6"

Rackhams Reference : X7V36X9HRS
