High Pressure Hose Reel (200ft / 60m) - Fixed base

For tidy, controlled hose handling in demanding environments, this fixed-base high pressure hose reel provides a permanent mounting solution with a direct hand-crank rewind. A locking mechanism secures the hose at the required length, while the full flow swivel joint supports smooth movement during operation.

Designed for workshop and site installations, it accommodates up to 200ft / 60m of 3/8" high pressure hose. A short hose tail with 3/8 male screw connector is fitted, and BSP screw thread connections at the inlet and outlet allow straightforward integration into compatible systems. Hose is not included.

Key features

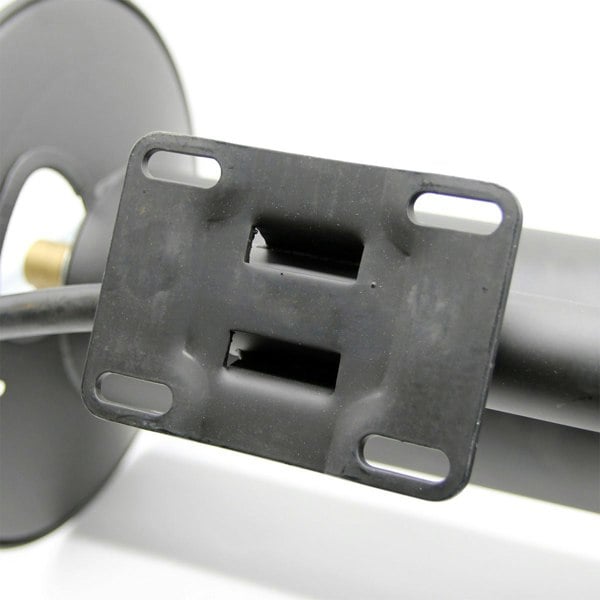

• Fixed mounted base for secure installation
• Direct hand crank rewind for controlled take-up

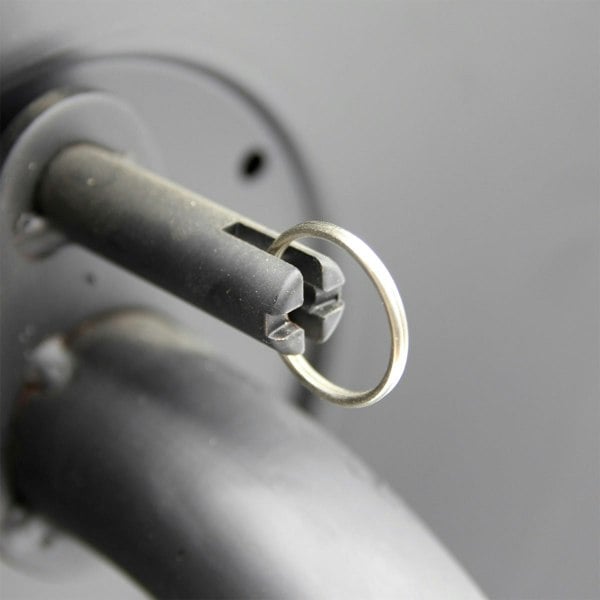

• Locking mechanism to hold the hose at the required length

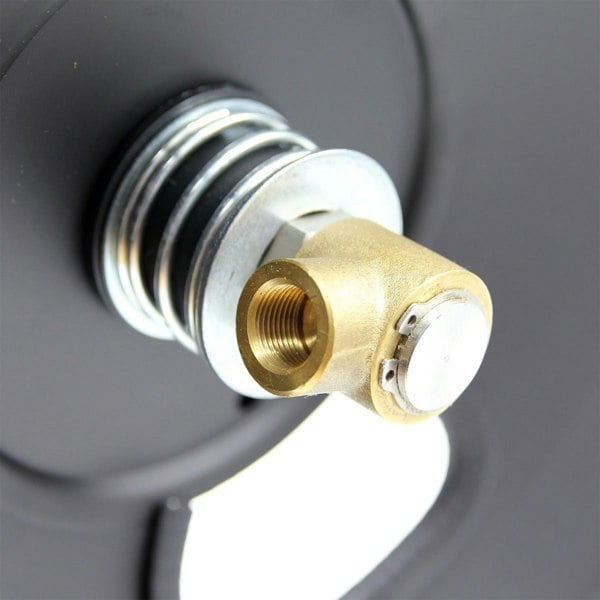

• Full flow swivel joint for smoother handling during use

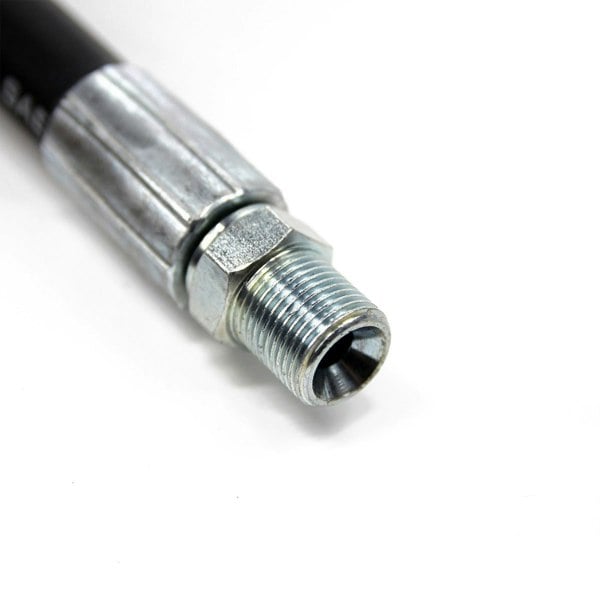

• Short hose tail with 3/8 male screw connector fitted
• Designed to take up to 200ft / 60m of 3/8" high pressure hose (hose not included)

Specifications

• Max. capacity: 200ft / 60 metre 3/8" hose
• Max. pressure: 275 Bar
• Max. temperature: 70°C
• Inlet: 3/8" male BSP screw thread
• Outlet: 3/8" female BSP screw thread
• Base mount hole dimensions: 8-13cm x 8. 5cm

Rackhams Reference : RM2ZFZAPKJ
