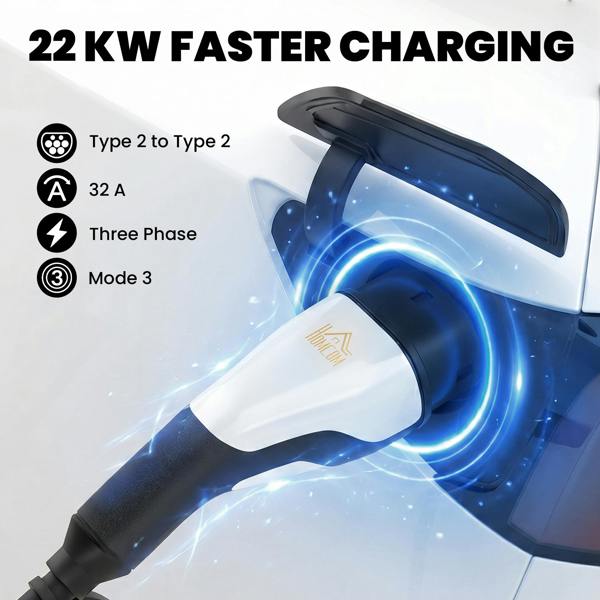

HOMCOM Type 2 EV Charging Cable, 22kW, 32A, Mode 3, 3-Phase, 10m

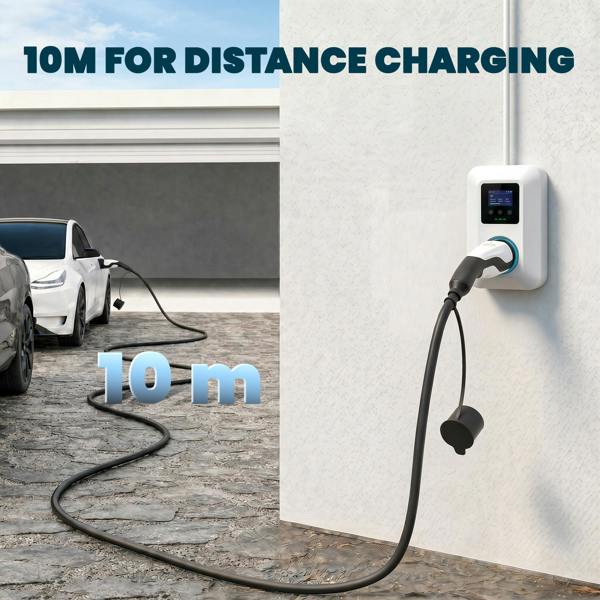

For EVs and PHEVs with a Type 2 (IEC 62196-2) inlet, this HOMCOM Type 2 to Type 2 Mode 3 charging cable is rated at 22 kW, 32 A and AC 480 V for three-phase charging. The 10 m cable length gives easier access to more distant charging points at home wallboxes and public charging stations, while the IP65-rated construction is suited to regular outdoor use.

Built from PC, copper and TPU, the cable features a 99.7% copper core and a PC plug shell. It operates in temperatures from -30C to +50C and is supplied as a portable kit with a storage bag and dust-free cloth. This cable cannot be used with other charging cables or chargers.

Key features

• Rated at 22 kW, 32 A, AC 480 V
• Type 2 to Type 2 Mode 3 charging cable for EVs and PHEVs with Type 2 (IEC 62196-2) inlet
• Three-phase charging
• 10 m cable length
• PC, copper and TPU construction
• IP65 protection rating
• 99.7% copper core with PC plug shell
• Working temperature: -30C to +50C
• Model number: C20-114V91BK

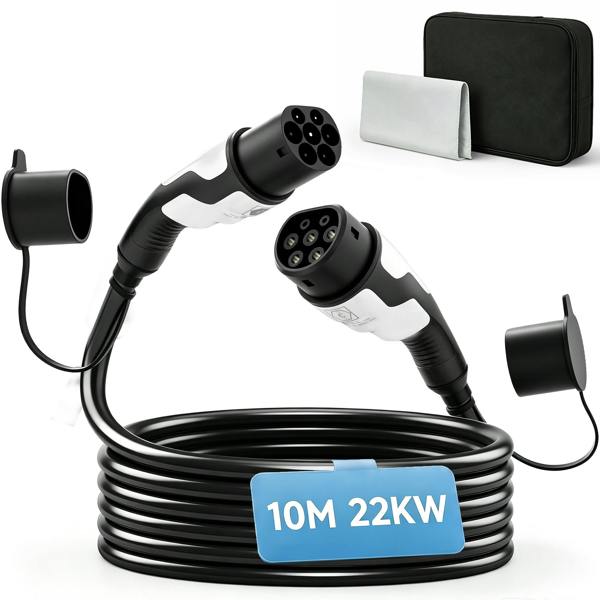

What's included

• Storage bag
• Dust-free cloth

Sizing

Cable length: 10 m

Compliance and regulatory information

• Type 2 (IEC 62196-2) inlet compatibility
• Certified to ROHS and CE

Safety information

• Cannot be used with other charging cables or chargers

About this product

Who is it for

Suited to EV and PHEV drivers using vehicles with a Type 2 (IEC 62196-2) inlet for home and public charging.

When and where to use it

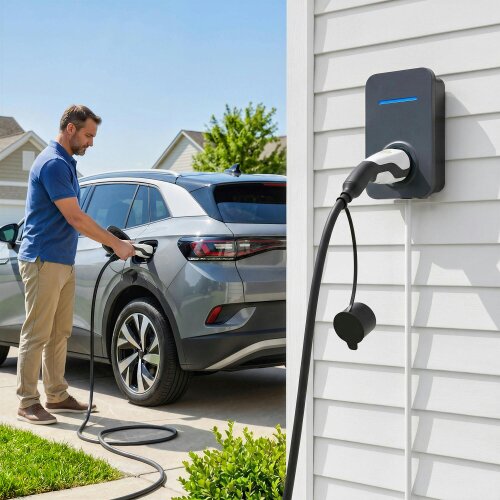

Suitable for charging at home wallboxes and public charging stations, including regular outdoor use.

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : JYMHR11L28
