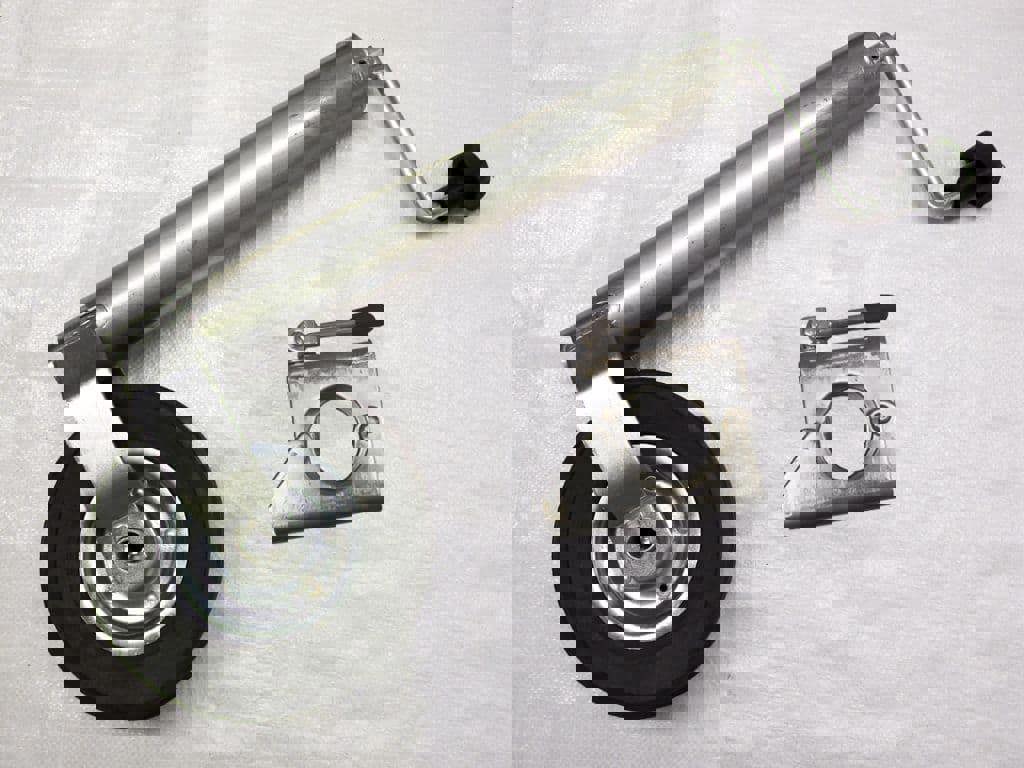

Jockey Wheel with Clamp 60MM (Metal Rim Guide Trailer Caravan Heavy Duty Rubber)

Designed to make manoeuvring and adjusting trailers more manageable, this 60mm Caravan Jockey Wheel with Clamp combines a bright zinc plated finish with a practical clamp for secure fitting. With a maximum load capacity of 180KGS and an adjustable overall height from 655MM to 900MM, it offers flexible positioning for day-to-day towing and storage tasks.

The clamp is intended for holding jockey wheels and prop stands on the side of trailers. Rubber grips on the end of the handle support easier operation, while the screw mechanism opens and closes clockwise or anti-clockwise. Both the jockey wheel and clamp are zinc plated to aid rust resistance.

Key features

• Maximum load capacity: 180KGS
• Tube diameter: 60MM
• Tyre width x diameter: 60MM x 215MM
• Overall height (min to max): 655MM to 900MM
• Bore length: 50MM
• Finish: bright zinc plated
• Clamp with rubber handle grips and screw open/close mechanism

Sizing

• Clamp dimensions (A x B x C x D x E x F): 131MM x 100MM x 46MM x 105MM x 70MM x 20MM

Please note

Due to the zinc plating process, the finish may have blemishes.
