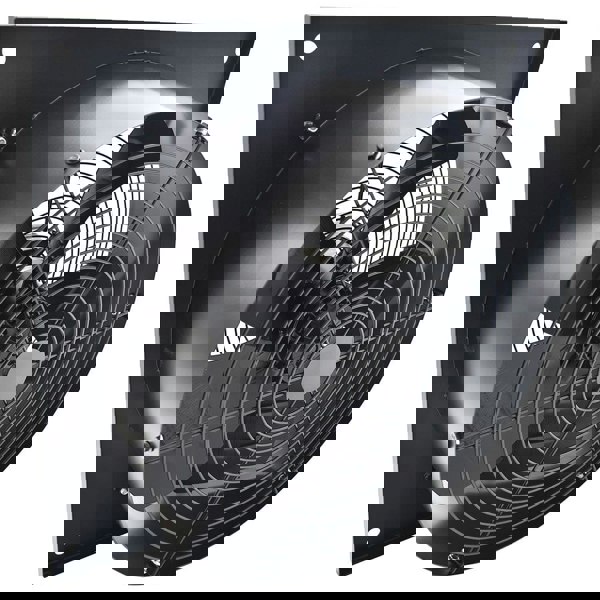

Living and Home 200mm Exhaustor Fan Ventilation Wall-Mounted Axial Fan

Finished in matte black with an all-metal build, the Livingandhome wall-mounted axial exhaust fan offers a practical ventilation solution for enclosed spaces. Available from 8-inch to 24-inch, it suits a range of installations where stale air, odours and excess moisture need to be expelled. A built-in copper motor supports efficient operation, while a mesh enclosure helps reduce the chance of unwanted objects being drawn into the fan.

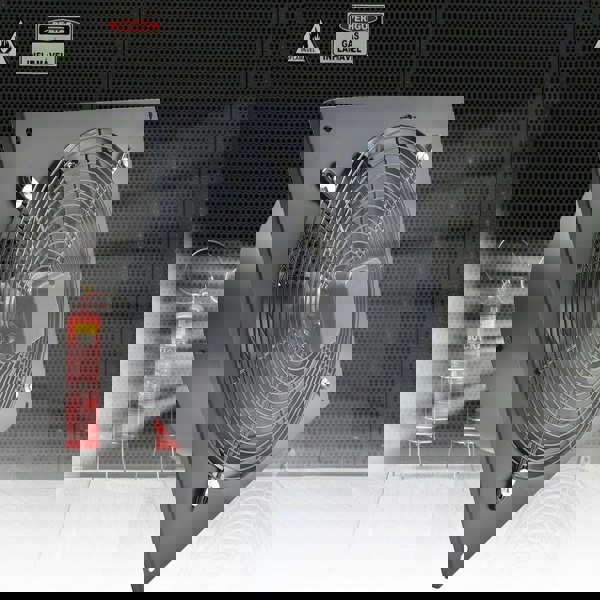

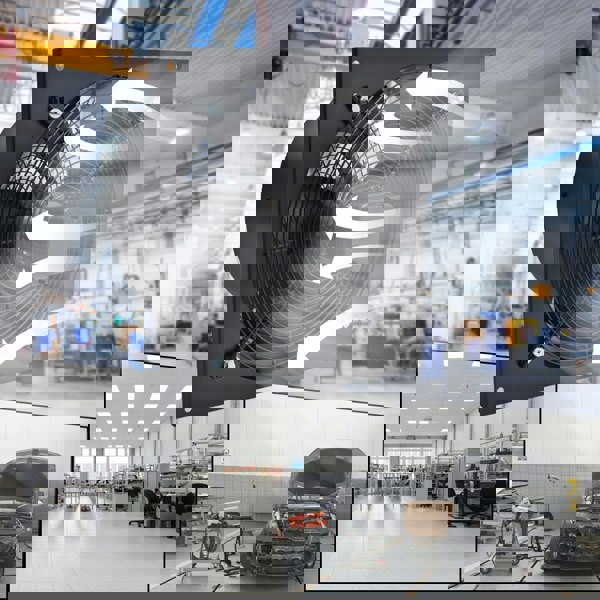

With a space-saving wall-mounted format and 5-blade design, it is suitable for bathrooms, kitchens and workshops. Noise levels, air volume, total pressure and power consumption vary by size, allowing you to select the specification that best matches your room and ventilation requirements.

Key features

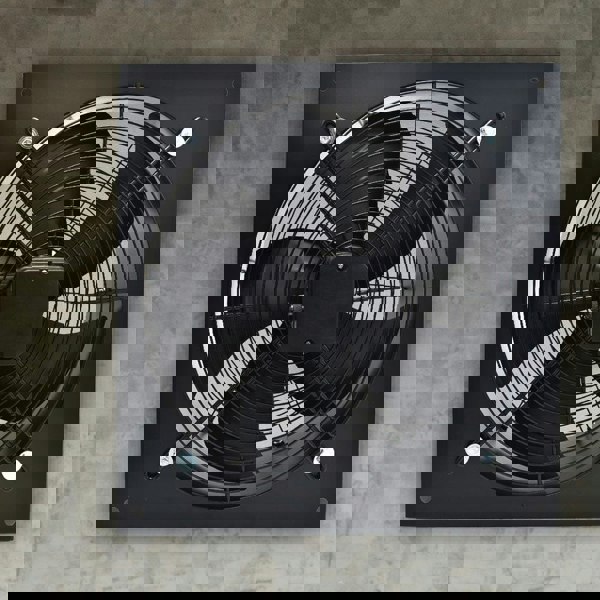

• Wall-mounted axial exhaust fan
• Matte black finish
• All-metal construction
• Built-in copper motor

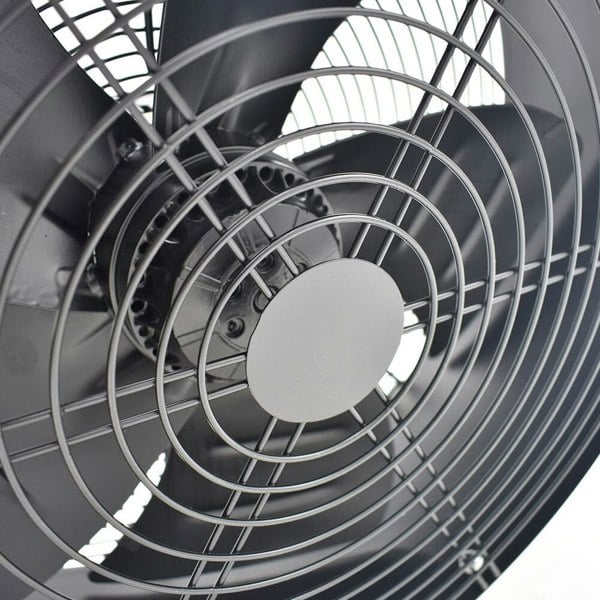

• Mesh enclosure

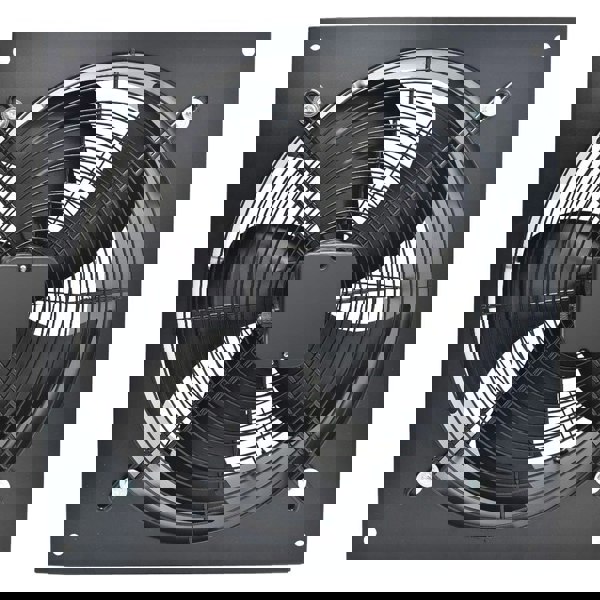

• 5-blade design
• Material: iron
• Colour: black

Specifications

Electrical

• Phase: 1
• Voltage: 220-240V, 50HZ

Size options (overall dimensions / axial flow)

• 8-inch (200MM): 27cm W x 9cm D x 27cm H
• 10-inch (250MM): 32cm W x 10cm D x 32cm H
• 12-inch (300MM): 37cm W x 10.6cm D x 37cm H
• 14-inch (350MM): 42cm W x 13.6cm D x 42cm H
• 16-inch (400MM): 47cm W x 14cm D x 47cm H
• 18-inch (450MM): 52cm W x 15.2cm D x 52cm H
• 20-inch (500MM): 57cm W x 15.3cm D x 57cm H
• 22-inch (550MM): 62cm W x 16.7cm D x 62cm H
• 24-inch (600MM): 67cm W x 18.5cm D x 67cm H

Performance by size

• Input current: 0.23A (8-inch); 0.5A (10-inch); 0.8A (12-inch); 0.73A (14-inch); 0.85A (16-inch); 1.2A (18-inch); 1.6A (20-inch); 2.4A (22-inch); 3.3A (24-inch)
• Capacitance: 2uF (8 inch, 10 inch); 6uF (12 inch, 16 inch); 4uF (14 inch); 8uF (18 inch); 10uF (20 inch); 12uF (22 inch); 16uF (24 inch)
• Power consumption: 60W (8-inch); 110W (10-inch); 165W (12-inch); 145W (14-inch); 180W (16-inch); 250W (18-inch); 350W (20-inch); 500W (22-inch); 710W (24-inch)
• Speed: 2550 (r/min) (8-inch); 2550 (r/min) (10-inch); 2300 (r/min) (12-inch); 1380 (r/min) (14-inch); 1350 (r/min) (16/18/20/22/24-inch)
• Air volume: 780M3/H (8-inch); 960M3/H (10-inch); 2130M3/H (12-inch); 2500M3/H (14-inch); 3500M3/H (16-inch); 4850M3/H (18-inch); 6570M3/H (20-inch); 8700M3/H (22-inch); 10850M3/H (24-inch)
• Total pressure: 90Pa (8-inch); 100Pa (10-inch); 130Pa (12-inch); 145Pa (14-inch); 160Pa (16-inch); 185Pa (18-inch); 200Pa (20-inch); 240Pa (22-inch); 300Pa (24-inch)
• Noise: 50db (A) (8-inch); 56db (A) (10-inch); 60db (A) (12-inch); 62db (A) (14-inch); 65db (A) (16-inch); 68db (A) (18-inch); 72db (A) (20-inch); 75db (A) (22-inch); 78db (A) (24-inch)

In the box

• 1 x Exhaust fan

Care

Clean the fan and components regularly to help prevent dust and debris build-up. Turn off the power and remove the cover before cleaning the blades and housing.

Safety information

• Turn off the power before removing the cover or cleaning.
• Vent the fan outside the home and not into an attic or crawlspace.

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Product Attributes

• Size: 10-inch

Rackhams Reference : XDPMVC3JR4
