Living and Home Ventilation Wall-Mounted Exhaust Axial Fan 8 to 22 inch

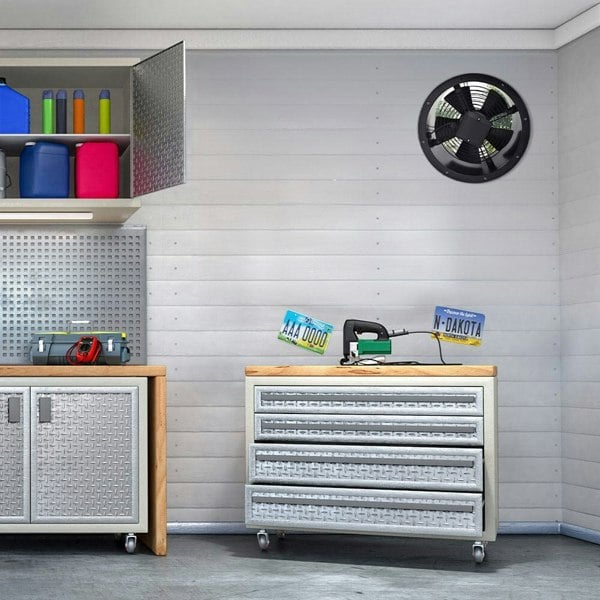

Keeping air moving in busy rooms, the Livingandhome wall-mounted exhaust axial fan offers a practical way to support ventilation in spaces such as bathrooms, kitchens and workshops. Finished in black iron, it uses a copper motor and a double-side metal wire shell for a robust, safety-conscious build. A speed switch is included, allowing airflow to be adjusted to suit the room and conditions.

Available in sizes from 8 inch to 22 inch, each option has 5 blades and runs on a 1-phase 220-240V, 50HZ supply. Performance figures vary by size, with air volume, speed, total pressure, noise level, input current, capacitance and power consumption specified for each model.

Key features

• Wall-mounted exhaust axial fan
• Copper motor

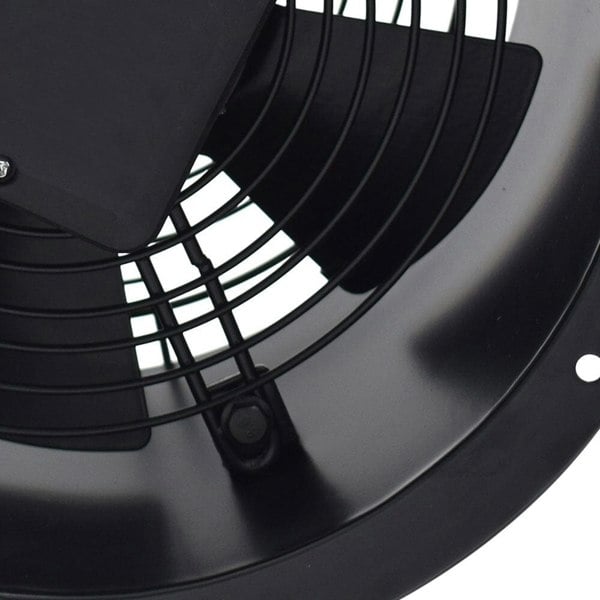

• Double-side metal wire shell

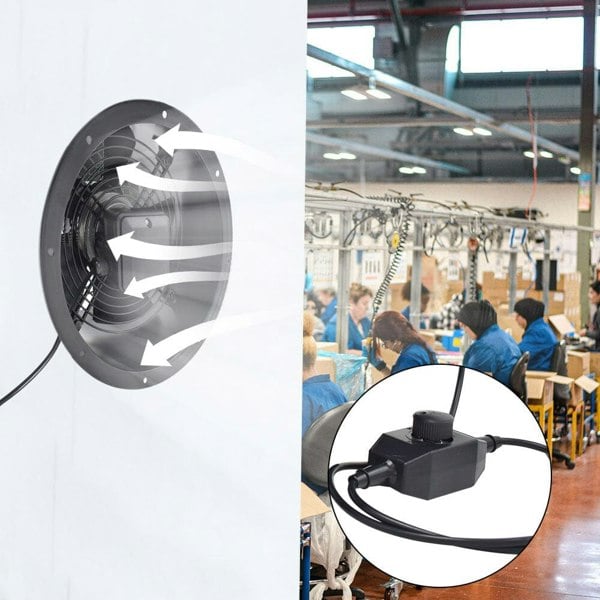

• Speed switch for airflow control
• 5-blade design
• 1-phase operation
• Black finish
• Iron construction

Specifications

Power & electrical

• Voltage: 220-240V, 50HZ
• Phase: 1
• Motor type: Copper motor

Size options (overall dimensions)

• 26.1cm Dia x 16.2cm H (8 inch)

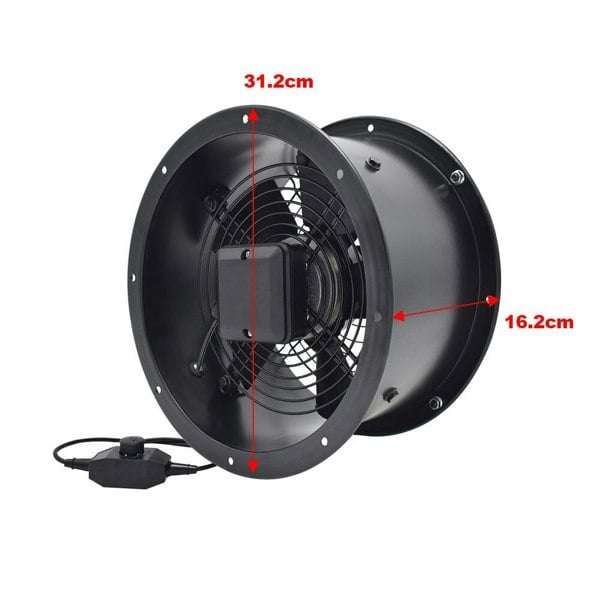

• 31.2cm Dia x 16.2cm H (10 inch)
• 36.2cm Dia x 17.3cm H (12 inch)
• 41.5cm Dia x 17.5cm H (14 inch)
• 46.6cm Dia x 17.5cm H (16 inch)
• 50.8cm Dia x 19cm H (18 inch)
• 56.5cm Dia x 21.5cm H (20 inch)

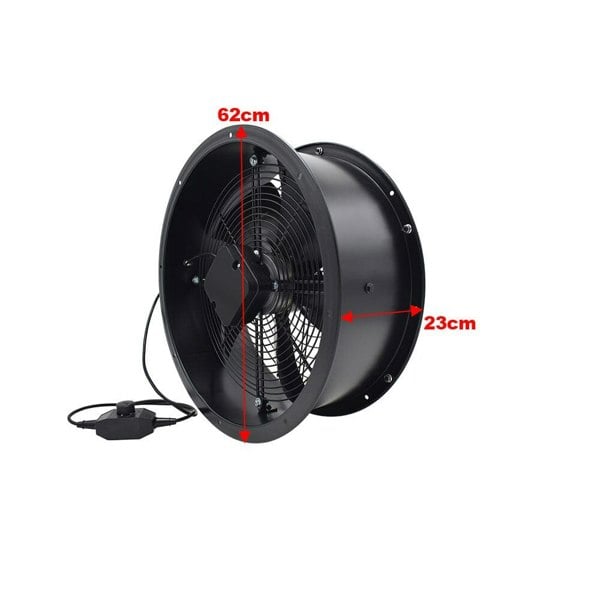

• 62cm Dia x 23cm H (24 inch)

Input current

• 0.23A (8 inch)
• 0.5A (10 inch)
• 0.8A (12 inch)
• 0.8A (14 inch)
• 0.8A (16 inch)
• 1.2A (18 inch)
• 1.6A (20 inch)
• 2.4A (22 inch)

Capacitance

• 2uF (8 inch)
• 4uF (10 inch)
• 4uF (12 inch)
• 4uF (14 inch)
• 6uF (16 inch)
• 8uF (18 inch)
• 10uF (20 inch)
• 12uF (22 inch)

Power consumption

• 60W (8 inch)
• 110W (10 inch)
• 165W (12 inch)
• 145W (14 inch)
• 180W (16 inch)
• 230W (18 inch)
• 350W (20 inch)
• 500W (22 inch)

Performance (by size)

• Speed: 2150-2550 (r/min) (8 inch)
• Speed: 2150-2550 (r/min) (10 inch)
• Speed: 1900-2300 (r/min) (12 inch)
• Speed: 1180-1380 (r/min) (14 inch)
• Speed: 1180-1380 (r/min) (16 inch)
• Speed: 1150-1350 (r/min) (18 inch)
• Speed: 1250-1350 (r/min) (20 inch)
• Speed: 1200-1300 (r/min) (22 inch)
• Air volume: 780M3/H (8 inch)
• Air volume: 960M3/H (10 inch)
• Air volume: 2130M3/H (12 inch)
• Air volume: 2500M3/H (14 inch)
• Air volume: 3500M3/H (16 inch)
• Air volume: 4800M3/H (18 inch)
• Air volume: 6570M3/H (20 inch)
• Air volume: 8700M3/H (22 inch)
• Total pressure: 180Pa (8 inch)
• Total pressure: 200Pa (10 inch)
• Total pressure: 260Pa (12 inch)
• Total pressure: 140Pa (14 inch)
• Total pressure: 150Pa (16 inch)
• Total pressure: 160Pa (18 inch)
• Total pressure: 165Pa (20 inch)
• Total pressure: 240Pa (22 inch)
• Noise: 65db (A) (8 inch)
• Noise: 69db (A) (10 inch)
• Noise: 69db (A) (12 inch)
• Noise: 65db (A) (14 inch)
• Noise: 68db (A) (16 inch)
• Noise: 73db (A) (18 inch)
• Noise: 75db (A) (22 inch)

Build

• Number of blades: 5
• Material: Iron
• Colour: Black

In the box

• 1 x Exhaust fan

Please note: Colours may appear slightly different in person than on your screen.
