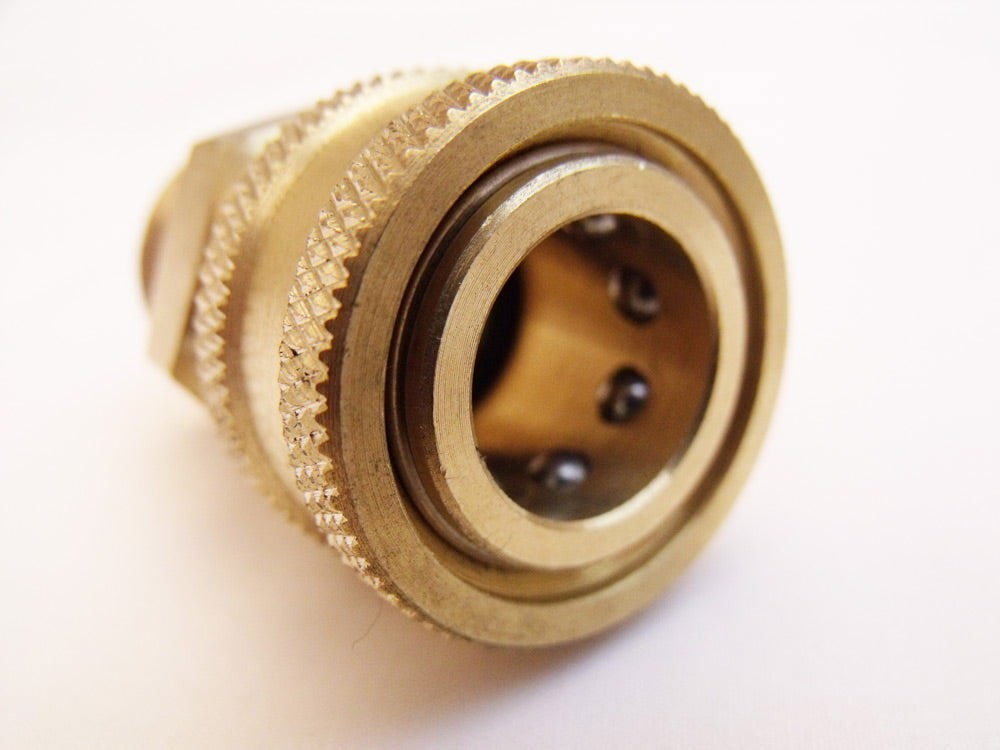

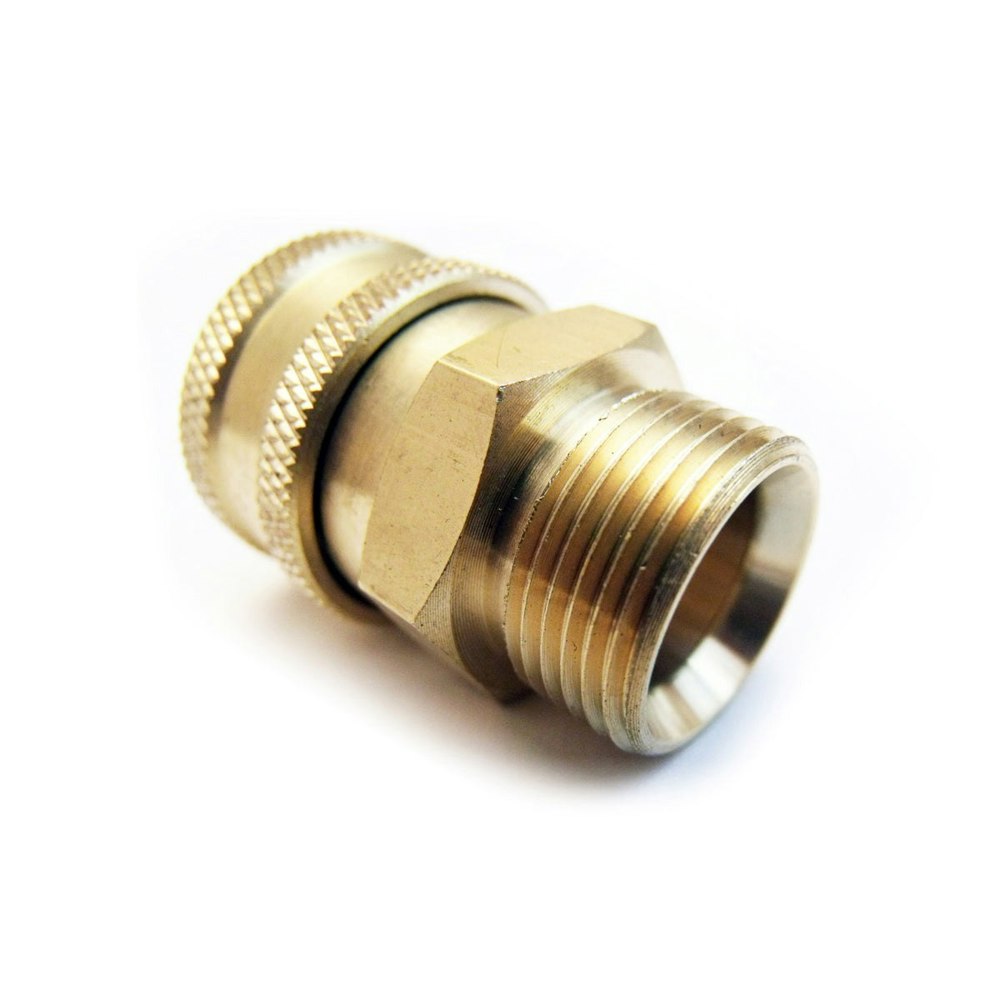

M22 Male Screw to 3/8" Quick Release Female Coupling

Designed for pressure washer hose and lance set-ups, this M22 male screw to 3/8" quick release female coupling converts an M22 female connection into a 3/8" (14.8mm) quick release female coupling. It provides a straightforward way to change connection type where an M22 female fitting needs to interface with a 3/8" quick release system.

Compatibility depends on the internal spigot size of the M22 thread. The M22 couplings use a 14mm internal spigot and will not suit M22 threads with a 15mm internal spigot.

Key features

• Converts an M22 female connection to a 3/8" (14.8mm) quick release female coupling
• M22 couplings feature a 14mm internal spigot

Specifications

• Connection type: M22 male screw
• Coupling type: 3/8" (14.8mm) quick release female coupling
• M22 internal spigot size: 14mm

Safety information

This coupling will not seal on M22 threads with a 15mm internal spigot, which can cause a leak.

Rackhams Reference : ASPGNJ5DIW
