Monster Racking Combi Spray Drying Rack Trolley x 2 & Connector

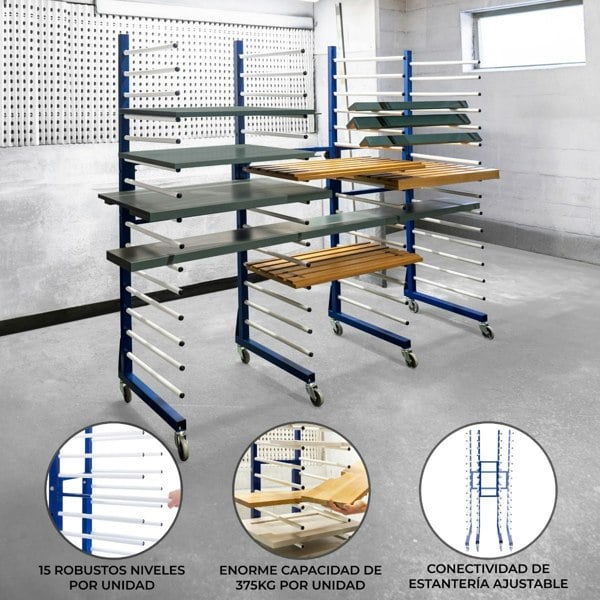

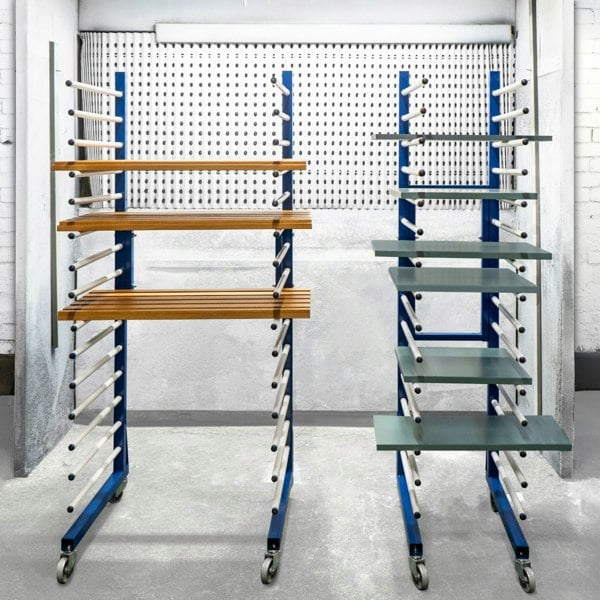

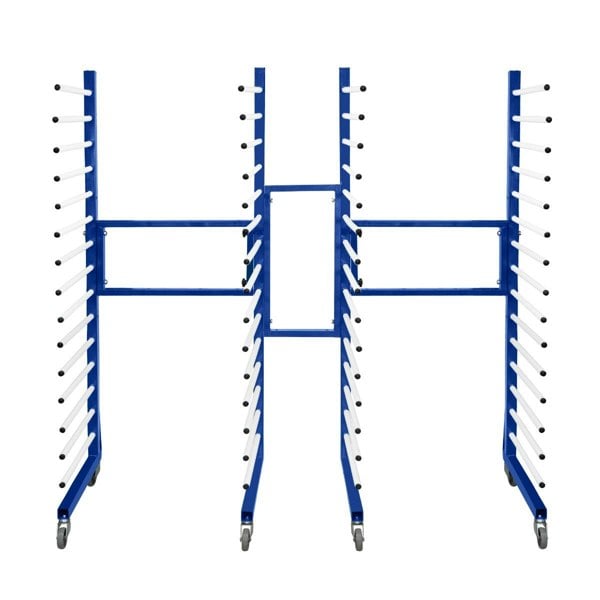

Built for paint shops and workshop drying areas, this Monster Racking bundle includes 2 spray drying rack trolleys and a 2 way connector for a more adaptable layout. The system offers 8 orientation options and 7 width combinations, allowing the racks to be used separately, joined together, or arranged in a more compact configuration using the connector and 1 leg from the second rack.

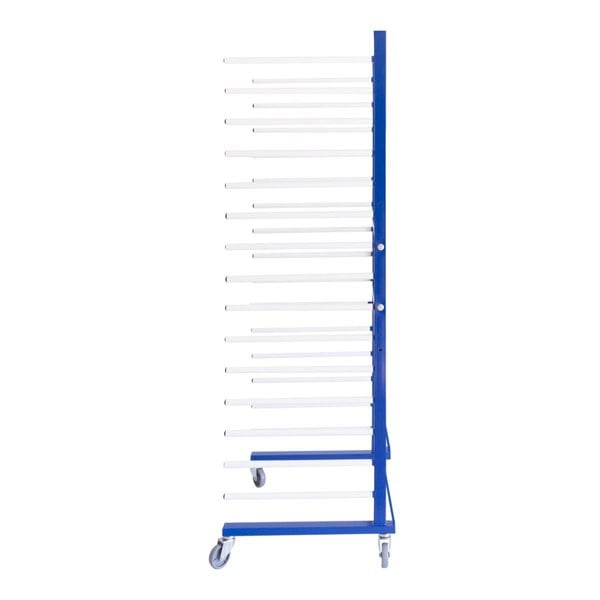

Each trolley has 15 drying layers with 55cm bars and an 85mm gap between bars to keep items spaced during drying. The blue powder coated steel construction gives the racks a durable workshop-ready finish, while each layer supports up to 25kg. Four 360 degree castor wheels on each trolley make repositioning straightforward, and the removable plastic sleeves on each drying bar simplify cleaning and maintenance.

Key features

• 2 spray drying rack trolleys and 1 x 2 way connector
• 8 orientation options and 7 width combinations
• 15 drying layers per rack
• Powder coated steel construction in blue
• 25kg weight capacity per layer

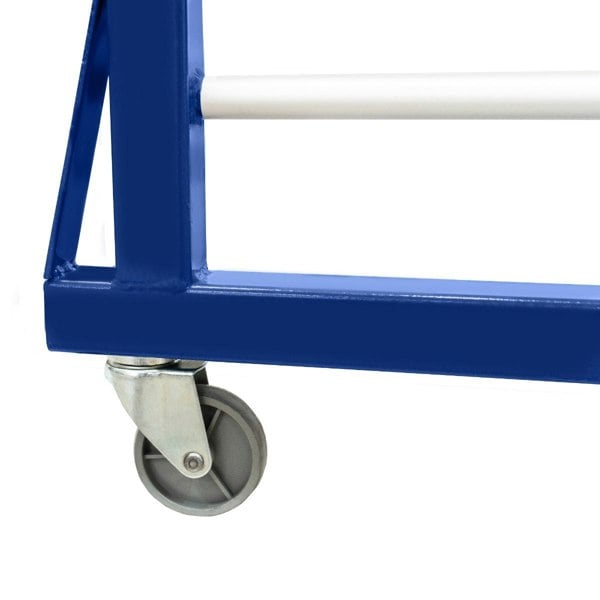

• 4 heavy duty 360 degree castor wheels on each trolley

Specifications

• Total weight capacity: 375kg
• Number of layers: 15
• Bar length: 55cm / 0. 55m / 21. 7”
• Gap between bars: 85mm / 8. 5cm / 3. 3”
• Drying rack weight: 26. 05kg
• 2 way separator weight: 3. 5kg

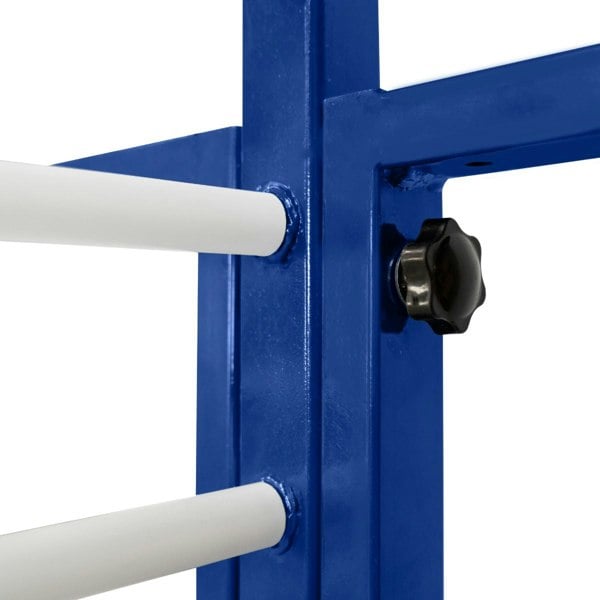

• Hand bolt length: 115mm / 11. 5cm / 4. 5”

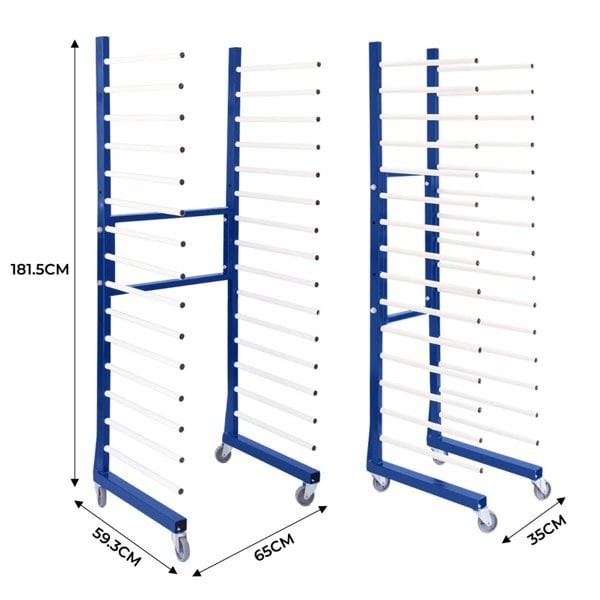

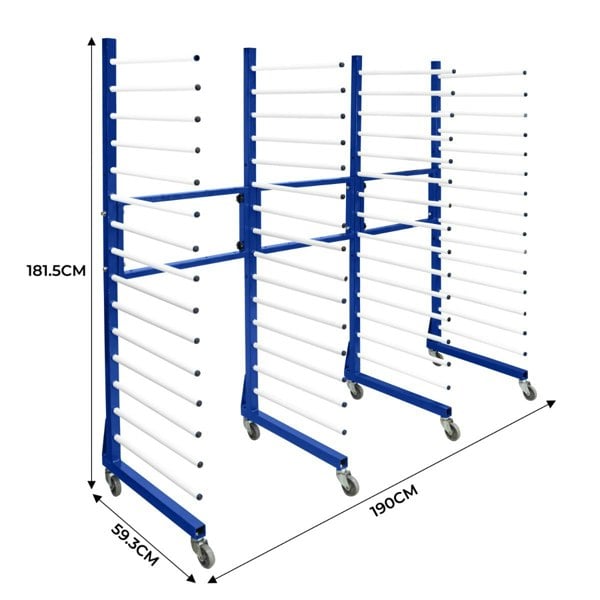

Sizing

• Height: 181. 5cm / 1. 8m / 71. 5”
• Minimum rack width: 35cm / 0. 35m / 13. 8”
• Maximum rack width: 65cm / 0. 65m / 25. 6”
• Depth: 59. 3cm / 0. 59m / 23. 2”
• 2 way separator height: 300mm / 30cm / 11. 8”
• 2 way separator width: 597mm / 59. 7cm / 23. 5”
• 2 way separator depth: 38mm / 3. 8cm / 1. 5”

What's included

• 2 x adaptable spray drying rack trolleys
• 1 x 2 way connector
• 4 x secure hand bolts

Care and maintenance

Removable plastic sleeves on each drying bar allow easier cleaning and upkeep.
