Monster Racking Traditional 2 Column Radiator - 1800 x 560mm - Raw Metal

A bold industrial finish meets a classic profile in the Monster Racking Traditional 2 Column Radiator. This vertical, 12-column radiator is finished in raw metal with a lacquer coating, bringing a distinctive look to contemporary and traditional interiors alike.

Made from 1.5mm carbon steel, it measures 1800mm high by 560mm wide, with a 68mm radiator depth (92mm with bracket). Heat output is rated at 5821 BTU @ 50 and 7312 BTU @ 60, with watt ratings of 1706 @ 50 and 2143 @ 60. Standard 0.5" BSP bore inlets/outlets support straightforward valve selection, while fixtures and fittings are included for installation. A flexible cleaning brush is supplied to help keep the gaps between tubes clear.

Key features

• Traditional 2 column vertical radiator with 12 columns
• Raw metal colour with lacquer coating
• 1.5mm carbon steel construction
• Heat output: 7312 BTU @ 60 (5821 BTU @ 50)
• Standard 0.5" BSP bore inlets/outlets
• Secure brackets and fixing kit included
• Flexible cleaning brush included
• CE and UKCA certified
• BS EN 442 tested
• 15-year guarantee

Specifications

• Colour: Raw Metal
• Weight: 31.7kg
• Material: 1.5mm Carbon Steel
• Finish: Lacquer Coating

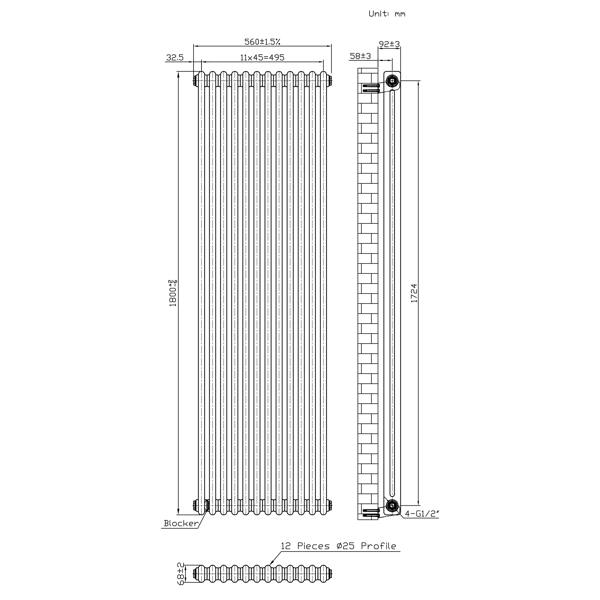

• Height: 1800mm / 180cm / 70.9”
• Width: 560mm / 56cm / 22”
• Radiator Depth: 68mm / 6.8cm / 2.7”
• Depth With Bracket: 92mm / 9.2cm / 3.6”
• Gap Between Tubes: 45mm / 4.5cm / 1.8”
• Individual Tube Size: 25mm / 2.5cm / 1”
• BTU Rating @ 50: 5821
• BTU Rating @ 60: 7312
• Watt Rating @ 50: 1706
• Watt Rating @ 60: 2143
• Max Working Temperature: 95°C
• Max Working Pressure: 10 Bar
• Test Pressure: 13 Bar
• Recommended Application Area: 11.4m²
• Heating Surface Area: 3.43m²
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Distance From Wall To Centre Of Inlet: 58mm / 5.8cm / 2.3”
• Valve-To-Valve Height: 1724mm / 172.4cm / 67.9”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE Certificate: CE & UKCA

In the box

• 1 x Traditional 2 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : Q8J7P9E9ZI
