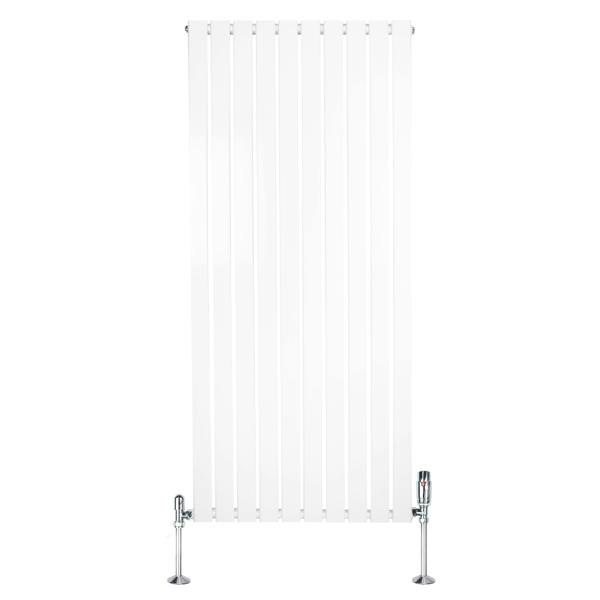

Monstershop Flat Single Column Radiator – 1600mm x 700mm & Valves – White

A clean, architectural look meets practical heating with the Monstershop Flat Single Column Radiator in white, supplied with a polished chrome thermostatic valve set. Measuring 1600mm x 700mm, this flat, 10-column design is made from 1.5mm carbon steel and finished with a triple layered powder coating for a crisp, durable appearance.

Built for compatibility across UK and EU heating systems, it uses a standard 0.5" BSP bore inlet/outlet and is tested to BS EN 442 and ISO9001:2015 standards, with CE and UKCA certification. Heat output is rated at 4215 BTU @ 50 and 5352 BTU @ 60 (1235W @ 50 and 1568W @ 60), with a recommended application area of 16m². The angled thermostatic valves use a rotary knob with a 6–28 degrees temperature range, alongside an integrated lock shield valve for water flow regulation.

Key features

• Flat single column radiator with 10 columns
• 1600mm x 700mm size
• White finish with triple layered powder coating
• 1.5mm carbon steel construction
• Heat output: 5352 BTU @ 60 (1568W @ 60)
• Standard 0.5" BSP bore inlet/outlet
• Supplied with angled thermostatic valve set in polished chrome
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 28.1kg
• Height: 1600mm / 160cm / 63”
• Width: 700mm / 70cm / 27.6”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 10
• BTU rating @ 50: 4215
• BTU rating @ 60: 5352
• Watt rating @ 50: 1235
• Watt rating @ 60: 1568
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 16m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control style: Rotary knob
• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : LW1SAY4HZN
