MYHOMEWARE 500 mm x 800 mm Flat Electric Panel Shiny Gold Heated Bathroom Towel Rail Radiator Pre-Filled

Designed for bathrooms and other practical spaces, the MYHOMEWARE flat electric panel towel rail radiator combines a shiny gold finish with an 8-panel layout (2 + 3 + 3). Supplied pre-filled with 85% pure water and 5% anti-freeze (ethylene glycol), it is made from steel and delivers a heat output of 1,096 BTU/h (321 W).

The manual, non-thermostatic electric element is supplied separately and must be installed into the left or right-hand side at the bottom of the towel rail before connection to electricity. With no controls on the element itself, operation is via a separate wall switch. The element is IP55 rated and supplied with interchangeable chrome and white cover caps.

Key features

• Flat panel design with 2 + 3 + 3 layout (8 panels total)
• Heat output: 1,096 BTU/h (321 W)
• Finish: shiny gold
• Material: steel
• Pre-filled with 85% pure water and 5% anti-freeze (ethylene glycol), with a 10% air gap for expansion
• Manual electric element with fixed temperature operation at 70C and no thermostatic control
• IP55-rated electric element, suitable for bathroom installation

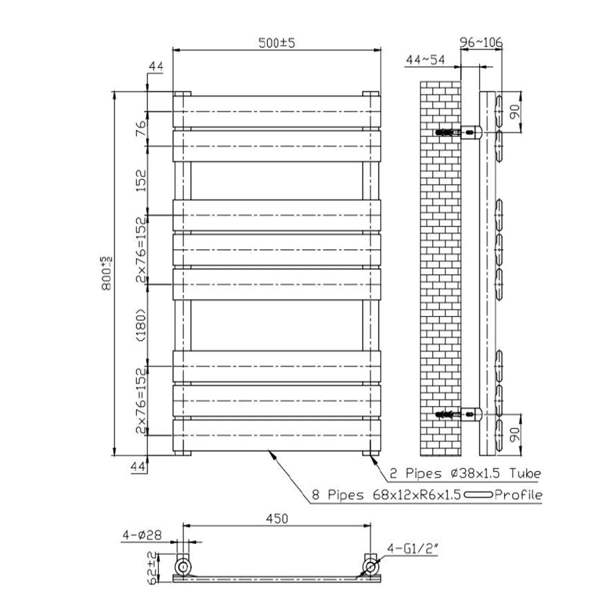

Sizing

• 500mm W x 800mm H
• Pipe centres: 450mm
• Wall to pipe centres: 70-85mm
• Projection from the wall: 85-100mm

What's included

• 4 x Wall bracket
• 1 x Electric element
• 1 x Blanking/bleeding plug

Specifications

• Voltage: 230V AC
• Cable length: 1.2 metres
• Electric element IP rating: IP55
• Electric element material: stainless steel probe, plastic cap
• Supplied with interchangeable chrome and white covers

Please note

• Electric towel rails are not shipped with elements installed
• The element must be installed into the left or right-hand side at the bottom of the towel rail
• Must be installed by a qualified electrician
• The element has no controls and is operated via a separate wall switch

Warranty

• 5 years guarantee on the towel rail
• 2 years warranty on the electric element

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : EL7NDA6NL4
