Ocean Designs Sagres 4m x 3m Wall Mounted Pergola

Designed to create a clean, architectural link between house and garden, the Ocean Designs Sagres wall-mounted motorised pergola combines a louvred roof with integrated LED lighting for adaptable outdoor cover. With a 4m length and 3m projection, it offers a defined space for outdoor living while keeping the structure neatly anchored to your home.

Finished in powder-coated aluminium, the frame is built for low-maintenance outdoor use. A motorised louvred roof allows you to adjust shading and cover at the touch of a button, while integrated drainage channels within the legs direct rainwater down and out at ground level when the roof is closed. The pergola is designed to sit on solid, flat surfaces including decking, patios and porcelain tiles.

Key features

• Wall-mounted pergola with motorised LED louvred roof
• Powder-coated aluminium frame
• Drainage channels located within the legs
• Rainwater disperses through the legs and out at the bottom when the roof is shut
• Designed for solid, flat surfaces including decking, patios and porcelain tiles
• RAL7016 anthracite grey frame and posts
• RAL9016 traffic white louvred blades
• Assembly required

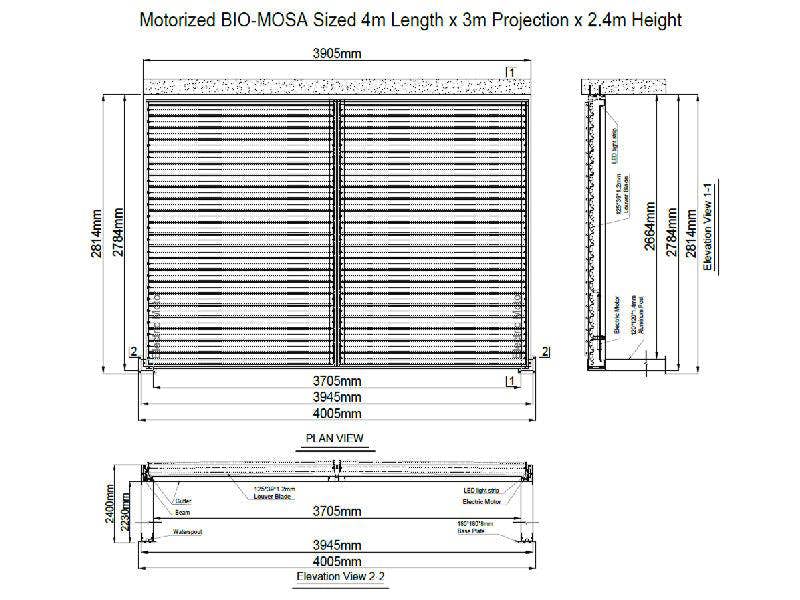

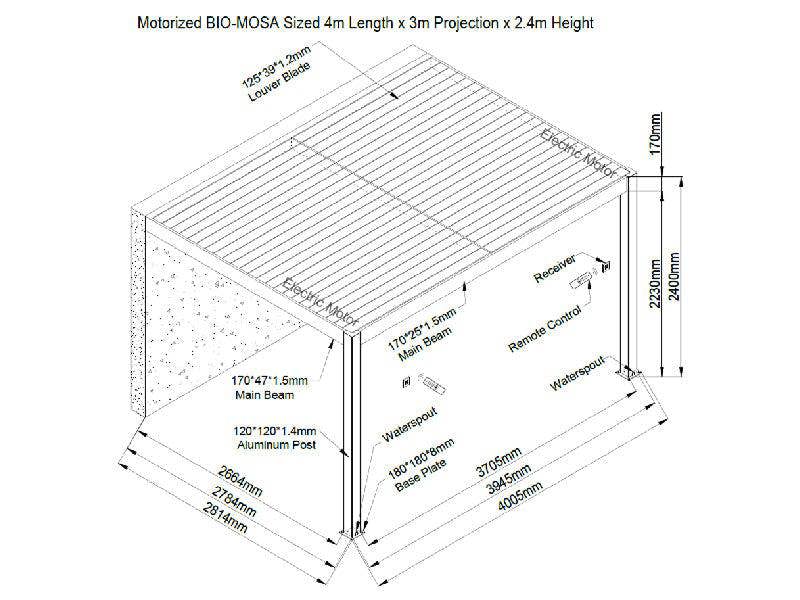

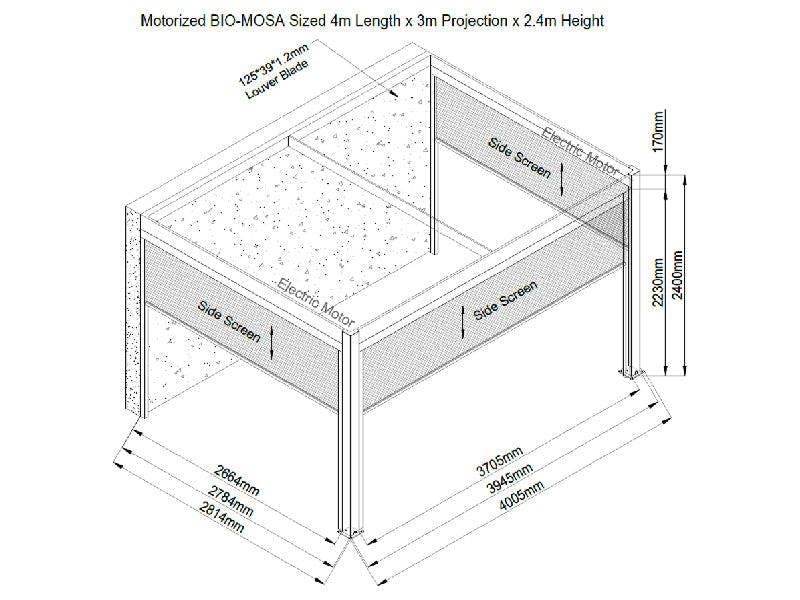

Dimensions

• Length: 4m
• Projection: 3m
• Height: 2.40m
• Height with louvres open: 2.44m
• Advised height for installation area: 2.48m
• Legs: 12 x 12cm
• Middle beam: 17cm x 4.7cm

Support & warranty

• 5-year guarantee on the frame
• 2-year guarantee on screens

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
