Ocean Designs Sagres 5m x 3m Wall Mounted Pergola

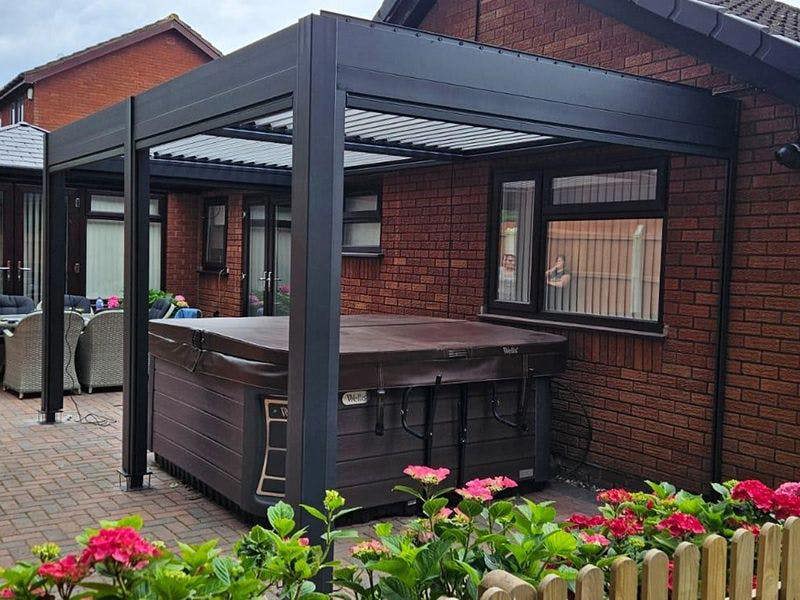

Designed to create a clean connection between indoors and out, the Ocean Designs Sagres wall-mounted pergola brings adaptable shelter to a patio or terrace. Finished in powder-coated aluminium, the frame is described as resistant to rust, abrasions and harsh chemicals that may come into contact with it, while the motorised louvred roof with integrated LED lighting allows you to adjust shade and cover at the touch of a button.

For wet weather, drainage channels are located within the legs so, when the roof is shut, rainwater passes through the legs and dispenses from the bottom via ultra-wide gutters. The structure is designed to sit on any solid, flat surface including decking, patios and porcelain tiles. Optional Sagres screens are described as rain and windproof, adding privacy and protection, with a bottom locking system and the ability to be pulled to the length you desire.

Key features

• Wall-mounted pergola from Ocean Designs
• Powder-coated aluminium frame
• Motorised louvred roof with LED feature
• Drainage channels located within the legs
• Ultra-wide gutters
• Designed for solid, flat surfaces including decking, patios and porcelain tiles

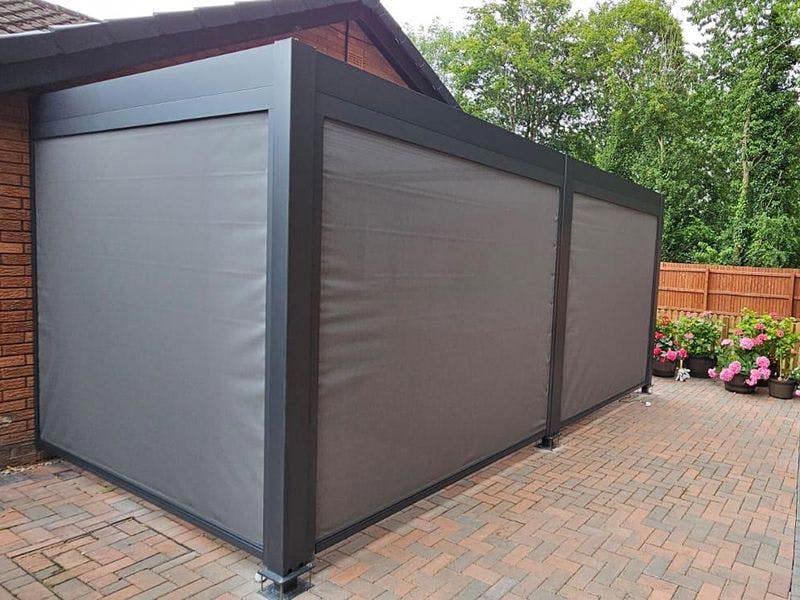

• Optional Sagres screens with bottom locking system
• Assembly required

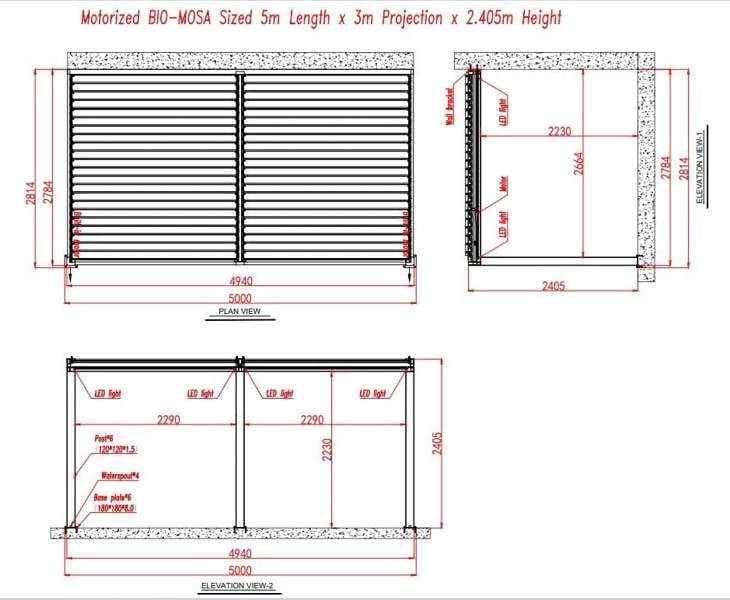

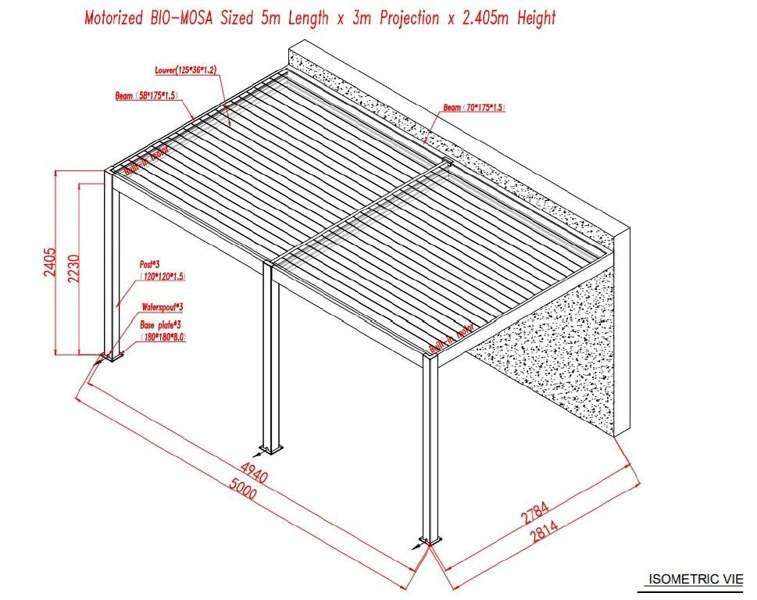

Dimensions

• Length: 5m
• Projection: 2.81m
• Height: 2.40m
• Height with louvres open: 2.44m
• Advised area height: 2.48m
• Legs: 12 x 12cm
• Middle beam: 17cm x 4.7cm

Specifications

• Frame and posts colour: RAL7016 anthracite grey
• Louvered blades colour: RAL9016 traffic white

Support & warranty

• 5-year guarantee on the frame
• 2-year guarantee on screens

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : BR22B7UJ96
