Oxford Battery Monitor

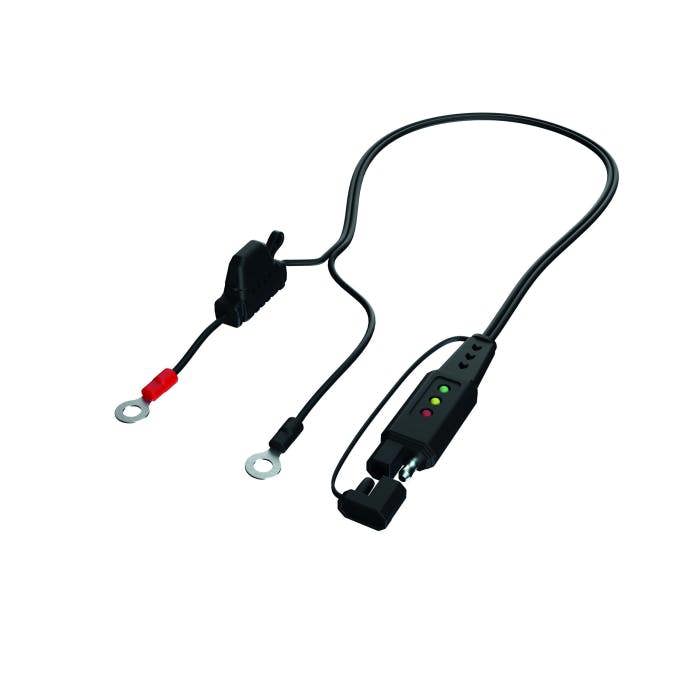

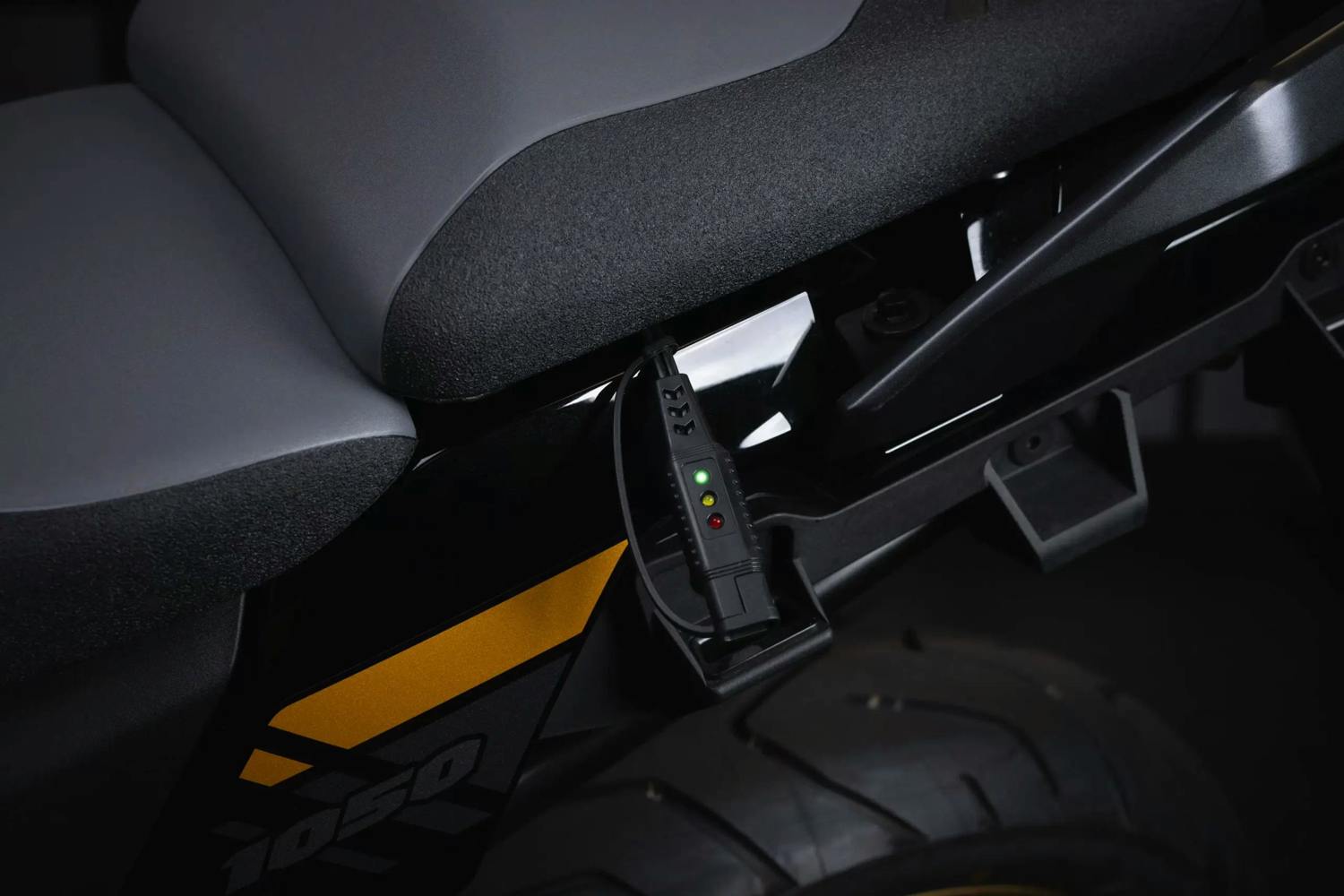

Designed for straightforward battery checks, the Oxford Battery Monitor connects to a 12V lead acid battery via an M6 ring connector and gives a clear status reading at a glance. Its easy-to-read traffic light system helps you determine whether your battery is strong, needs charging, or is weak, making it a practical addition for routine maintenance.

An SAE connector supports through charging, helping to reduce the need for an additional permanent charger lead on the battery. The monitor flashes every 5 seconds to help reduce power consumption and is supplied with 3 different micro blade fuses for use with chargers in the Oximiser Pro range.

Key features

• Traffic light battery health indicator: green strong = >12.6V, yellow charge = 12.2V–12.6V, red weak = <12.2V
• Flashes every 5 seconds to reduce power consumption
• M6 ring connector for connection to the battery
• SAE connector for through charging
• Supplied with 3 micro blade fuses: 7.5A, 4A and 2A
• Compatible with Oximiser Pro optimiser range (900/1250 = 2A, 2000 = 4.0A, 5000 = 7.5A)
• For use with 12V lead acid batteries (not lithium)

Sizing

0.5m length
