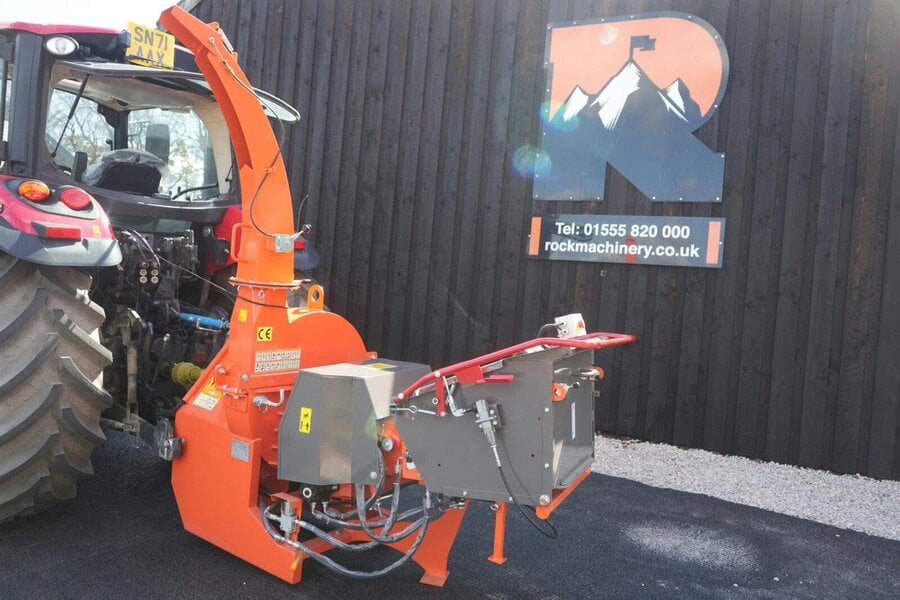

Rock Machinery Venom RX177 PTO Chipper

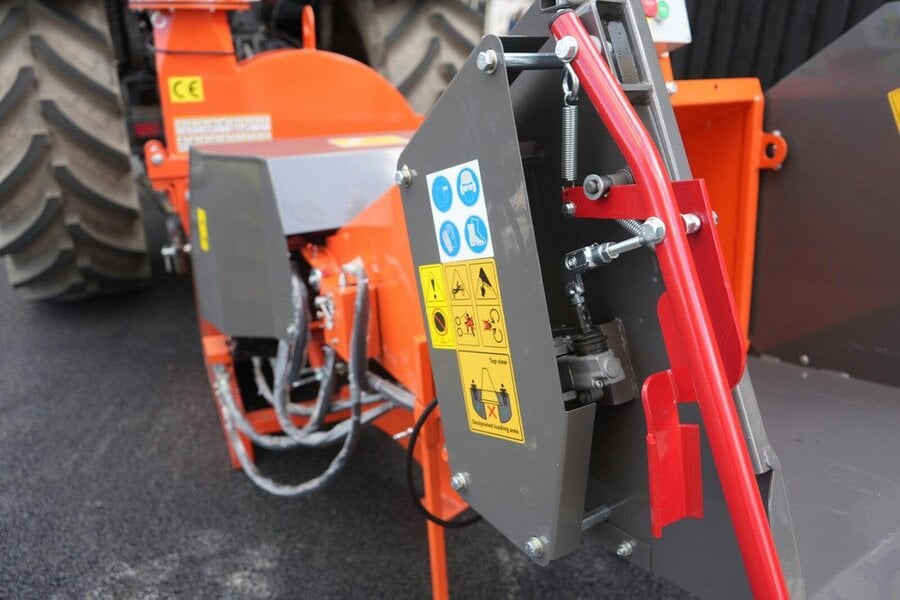

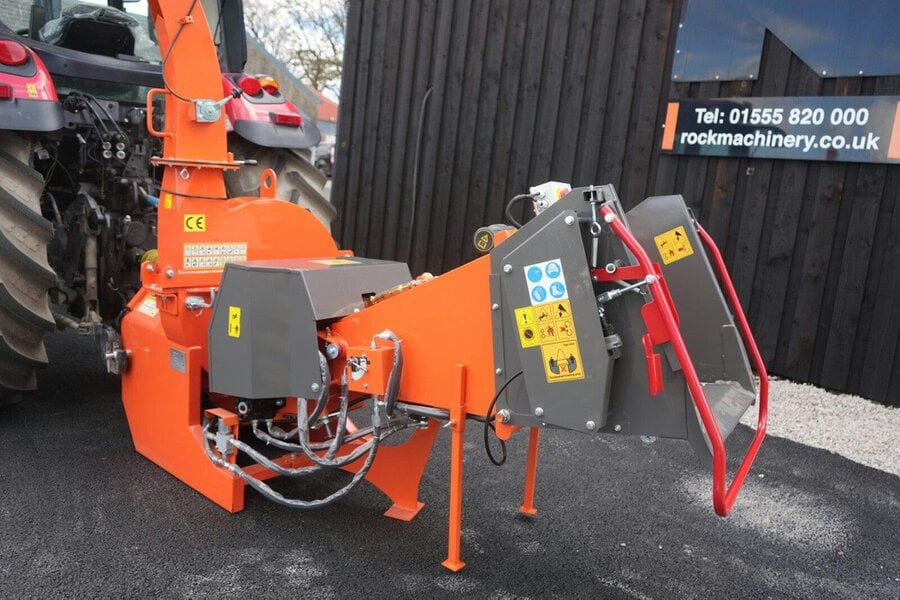

Designed for tractor PTO set-ups, the Rock Machinery RX177 PTO Chipper is built for processing larger timber when clearing land, estates and woodland. This updated 2025 model features a revised electrical system that controls the infeed rollers for simpler operation, alongside a more compact design with front supports and rear chute handles.

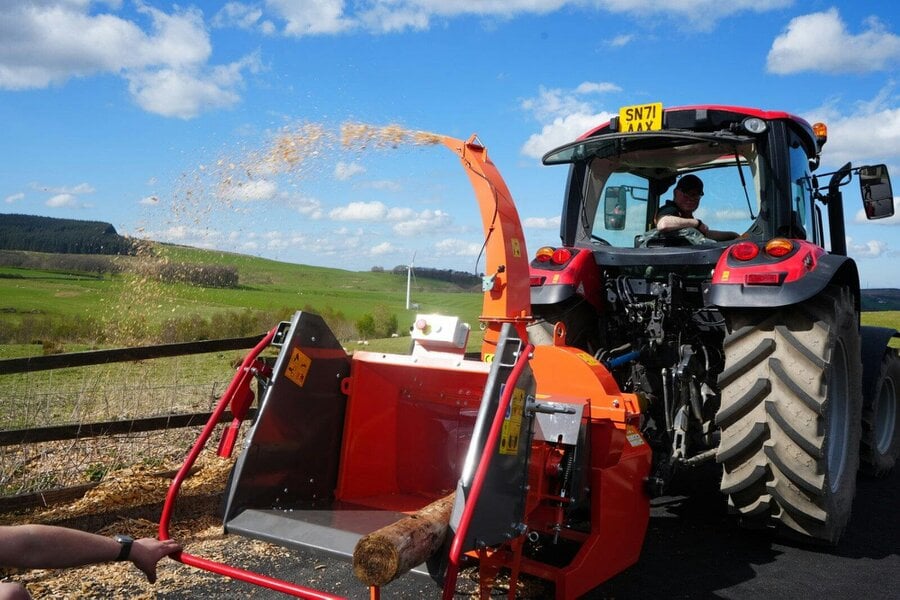

A large flywheel and 4 hardened double-sided blades work with 1 counter blade to chip timber up to 175 mm. Drive is direct via a PTO shaft with shear bolt, and the discharge chute is adjustable 290 with an adjustable ejector angle to help place chips where required. A tractor with at least 50 HP is required, and the chipper connects to a 12v electrical supply via a 7 pin plug to power the electrics.

Key features

• Updated 2025 model with new electrical system controlling the infeed rollers
• More compact design with front supports and rear chute handles
• Maximum timber dimension 175 mm
• Direct wheel drive via PTO shaft with shear bolt
• RPM 540/1000 rpm
• Double horizontal infeed motors with 180 mm and 120 mm pulleys

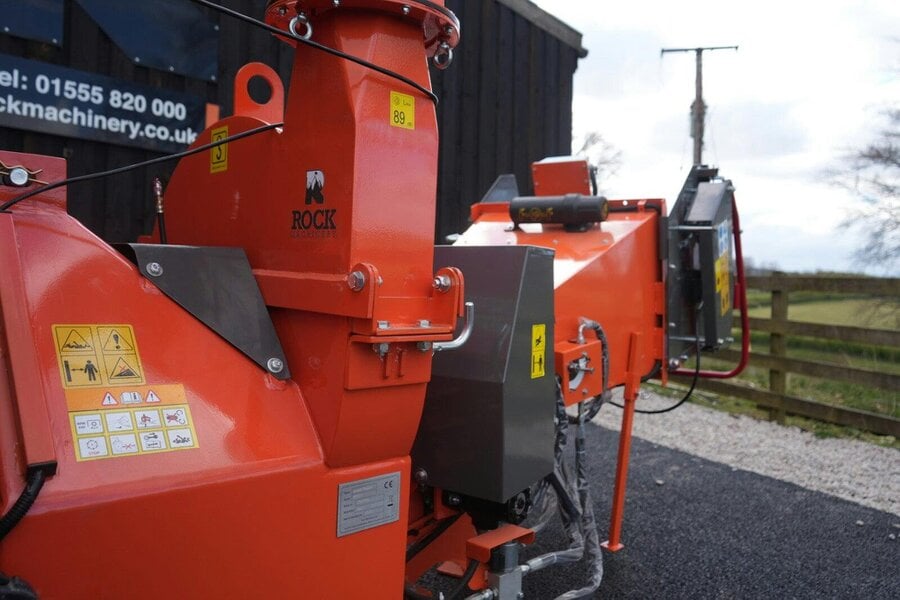

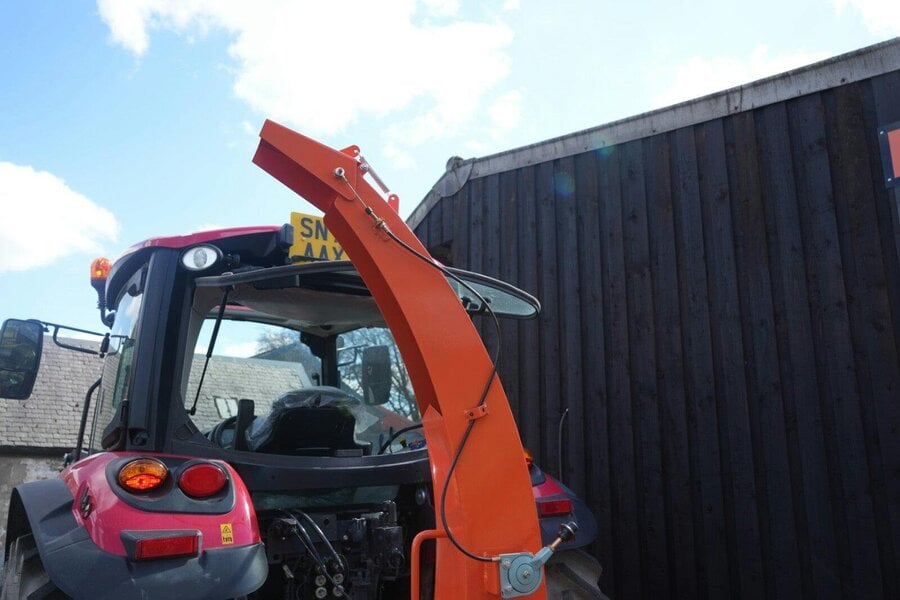

• Adjustable discharge chute 290 with adjustable ejector angle
• Requires tractor 12v electrical supply via 7 pin plug

Specifications

Dimensions and weight

• Length x width x height 2750 mm x 1630 mm x 2280 mm
• Weight 560 kg
• Ejection hopper height 2,280 mm

Capacity and cutting system

• Max. timber dimensions timber – 175 mm
• Cutting disc 740 mm (single)
• Chipping disc size 740 mm (Chipping disc weight 95 kg)

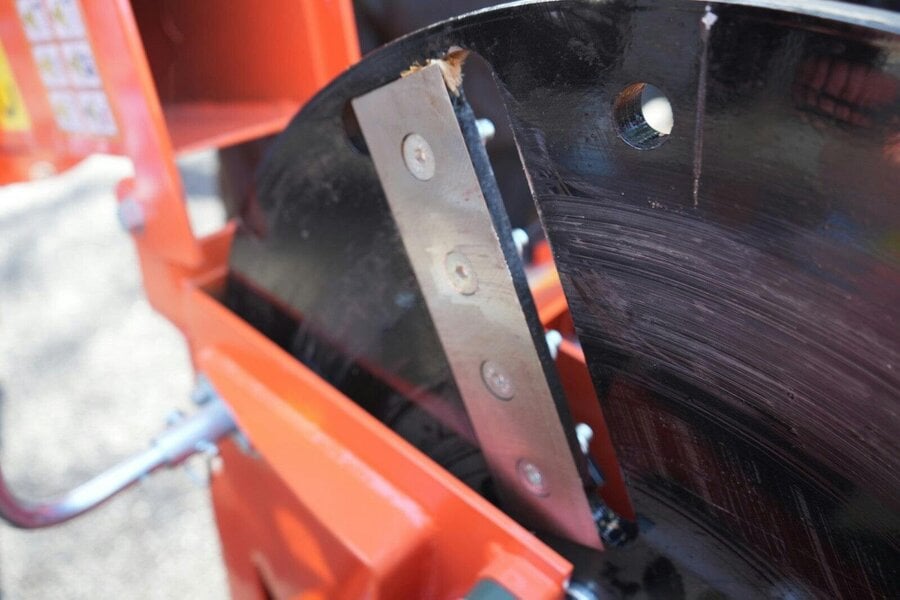

• Knife 4 hardened double-sided blades, 1 counter blade

Infeed

• Infeed dimensions 178 mm x 310 mm
• Infeed hopper next to drive rollers 180 mm x 310 mm

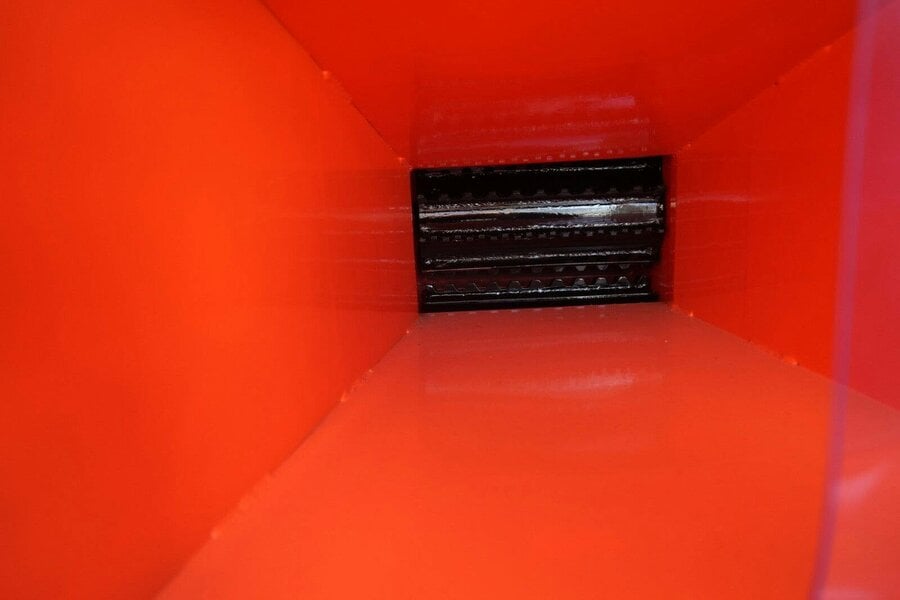

• Infeed hopper opening 660 mm x 700 mm
• Infeed system double horizontal infeed motors, large pulley: 180 mm, small pulley: 120 mm

Drive, power and hydraulics

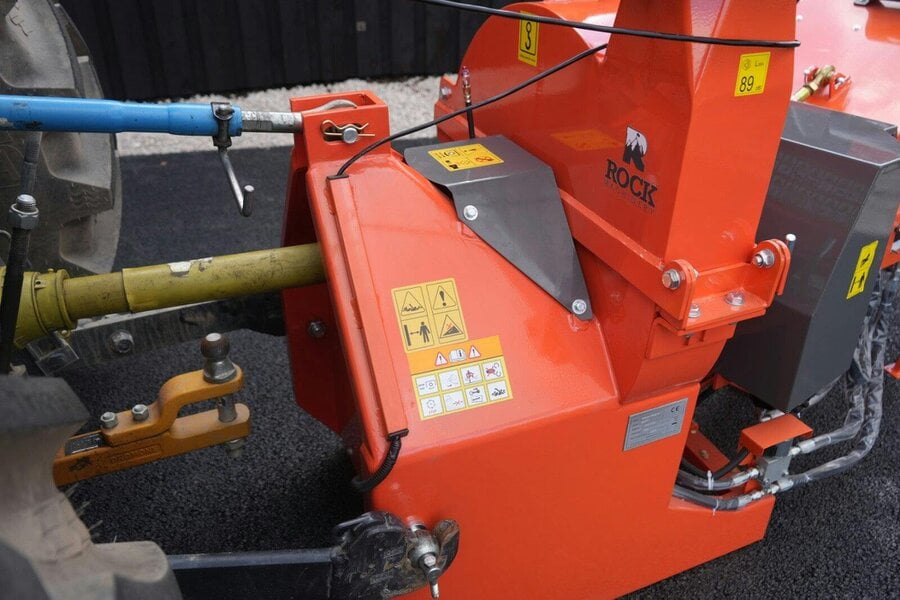

• Wheel drive direct, PTO shaft with shear bolt
• RPM 540/1000 rpm
• Power requirement 60–70 hp (45–52 kW), tractor 45–100 hp (33–75 kW)
• Hydraulic flow 13-27 l/min
• Hydraulic oil tank 24 litres

Mounting

3-point linkage Cat. 2

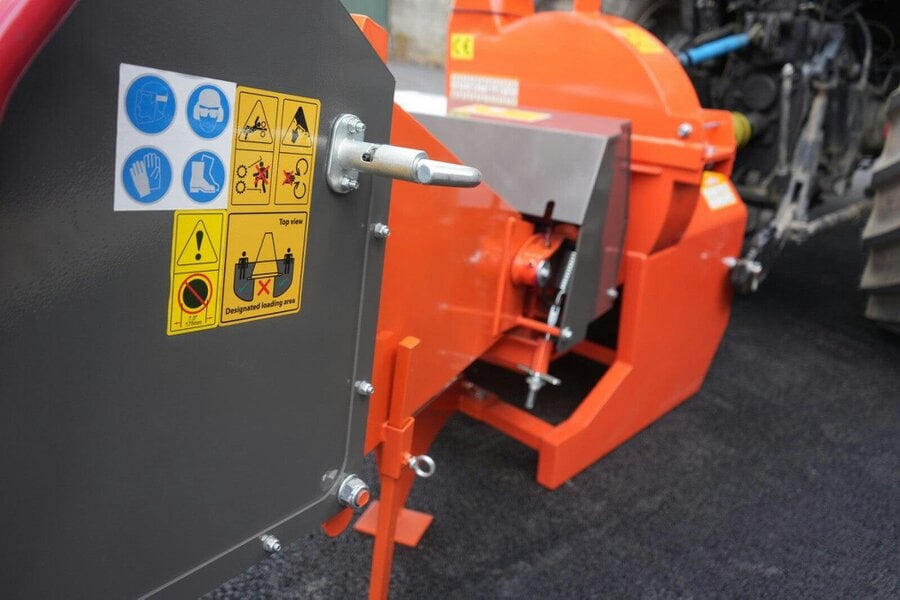

Safety information

• For this new model the tractor needs to have a 12v electrical supply as the chipper comes with a 7 pin plug to power the electrics
• This chipper is not suitable for small branches / garden waste and is designed to cope with larger branches minimum diameter 3" approx
