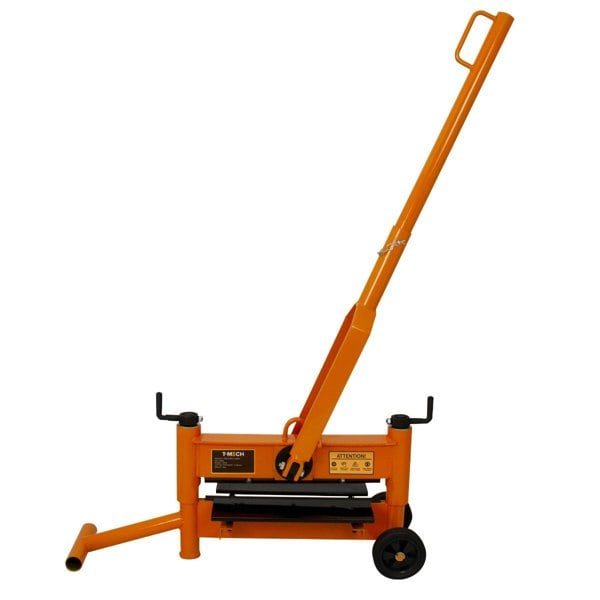

T-Mech 430mm Block Splitter

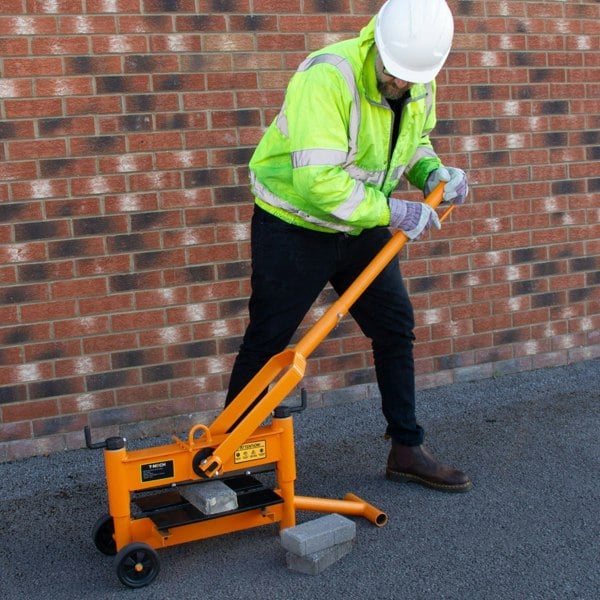

Designed for demanding site work, the T-Mech Block Splitter delivers high splitting force with minimal operating effort, helping contractors and construction workers cut blocks and paving slabs cleanly and efficiently. Fully welded and made from tough powder coated steel, it’s built for strength and durability while keeping operation straightforward and controlled.

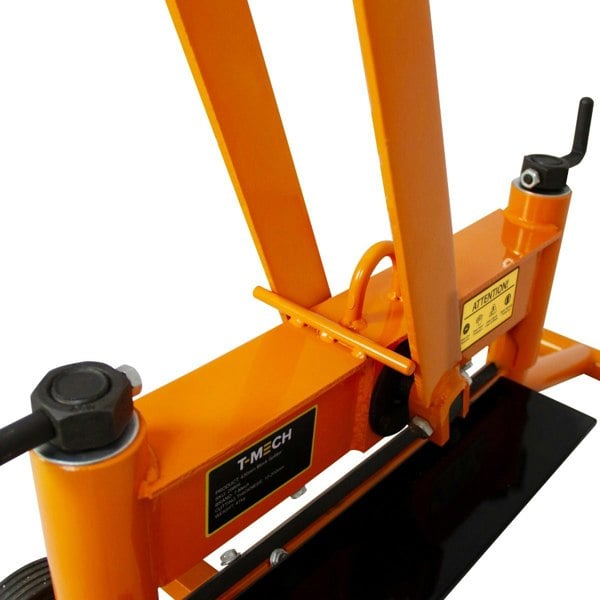

Rotatable cutting blades are fitted to both the top and bottom, with 2 x 4 edge cutting blades to support consistent results across repeated cuts. An extra-long 119cm handle provides leverage, while the spring-loaded worktable helps secure the block during use for more precise splitting. Cutting height is adjustable from 10mm to 200mm, with convenient adjustment knobs for quick set-up to suit the paving element being worked on.

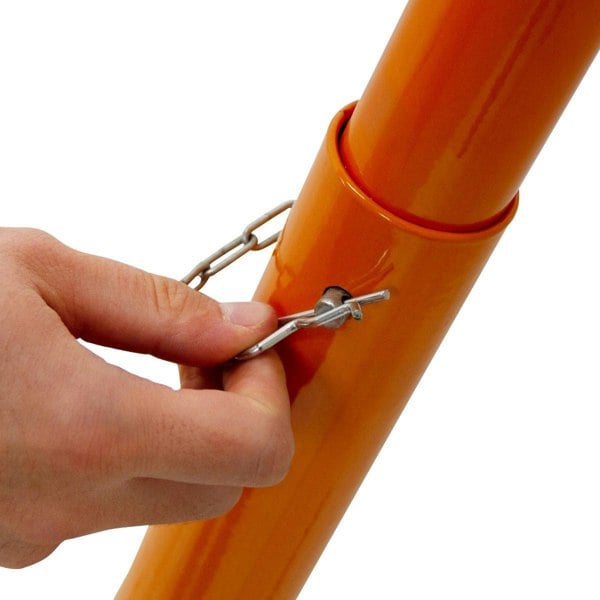

For moving around the jobsite, two heavy duty wheels support smooth manoeuvring, even over uneven surfaces, and the chassis handle shape is designed to help you lift the machine safely. When it’s time to pack away, the cutting lever can be removed for more convenient storage.

Key features

• Maximum cutting length: 430mm
• Adjustable cutting height from 10mm to 200mm
• 2 x 4 edge rotatable cutting blades fitted to top and bottom
• Extra-long 119cm handle for added leverage
• Spring-loaded worktable to help secure the block during operation
• Two heavy duty wheels for easier transportation

Specifications

• Colour: Orange
• Material: Powder coated steel
• Weight: 41kg

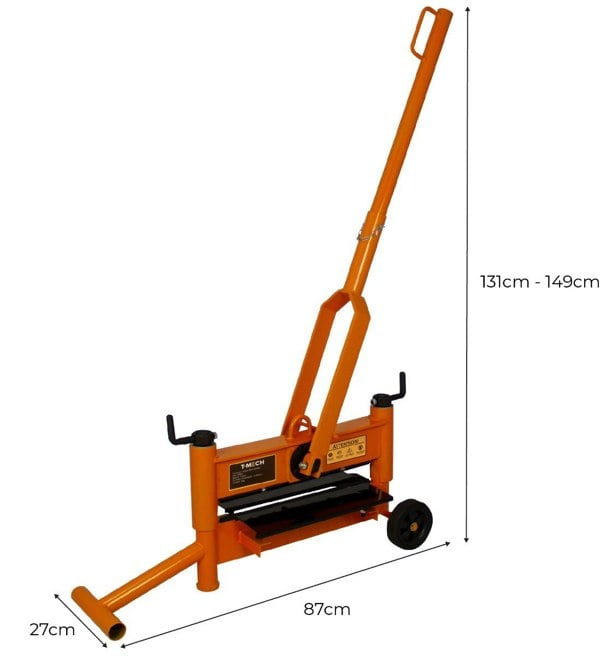

• Height: 131cm – 149cm (adjustable)
• Width: 27cm / 0.27m / 10.6”
• Depth: 87cm / 0.87m / 34.3”
• Handle length: 119cm
• Number of wheels: 2

What's included

1 x 430mm Block Splitter
