T-Mech Swing Gate Opener & Wireless Keypad

Designed to bring controlled, secure access to a wide range of entrances, the T-Mech Swing Gate Opener & Wireless Keypad is a gate automation set for residential and commercial properties. This bundle combines a swing gate opener with a wireless keypad, giving you flexible operation for different gate arrangements and day-to-day access needs.

Single or dual gate opening can be selected to suit your setup, while the auto-close function can be adjusted from 0 to 99 seconds. For added control, the system includes two remote controls with an operating distance of up to 50m, alongside a wireless keypad with pin code entry and a wall mounting kit. A flashing safety beacon is also included, and the safety cut-out responds to obstructions during opening.

Key features

• Gate opener and wireless keypad set by T-Mech
• Suitable for single or dual gate opening
• Adjustable opening and closing speed
• Auto-close function adjustable from 0 to 99 seconds
• Safety cut-out responds to obstructions during opening
• Wireless keypad control distance up to 50m
• IP55 weather protection
• Three LED indicators on the keypad with red, green and blue lights

Specifications

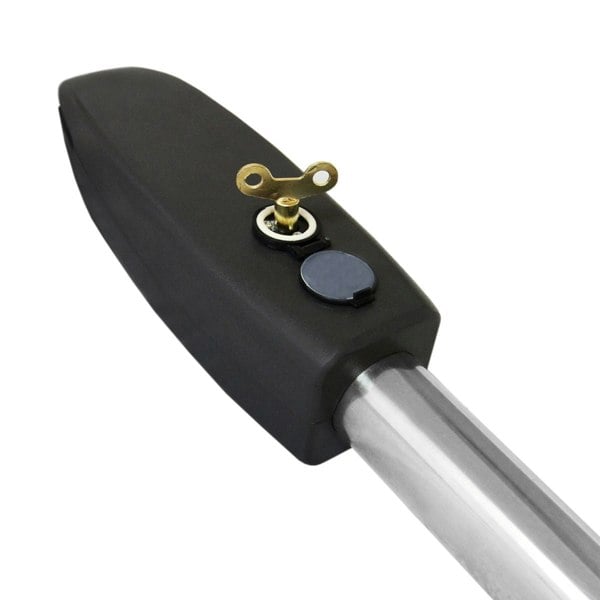

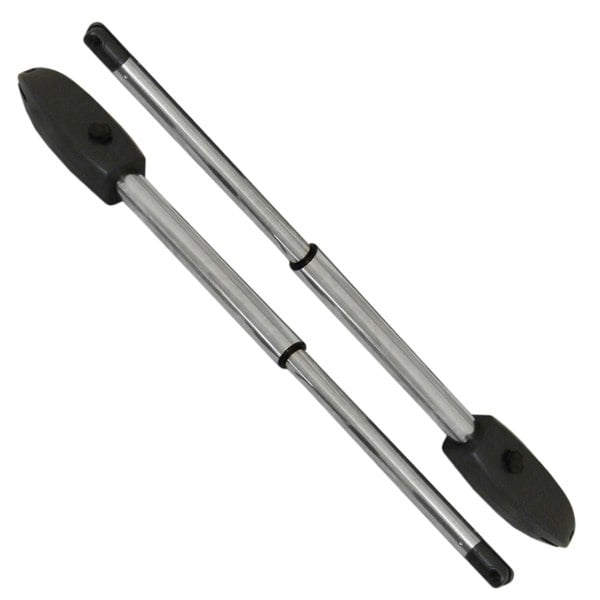

Gate opener

• Colour: Silver and black
• Weight: 15.6kg
• Motor power: 60W
• Voltage: 220V / 50-60Hz
• Remote distance: 50m
• Max gate length: 2.5m
• Max weight capacity per gate: 300kg
• Auto-close function time: 0s - 99s
• IP rating: IP55

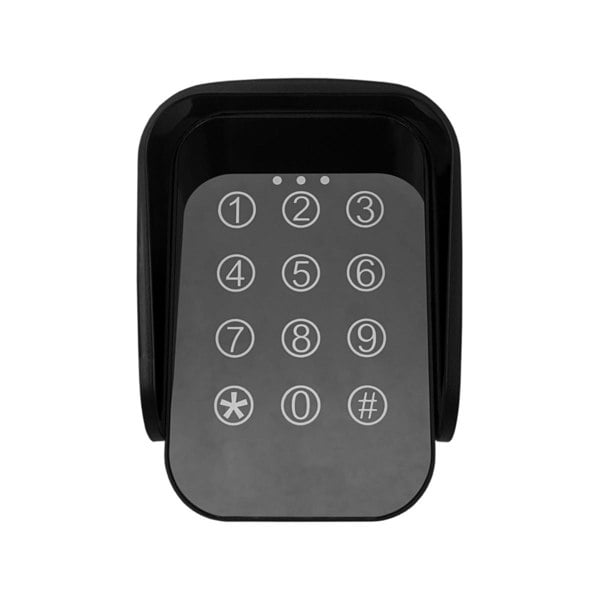

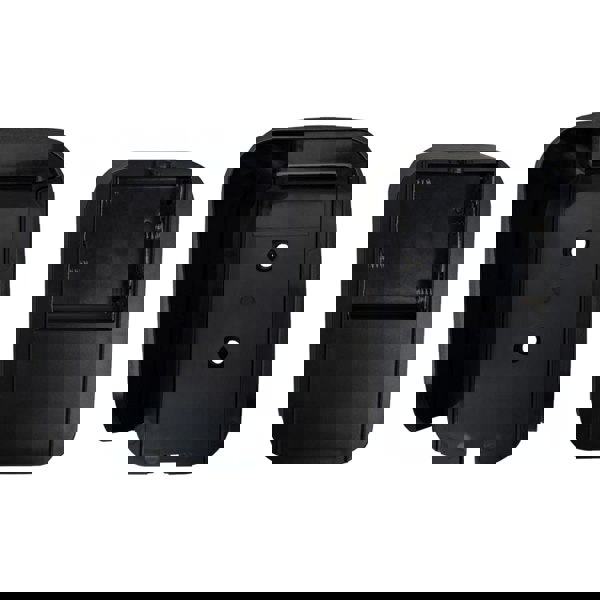

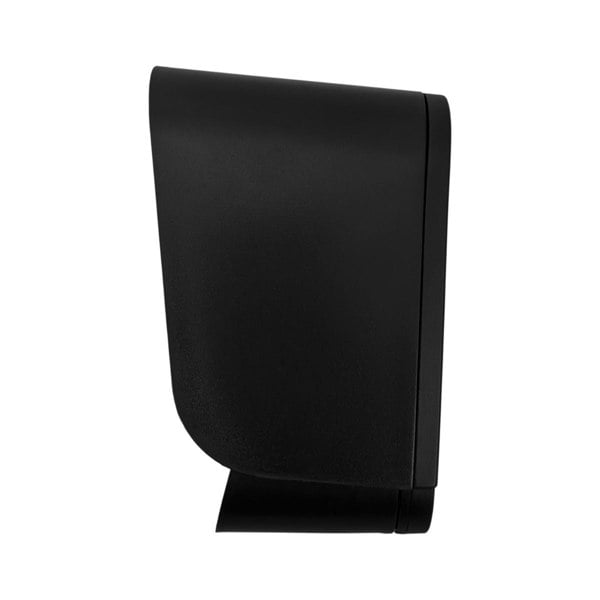

Keypad

• Colour: Black
• Material: Plastic and rubber
• Weight: 0.45kg
• Control distance: Up to 50m
• LED indicators: Red, green, blue
• Working current: 28mA
• Standby current: 18uA
• Frequency: 433.92MHz
• IP rating: IP55
• CE certified

Dimensions

• Height: 12cm / 120mm / 4.72”
• Width: 9.1cm / 91mm / 3.6”
• Depth: 7.8cm / 78mm / 3.1”

What's included

• 1 x swing gate opener
• 1 x wireless keypad

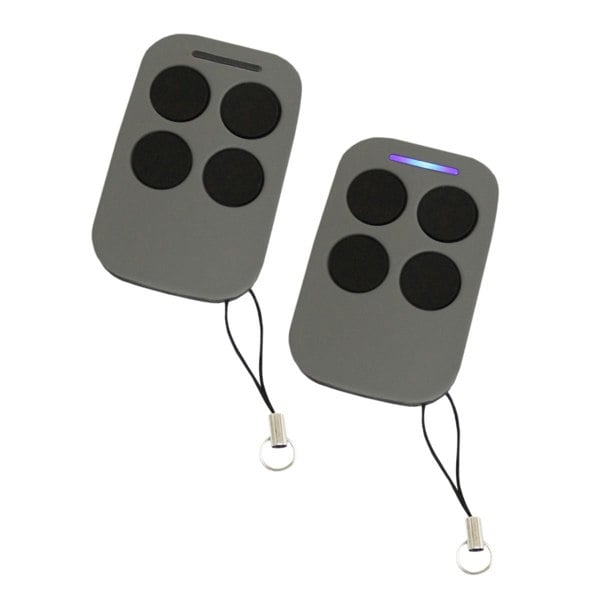

• 2 x remote controls
• 1 x flashing safety beacon

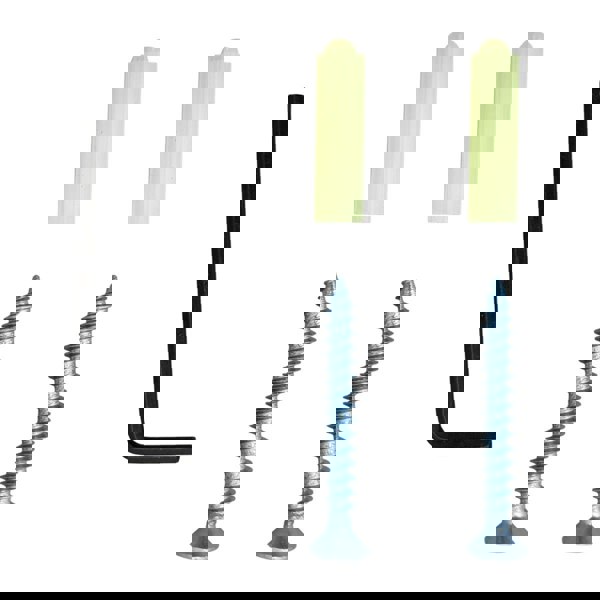

• 1 x wall mounting kit

Safety information

• The safety cut-out responds instantly to any obstruction during opening
• Maximum weight capacity per gate: 300kg

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
