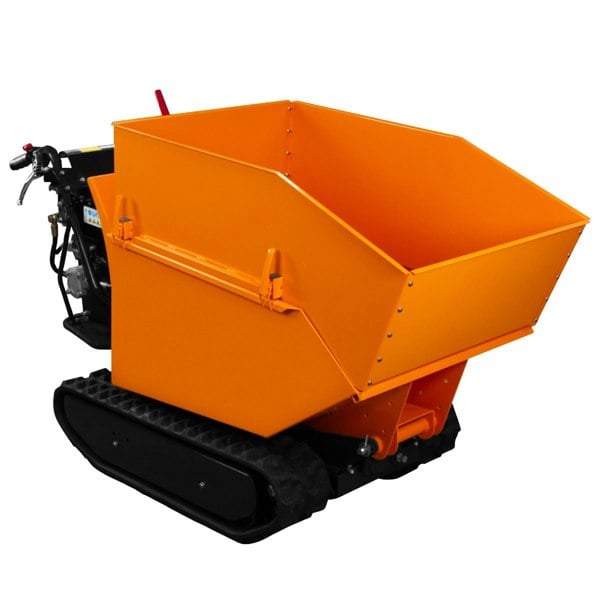

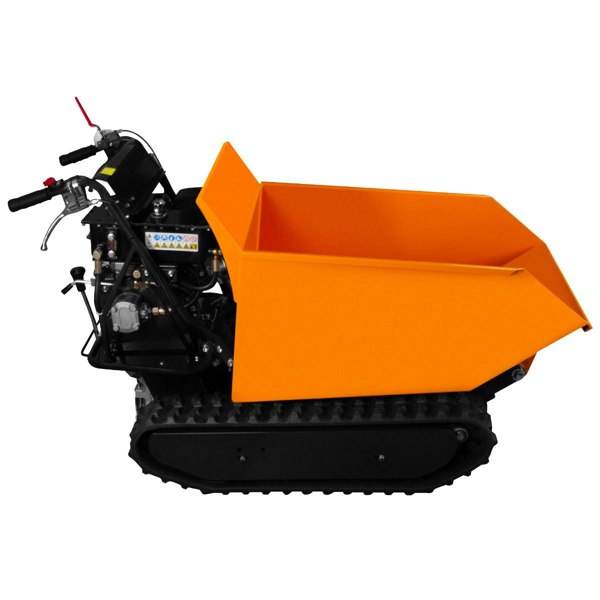

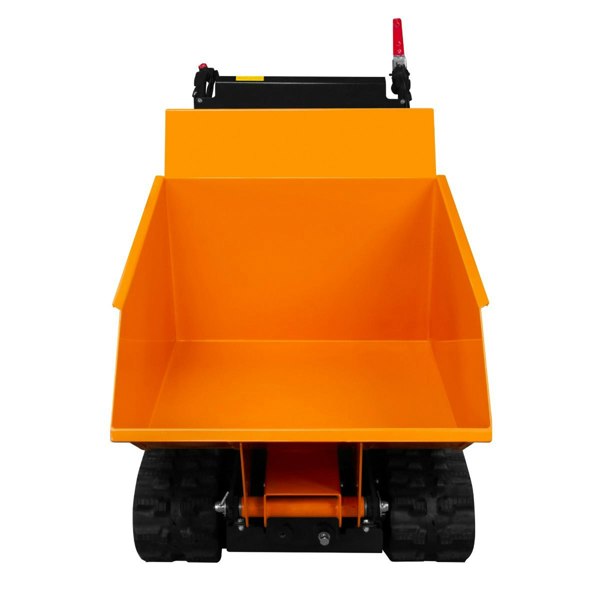

T-mech Tracked Mini Dumper Petrol Tipper

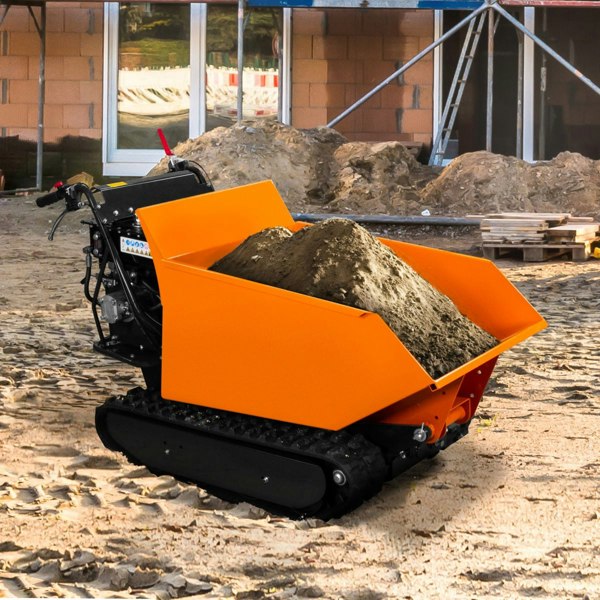

From T-mech, this tracked mini dumper petrol tipper is designed to take the strain out of moving heavy loads on site. Built for construction, landscaping and agricultural work, it helps transport materials such as soil, sand, gravel, rocks and debris, with a 500kg load capacity and a compact format suited to areas larger machinery can’t reach.

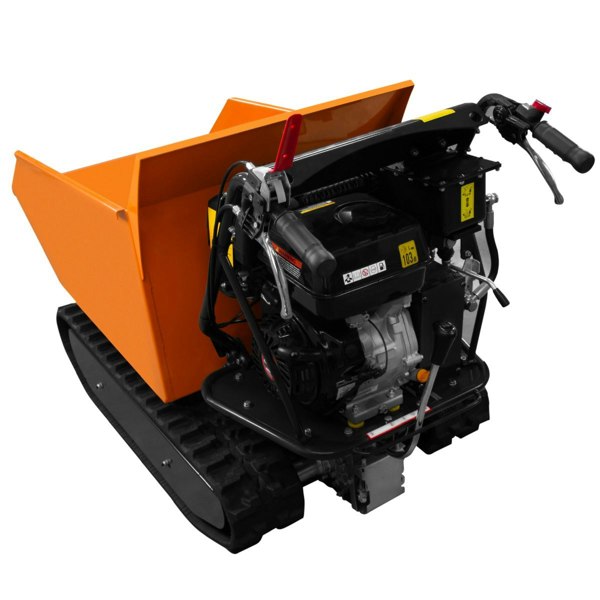

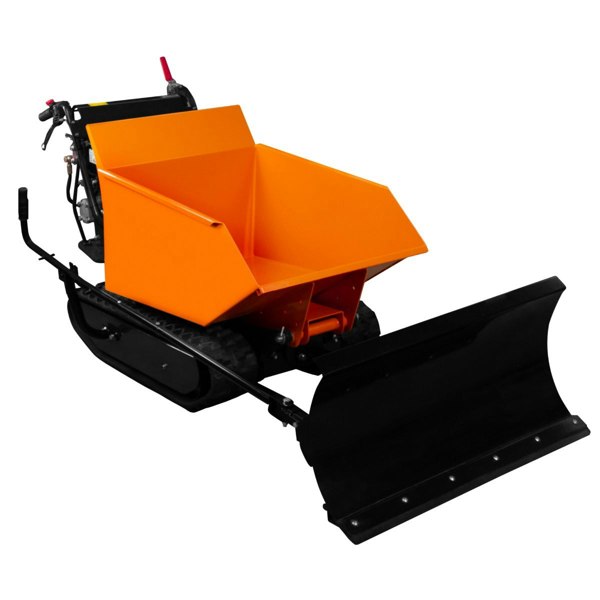

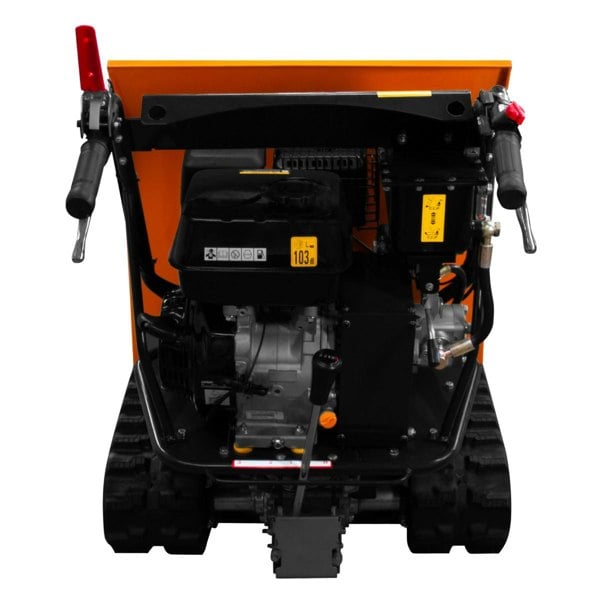

A hydraulic pump powers the tipping action via the handle, allowing the load to be discarded with minimal effort. All-terrain tracks (18cm wide) are intended to handle varied ground conditions and steep slopes, while steering levers and a speed throttle integrated into the handlebars support controlled manoeuvring. Power comes from a 9HP 270cc petrol engine with a recoil starting system and a simple engine switch, plus a 4-speed gearbox (3 forward and 1 reverse) to suit direction, load and terrain. For winter use, the included snow shovel attachment is designed to clear driveways and paths, and mounting accessories allow quick installation.

Key features

• 500kg load capacity
• Hydraulic pump-powered tipping handle

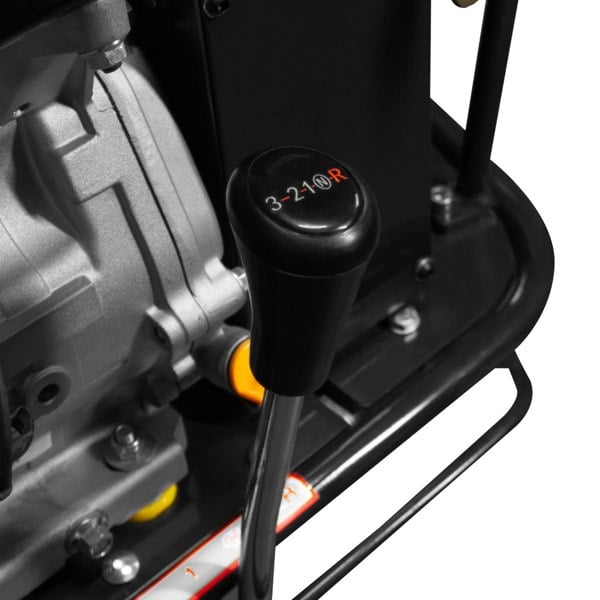

• 4-speed gearbox with 3 forward gears and 1 reverse

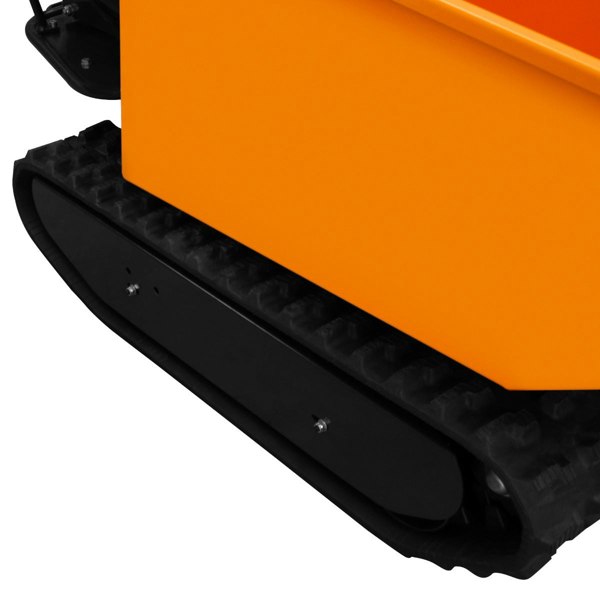

• 18cm wide all-terrain tracks
• Recoil starting system with engine switch
• Steering levers and speed throttle integrated into the handlebars
• Automatic brake

Sizing

• Dump box: 100cm L x 70cm W x 45cm H

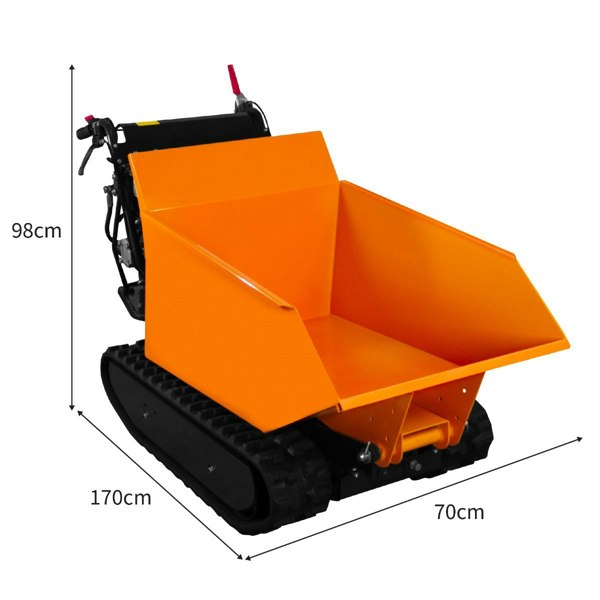

• Overall: 170cm D x 70cm W x 98cm H
• Extension box: 107cm D x 70cm W x 40cm H
• Dump box height with extension: 85cm
• Track width: 18cm

Specifications

• Colour: Orange
• Material: Steel
• Weight: 275kg
• Engine: 4 stoke 270cc petrol
• Power: 9HP
• Petrol tank capacity: 6L
• Engine oil capacity: 1.1L
• Hydraulic tank capacity: 4.5L
• Maximum pressure: 200 BAR
• Sound output: 103 dB
• CE certificate: Yes

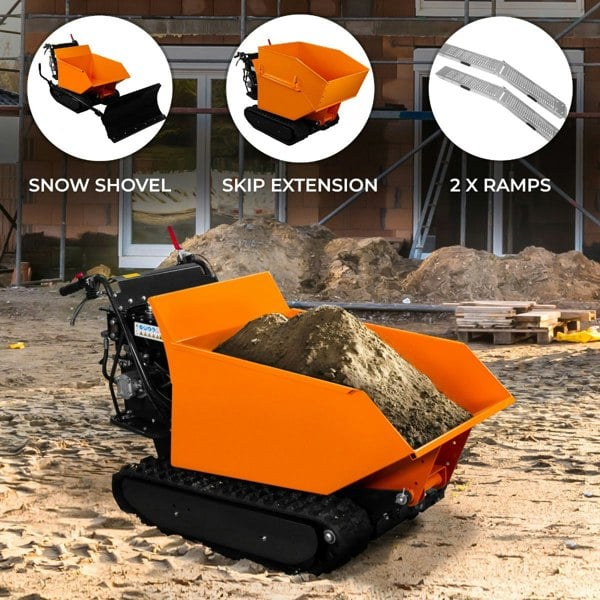

What's included

• 1 x Mini tracked petrol tipper
• 2 x Sturdy steel ramps
• 1 x Effective snow shovel
• 1 x Practical dump box extension

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
