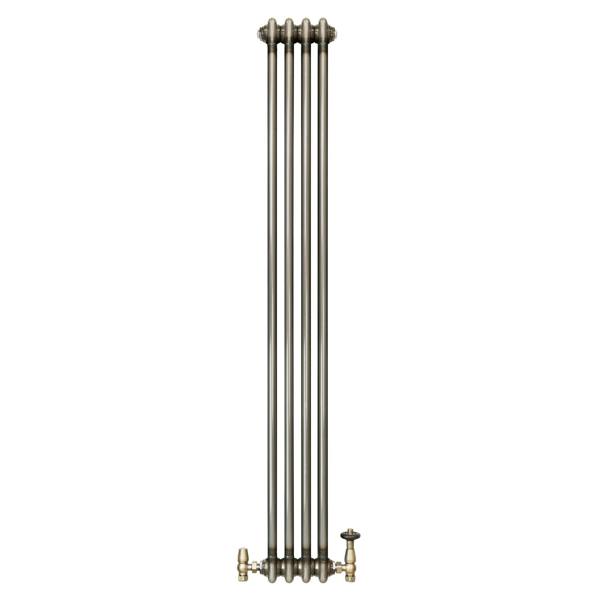

Traditional 2 Column Radiator & Valves - 1500 x 200mm - Raw Metal

From MonsterShop, this traditional-style vertical radiator brings an industrial raw metal finish into the home while offering a compact footprint for narrower wall spaces. Designed with a 2 column profile and a lacquer-coated raw metal look, it creates a distinctive focal point while delivering dependable heat output for everyday comfort.

Made from 1.5mm carbon steel, the radiator is engineered for reliable use and supplied with an angled thermostatic valve set for straightforward temperature control. The rotary knob allows adjustment from 6–28C, while the lockshield valve helps regulate water flow within your heating system. With standard 0.5" BSP inlet and outlet compatibility, it is suitable for all UK and EU heating systems. A flexible cleaning brush is also included to help maintain the finish over time.

Key features

• Raw metal finish with lacquer coating
• 1.5mm carbon steel construction
• 2048 BTU heat output at 60
• 2 column vertical design
• 25mm steel tubes
• Angled thermostatic valve set with rotary knob control
• Temperature adjustment range from 6–28C
• 15-year radiator guarantee

Specifications

• Material: 1.5mm carbon steel
• Valve material: Powder coated brass
• Weight: 9.2kg
• Radiator depth: 68mm
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Number of columns: 4
• BTU rating @ 50: 1628
• Watt rating @ 50: 477
• Watt rating @ 60: 599
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 3.2m²
• Heating surface area: 0.96m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Compatibility: All UK and EU heating systems
• Testing: BS EN 442 and ISO9001:2015 standards
• Certification: CE and UKCA
• Valve style: Angled
• Valve type: Thermostatic
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Valve guarantee: 10 years

Sizing

• 1500mm H x 200mm W
• Height: 1500mm / 150cm / 59.1”
• Width: 200mm / 20cm / 7.9”
• Individual tube size: 25mm / 2.5cm / 1”
• Distance from wall to centre of inlet: 58mm / 5.8cm / 2.3”
• Valve-to-valve height: 1424mm / 142.4cm / 56.1”
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 2 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : JIBSHIDC51
