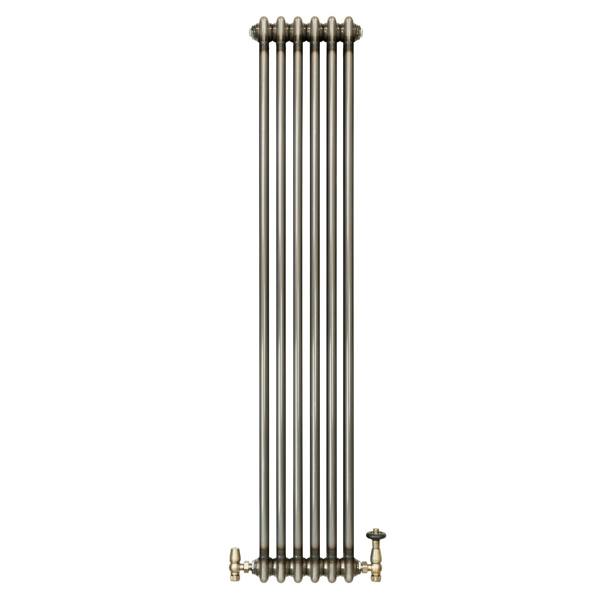

Traditional 2 Column Radiator & Valves – 1500mm x 290mm - Raw Metal

From MonsterShop, this traditional 2 column vertical radiator brings an industrial edge to everyday heating. Finished in raw metal with a lacquer coating, it is designed to stand out while fitting neatly into a range of interiors, from more classic schemes to contemporary spaces.

Made from 1.5mm carbon steel, the radiator combines a tall, slim profile with practical heat output for smaller rooms and compact areas. Its vertical format offers flexible placement, while the supplied thermostatic valve set allows for straightforward temperature adjustment through a rotary knob. An angled valve configuration and integrated lockshield valve support controlled water flow, and the included cleaning brush helps keep the finish looking its best over time.

Key features

• Raw metal finish with lacquer coating
• Made from 1.5mm carbon steel
• 2 column vertical design with 25mm steel tubes
• 3067 BTU heat output at 60
• Standard 0.5" BSP inlet and outlet
• Supplied with an angled thermostatic valve set and lockshield valve
• CE and UKCA certified, tested to BS EN 442 and ISO9001:2015 standards
• 15-year radiator guarantee

Specifications

• Material: Powder coated brass valves
• Weight: 13.5kg radiator
• Weight: 0.9kg valves
• Number of columns: 6
• BTU rating at 50: 2442
• Watt rating at 50: 716
• Watt rating at 60: 899
• Max working temperature: 95C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 4.8m²
• Heating surface area: 1.43m²
• Compatibility: All heating systems
• Valve type: Thermostatic
• Valve style: Angled
• Control style: Rotary knob
• Temperature range: 6–28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Valve guarantee: 10 years

Sizing

• 1500mm H x 290mm W
• Radiator depth: 68mm
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 1424mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 2 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
