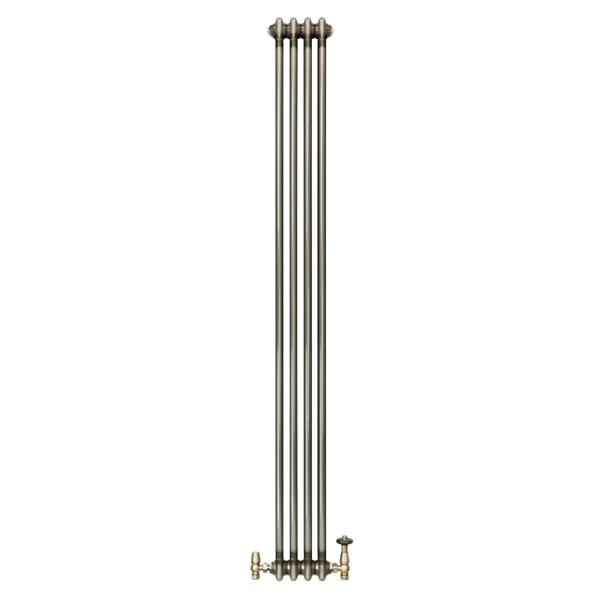

Traditional 2 Column Radiator & Valves - 1800 x 200mm - Raw Metal

From MonsterShop, this Traditional 2 Column Radiator and Valves set brings an industrial raw metal finish to a vertical heating design that suits both classic and more contemporary interiors. Its tall, narrow proportions make it a practical choice for spaces where wall width is limited, while the exposed metal look adds character and depth to the room.

Made from 1.5mm carbon steel with a lacquer coating, the radiator is designed for reliable everyday heating performance. It features steel tubes measuring 25mm and is supplied with an angled thermostatic valve set for straightforward temperature adjustment. The rotary knob offers a 6–28C range, while the integrated lockshield valve helps regulate water flow. With fixtures and fittings included, along with a flexible cleaning brush, it is equipped for installation and ongoing maintenance.

Key features

• Raw metal finish with lacquer coating
• 1.5mm carbon steel construction
• 2440 BTU heat output at 60
• Angled thermostatic valve set with rotary knob control
• Adjustable temperature range from 6–28C
• CE and UKCA certified
• BS EN 442 and ISO9001:2015 tested
• 15-year radiator guarantee

Specifications

• Weight: 10.8kg
• Number of columns: 4
• BTU rating at 50: 1940
• BTU rating at 60: 2440
• Watt rating at 50: 569
• Watt rating at 60: 715
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 3.8m²
• Heating surface area: 1.14m²
• Inlet and outlet size: Standard 0.5" BSP bore
• Compatibility: All heating systems
• Valve material: Powder-coated brass
• Valve weight: 0.9kg
• Valve type: Thermostatic
• Valve style: Angled
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Valve guarantee: 10 years

Sizing

• Radiator: 1800mm H x 200mm W
• Radiator depth: 68mm
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 1724mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x Traditional 2 Column Radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
