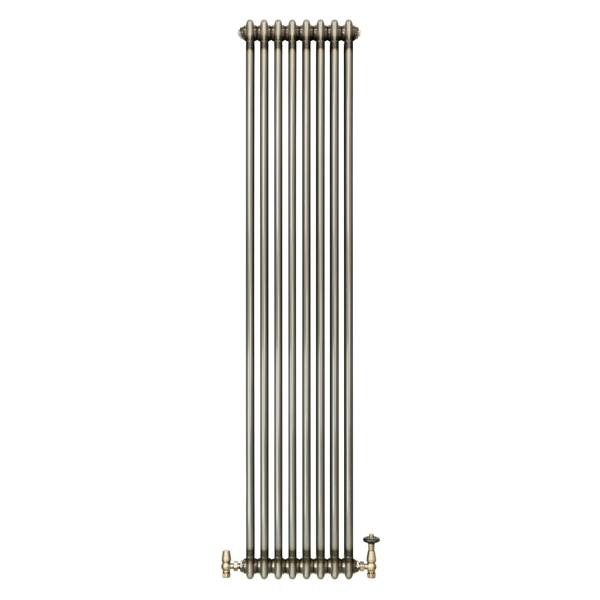

Traditional 2 Column Radiator & Valves – 1800mm x 380mm - Raw Metal

From MonsterShop, this traditional 2 column radiator and valve set brings together an industrial raw metal finish with a tall, space-conscious vertical design. Made from 1.5mm carbon steel and finished with a lacquer coating, it is designed to add character to a room while delivering dependable heat output for everyday home heating.

At 1800mm high and 380mm wide, the radiator suits a range of interior spaces where vertical placement is preferred. Its 8-column construction uses 25mm steel tubes, while the supplied angled thermostatic valve set allows for straightforward temperature adjustment through a rotary knob. A lockshield valve is also included to help regulate water flow. With CE and UKCA certification, BS EN 442 and ISO9001:2015 testing, and a 15-year guarantee for the radiator, it is a considered choice for those looking to combine practical heating with a more distinctive finish.

Key features

• Raw metal finish with lacquer coating
• 2 column vertical design with 8 columns
• Made from 1.5mm carbon steel
• Heat output of 4872 BTU at 60 and 3881 BTU at 50
• Supplied with an angled thermostatic valve set and lockshield valve
• Includes 4 secure brackets, a fixing kit and a flexible cleaning brush
• Standard 0.5" BSP inlet and outlet
• Compatible with all UK and EU heating systems

Specifications

• Maximum working temperature: 95C
• Maximum working pressure: 10 Bar
• Test pressure: 13 Bar
• Watt rating at 50: 1137
• Watt rating at 60: 1428
• Recommended application area: 7.6m²
• Heating surface area: 2.29m²
• Testing: BS EN 442 and ISO9001:2015 standards
• Certification: CE and UKCA
• Valve material: Powder coated brass
• Valve type: Thermostatic
• Valve style: Angled
• Control style: Rotary knob
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Sizing

• Radiator: 1800mm H x 380mm W x 68mm D
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 1724mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x Traditional 2 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set
