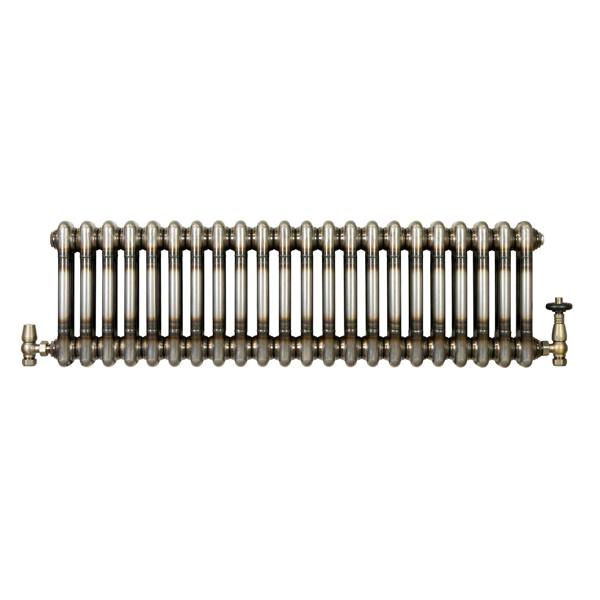

Traditional 2 Column Radiator & Valves – 300mm x 1010mm - Raw Metal

From MonsterShop, this traditional 2 column horizontal radiator and valve set brings an industrial raw metal finish to everyday heating. Designed to sit neatly across a range of interiors, it combines a bold, characterful look with practical performance, making it well suited to living spaces, hallways and other rooms where both warmth and visual impact matter.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 22 columns and 25mm steel tubes. It is engineered for reliable heat output, with a thermostatic angled valve set included for straightforward temperature adjustment. The rotary knob offers a 6–28C range, while the lockshield valve helps regulate water flow. With standard 0.5" BSP inlet and outlet sizing, this set is compatible with all UK and EU heating systems. A flexible cleaning brush is also included to help maintain the finish over time.

Key features

• Raw metal finish with lacquer coating
• 1.5mm carbon steel construction
• 22-column horizontal design
• 2614 BTU heat output at 60
• Angled thermostatic valve set with rotary knob control
• Temperature range from 6–28C
• CE and UKCA certified, tested to BS EN 442 and ISO9001:2015 standards
• 15-year radiator guarantee

Specifications

• Valve material: Powder coated brass
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Connection: 1/2" x 15mm
• Nominal flow rate: 2.8L/m
• Maximum flow temperature: 100 degrees
• Valve guarantee: 10 years

Sizing

• Radiator: 1010mm W x 68mm D x 300mm H
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 324mm
• TRV: 85mm W x 55mm D x 137mm H
• Lockshield: 75mm W x 34mm D x 87mm H

What's included

• 1 x Traditional 2 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
